Warrior 1800X

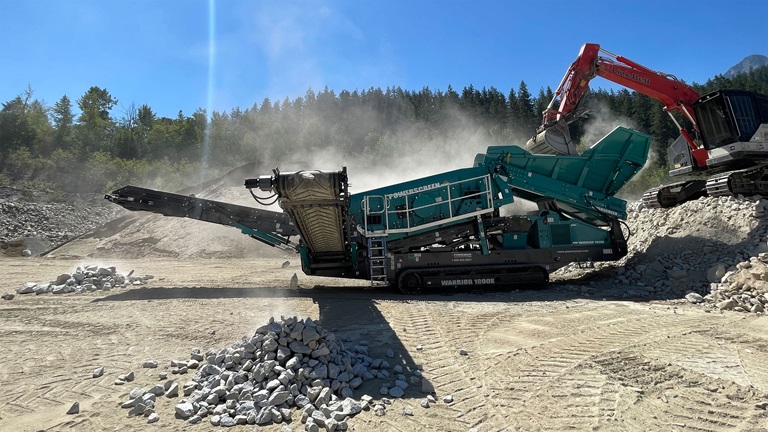

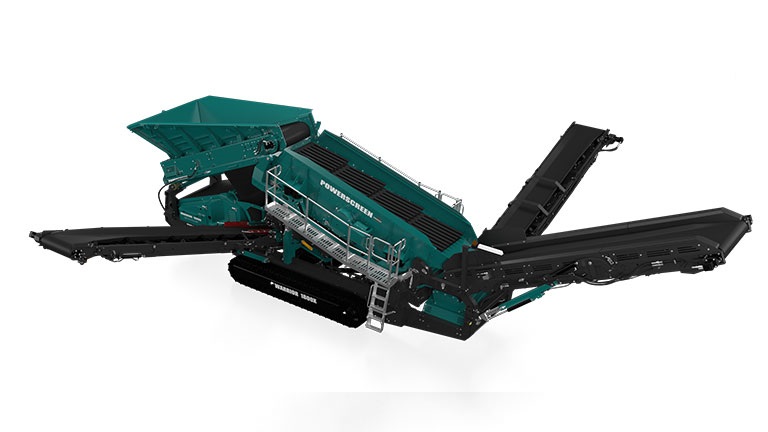

The Powerscreen® Warrior 1800X is a revolutionary mobile scalping screen that has been designed for medium to large operators, where high capacity and throughput are paramount.
This tough, heavy duty machine has the ability for screening, 2 or 3 way splitting and stockpiling in quarrying, recycling, C&D aggregates and top soil applications.
Feeder/Hopper
- 1300mm (52”) heavy duty belt feeder
- Hopper capacity: 8.2m3 (10.72 cu. yd.)
Power Unit
- Engine Tier 3 Equivalent: CAT C4.4 90kW (121hp)
- Engine Tier 4F: Deutz 3.6 92kW (123hp)
- Stage V: Deutz 3.6 92kW (123hp)
Screenbox
- Heavy duty 4.88m x 1.56m (16’ x 5’ 1’’) 2 deck
- Highly aggressive screen drive
Tail Conveyor (Oversize):
- Width: 1400mm (56”)
- Stockpile Height:4.2m (13’ 9”)

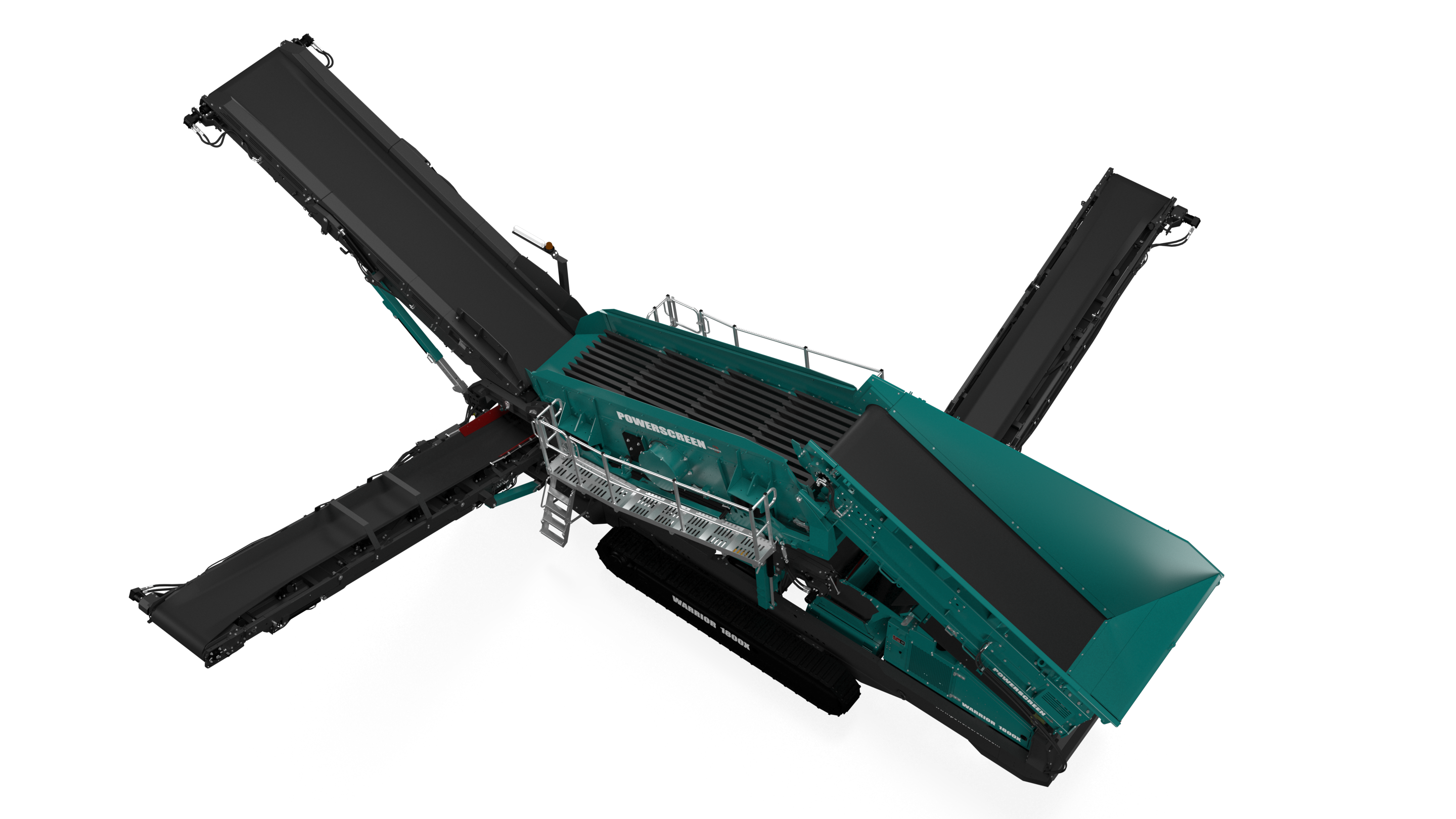

Side Conveyor (Finesize)
- Width: 900mm (36”)
- Stockpile Height: 4.08m (13’ 5”)
Side Conveyor (Midsize)
- Width: 900mm (36”)
- Stockpile Height: 3.81m (12’ 6”)
Technical Documentation
Measurements
Transport Width
9 ft 9 in
2 m 97 cm
Transport Length
52 ft 5 in
15 m 99 cm
Working Height
15 ft 9 in
4 m 79 cm
Working Length
52 ft 10 in
16 m 10 cm
Transport Height
11 ft 3 in
3 m 43 cm
Working Width
44 ft 7 in
13 m 59 cm
Productivity
Output Potential
689 US tph
625 tph
