Warrior 800

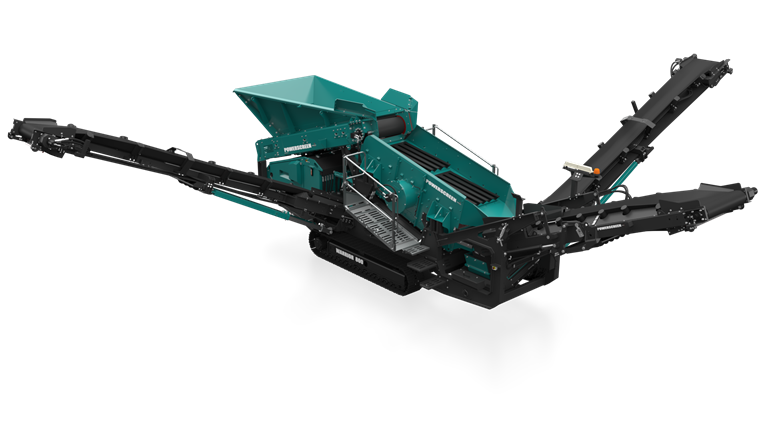

The Powerscreen® Warrior 800 has been specifically designed for the small end user for whom versatility and transportability are of key importance. The machine is a multi-purpose heavy duty incline 2 deck screen, capable of stockpiling, 3 way splitting or scalping before and after crushing units. Its highly aggressive screen can accept bofor bars, finger screens, woven mesh and punch plates.
User benefits include a rapid set-up time and ease of operation aided by hydraulic folding tail and side conveyors, rigid feed hopper sides and two speed tracks. Simplified slide out tail conveyor facilities aid media access and screen media changes.

Feeder/Hopper:
- 1050mm (42”) heavy duty belt feeder
- Hopper capacity: 2.9m3 (3.8 cu. yd.)
Power Unit
- Engine Tier 3 Equivalent: CAT C4.4 (62kW (83hp)
- Engine Tier 4F: Cat C2.2 55kW (74hp)
- Engine Stage V: Kohler 2.5 55kW (73hp)
Tail Conveyor (Oversize)
- Width: 1050mm (42”)
- Stockpile Height: 3.03m (9’ 11”)
Side Conveyor (Finesize)
- Width: 650mm (26”)
- Stockpile Height: 3.82m (12’ 7”)
Side Conveyor (Midsize)
- Width: 650mm (26”)
- Stockpile Height: 3.64m (11’ 11”)
Screenbox
- Heavy duty 2.77m x 1.22m (9’ x 4’) 2 deck screen
- Highly aggressive screen drive
Technical Documentation
Measurements
Productivity
- Output potential up to 280 tph (308 US tph)
- Variable speed hopper featuring impact bars, rigid hopper and rollers
- Folding rear hopper wall for direct feeding
- Robust, heavy duty, fixed angle 2 bearing, 2 deck screen
- Hydraulic folding and extending tail conveyor with slide out facility allowing maximun bottom deck access.

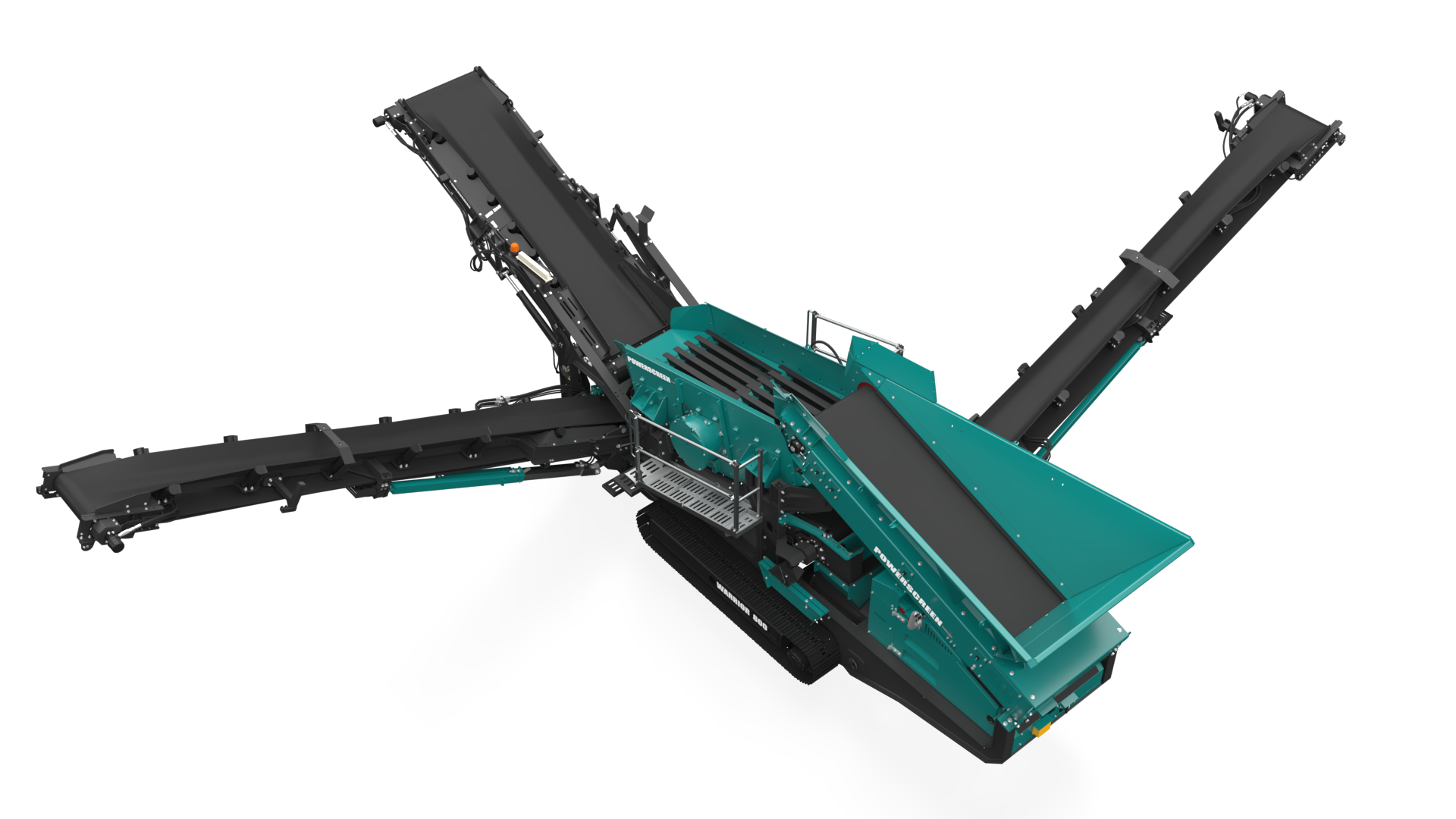

- Hydraulic folding conveyors with excellent stockpiling capacity
- Radio controlled tracking
- Screen walkway
- Screen blanket
- Auto lubrication system
- Dust suppression
- Plain/chevron belt conveyors
- Screen walkway
- Hopper extensions
- Quick release screen wedge tensioning
- Wide range of screen media
