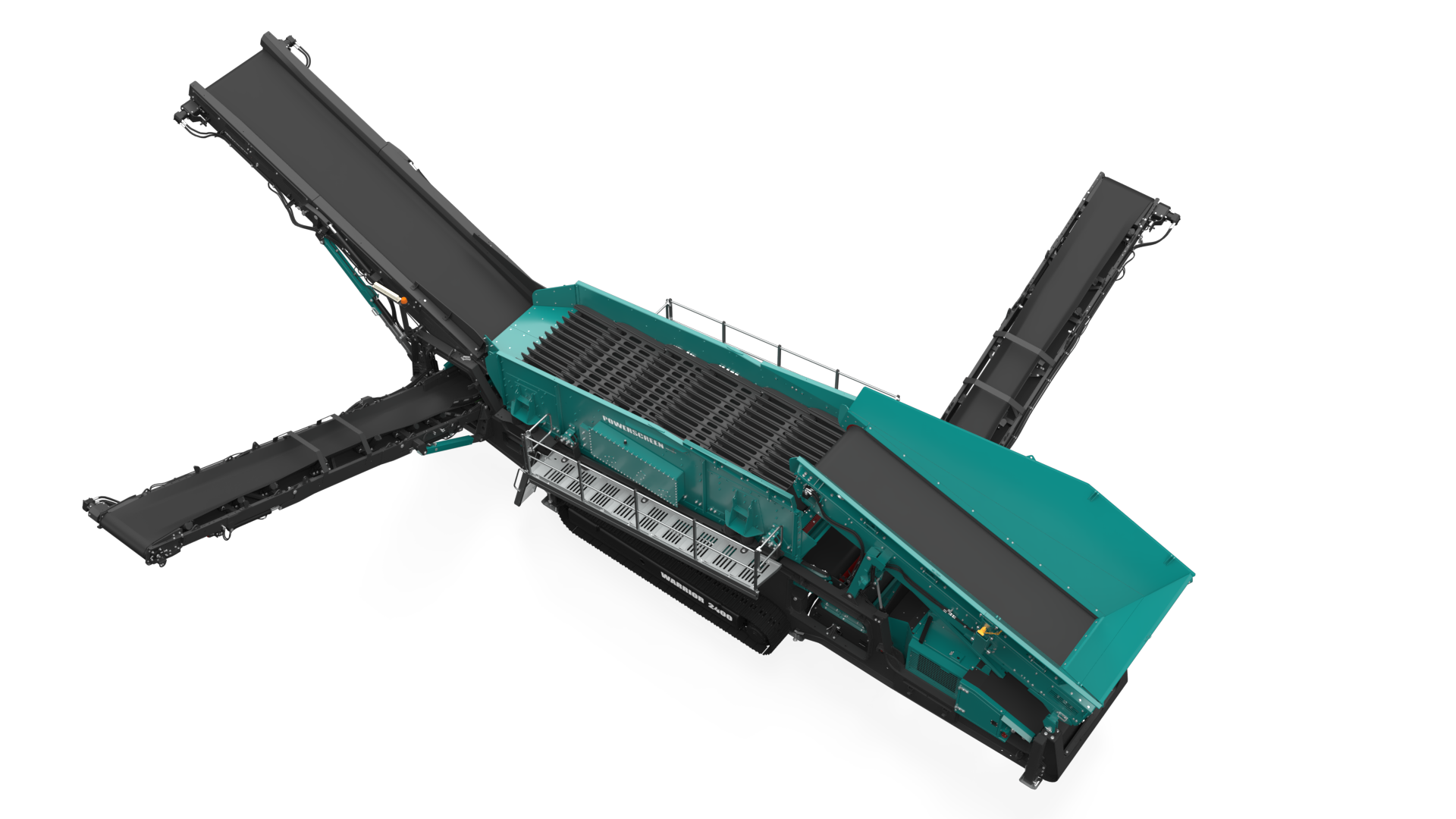

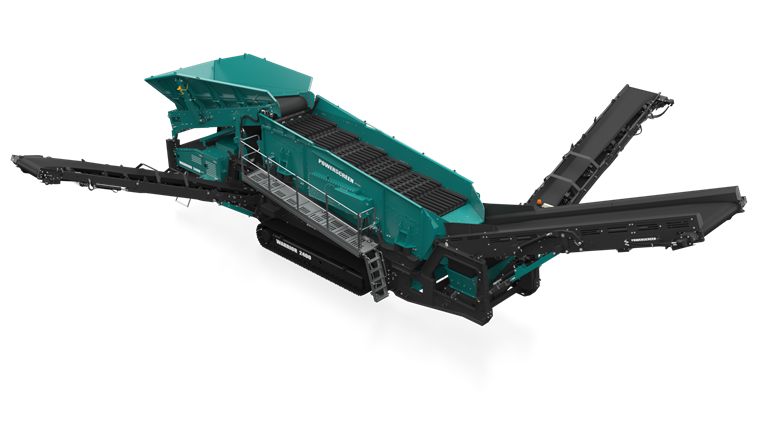

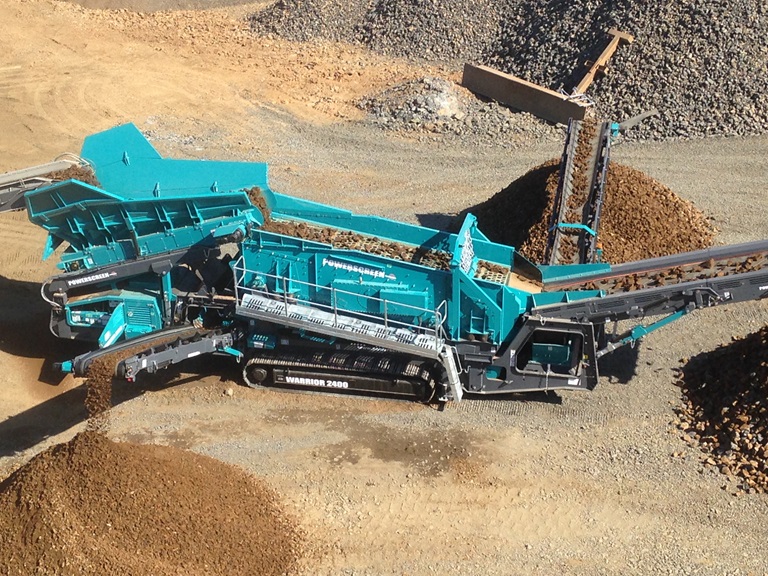

Warrior 2400
Specially designed for large scale operators in the quarrying and mining sectors, the Powerscreen® Warrior 2400 is capable of handling larger feed sizes and throughputs. It features a heavy duty incline screen with a high amplitude triple shaft drive mechanism, lending it to screening, scalping, 2 or 3 way splitting and stockpiling materials like aggregates, topsoil, coal, construction, demolition waste and iron ore.
User benefits include a slide out tail conveyor facility to aid media access and a load sensing collection conveyor circuit to avoid blockages.
Feeder/Hopper
- 1300mm (52”) heavy duty belt feeder
- Hopper capacity: 10m3 (13 cu. yd.)10m3 (13 cu. yd.)10m3 (13 cu. yd.)10m3 (13 cu. yd.)10m3 (13 cu. yd.)
Power Unit
- Engine Tier 3 Equivalent: CAT C7.1 LRC 151 kW (202hp)
- Engine Tier 4F / Stage V: CAT C7.1 LRC 151 kW (202hp)
Screenbox
- Heavy duty 6.1m x 1.93m (20’ x 6’ 4”) 2 deck incline screen
- Highly aggressive screen drive

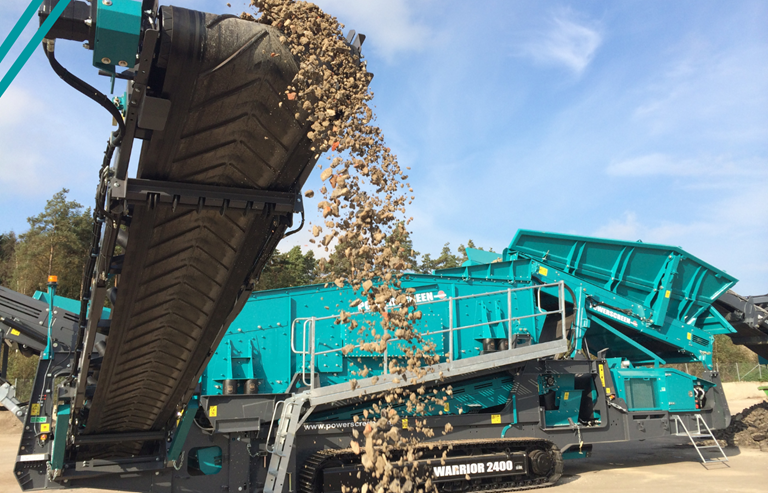

Tail Conveyor (Oversize):
- Width: 1600mm (64”)
- Stockpile Height: 145m3 (189 cu. yd.)
Side Conveyor (Finesize)
- Width: 900mm (36”)
- Stockpile Height: 4.11m (13’ 6”)
Side Conveyor (Midsize)
- Width: 900mm (36”)
- Stockpile Height: 103m3 (135 cu. yd.) s
Technical Documentation
Measurements
Productivity
- Hopper extensions
- Wide range of screen media
- Screen chain blanket
- Auto lubrication system
- 2 or 3 way split configurations
- Roll-in bogie (tri-axle)
- Radio controlled tracking
- Dual power (additional electric hydraulic drive)
- Dust suppression
- High capacity incline apron feeder
- Output potential up to 800 tph (881 US tph)
- Heavy duty, incline belt feeder with hydraulic folding hopper sides
- Hydraulic load sensing on under screen conveyor circuit & fines circuit
- Aggressive heavy duty triple shaft screen, with adjustable stroke angle
- Jack up screen facility to aid mesh changes
- Screen walkway and access steps
- Screen media interchangeable with H range products
- Jack up legs for screen levelling
- Hydraulic folding conveyors with excellent stockpiling capacity
- Heavy duty triple shaft screen box with adjustable frequency, timing & amplitude
