Scalping Screens

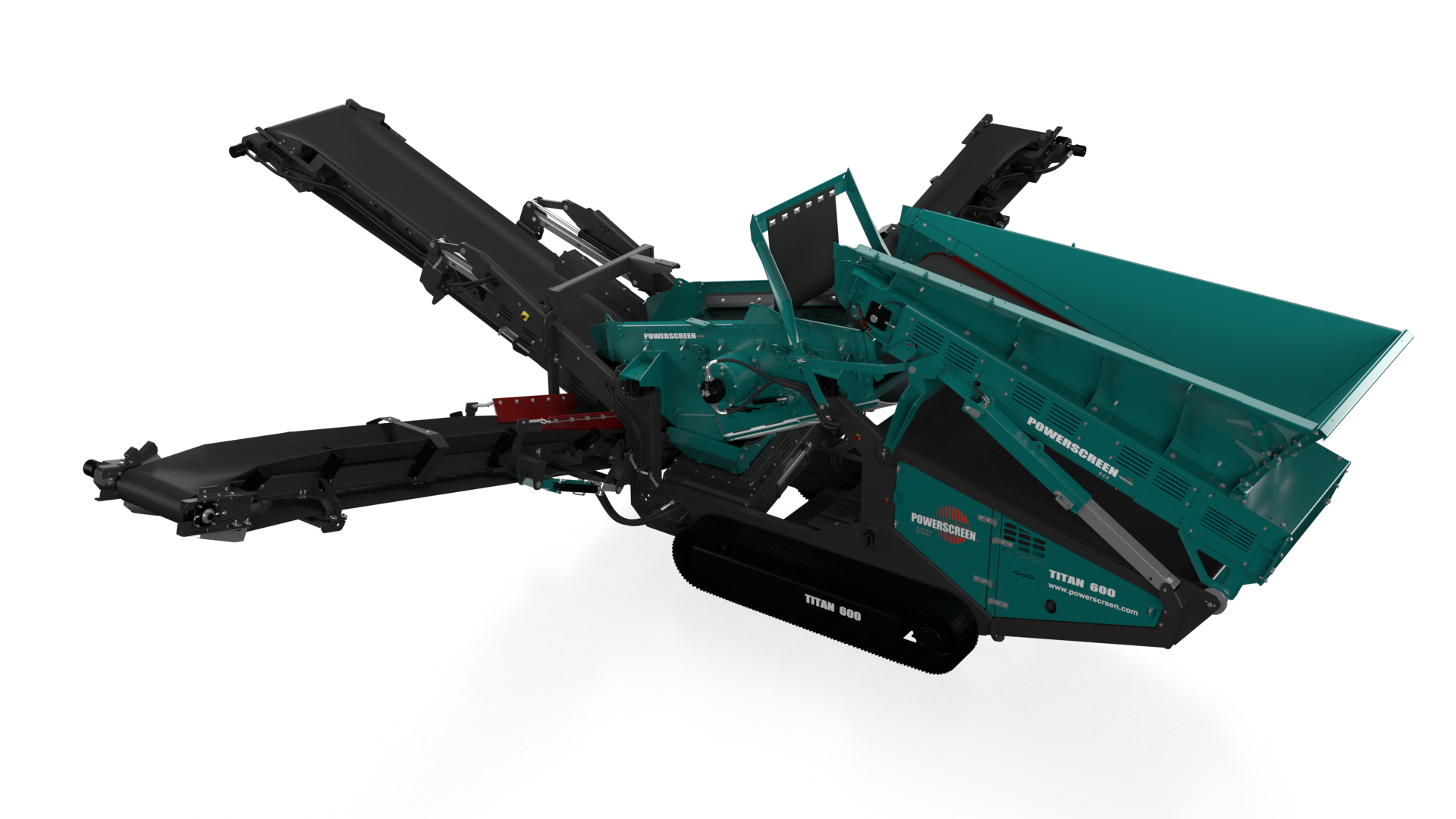

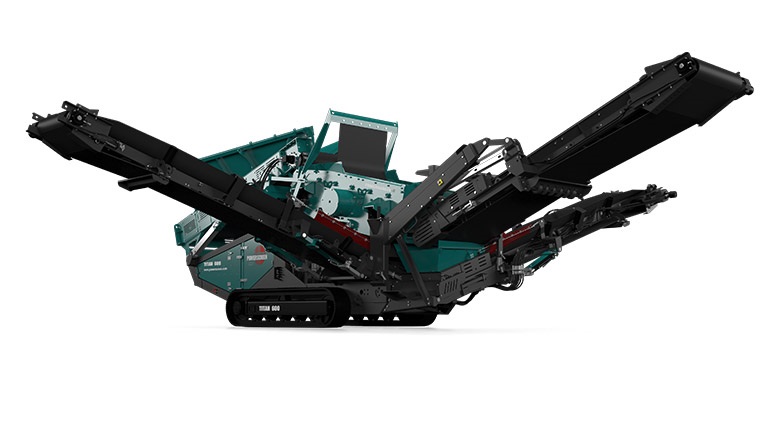

Titan 600
The Titan 600 is a versatile 2 deck screen. Compact in nature, it boasts the ability to screen up to 280tph (308 US tph) depending on application.
The Titan 600 can be rapidly switched between 2 and 3 way split giving it the flexibility to cater for a number of different screening applications.
Feeder/Hopper:
- 1000mm (40”) heavy duty belt feeder
- Hopper capacity: 3m3 (3.9 cu. yd.)
Screenbox:
- Heavy duty 2.49m x 1.17m (8’ 2’’ x 3’ 10’’) 2 deck screen
- Highly aggressive screen drive
Tail Conveyor (Oversize):
- Width: 1000mm (40”)
- Stockpile Height: 2.7m (8’ 10”)
Side Conveyor (Midsize)
- Width: 650mm (26”)
- Stockpile Height: 2.8m (9’ 2”)
Side Conveyor (Finesize)
- Width: 650mm (26”)
- Stockpile Height: 2.9m (9’ 6”)
Power Unit
- Engine Tier 3 Equivalent: Deutz D2011 L04 36.4kW (48.8 hp)
- Engine Tier 4F: Cat C2.2 55kW (73hp)
- Engine Stage V: Cat C2.2 55kW (73hp)
Technical Documentation
Measurements
Working Length
34 ft 7 in
10 m 55 cm
Transport Length
36 ft
10 m 98 cm
Output Potential
308 US tph
280 tph
Working Width
34 ft 2 in
10 m 42 cm
Working Height
10 ft 11 in
3 m 33 cm
Transport Height
8 ft 4 in
2 m 55 cm
Transport Width
7 ft 5 in
2 m 25 cm
