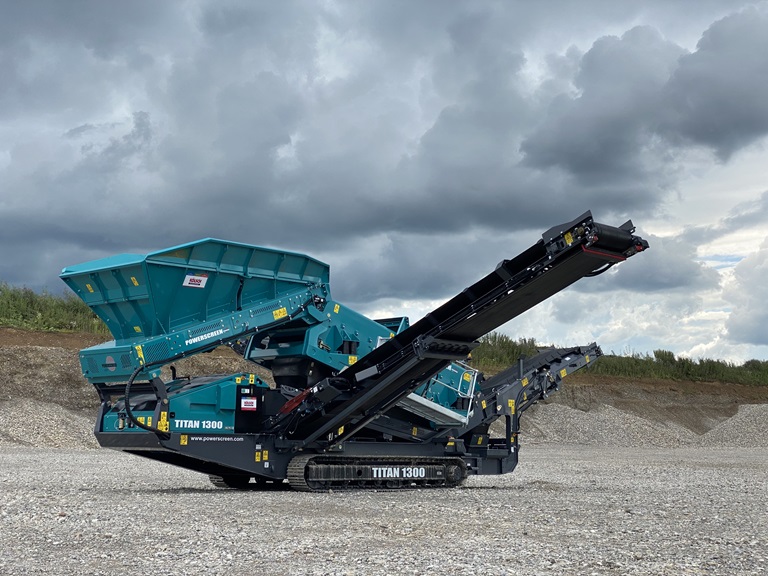

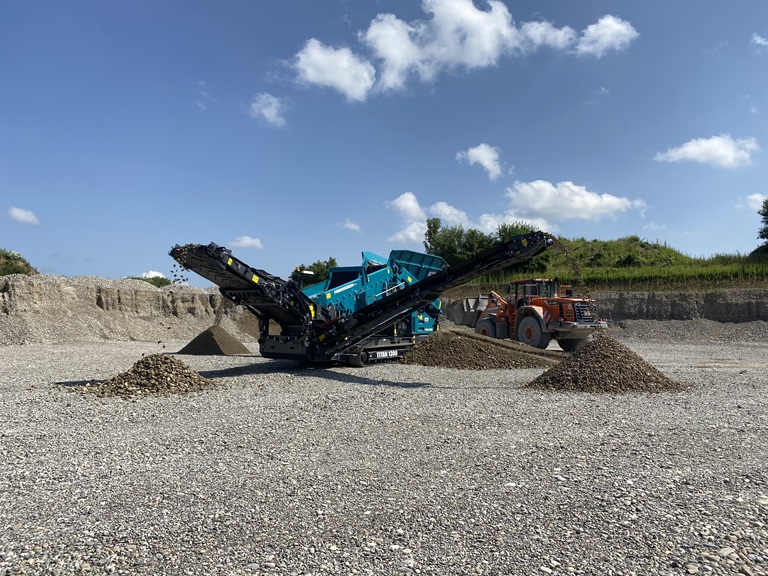

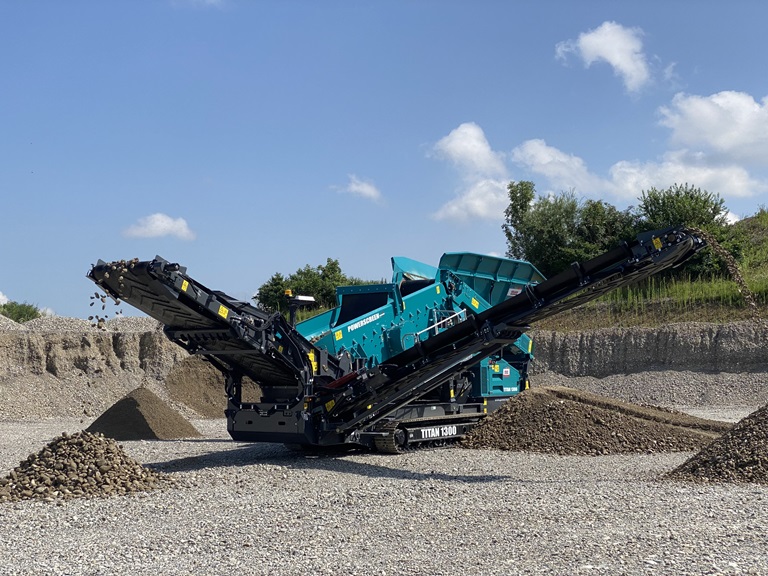

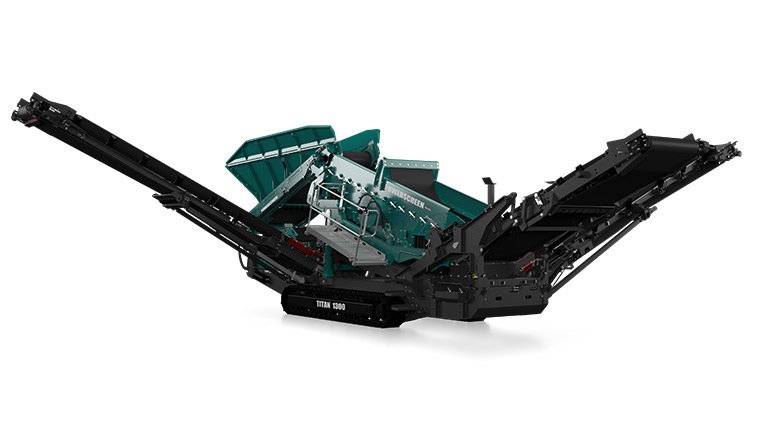

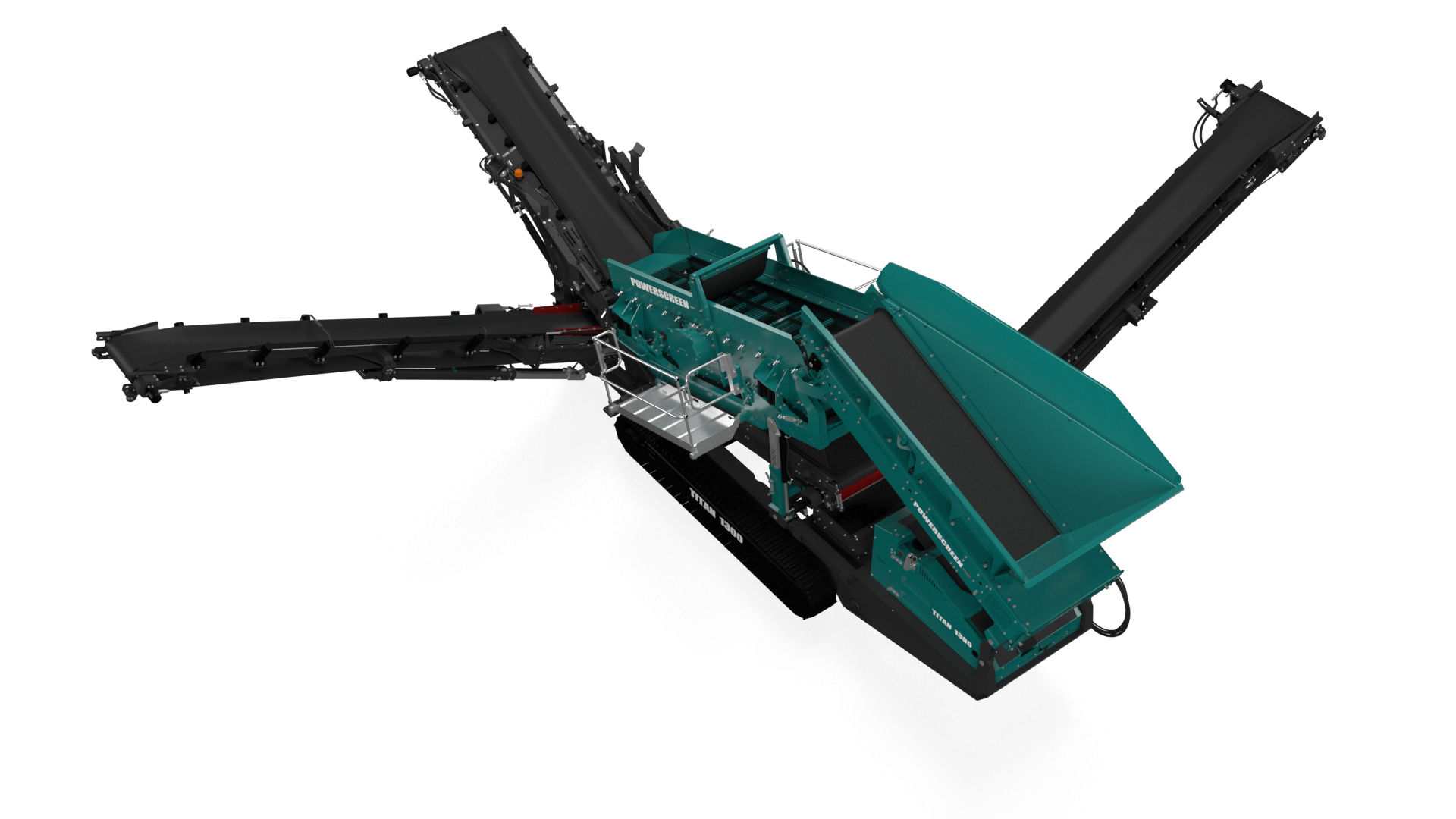

Titan 1300
The Powerscreen Titan 1300 is a highly adaptable mobile screen which can operate in both scalping and precision screening applications giving it the ability to excel in even the most difficult of materials.
Feeder/Hopper
- 1100mm (44”) heavy duty belt feeder
- Hopper capacity: 5m3 (6.5 cu. yd.)
Screenbox
- Heavy duty 4.1m x 1.22m (13’ 6’’ x 4’) 2 deck
- Highly aggressive screen drive
Side Conveyor (Finesize)
- Width: 800mm (32”)
- Stockpile Height: 3.9m (12’ 9”)
Power Unit
- Engine Tier 3 Equivalent: CAT C4.4 62 kW (83hp)
- Engine Tier 4F: CATC2.2 55 kW (74hp)
- Stage V: CAT C2.2 55 kW (74hp)
Tail Conveyor (Oversize):
- Width: 1050mm (42’’)
- Stockpile Height: 3m (9’ 10”)
Side Conveyor (Midsize)
- Width: 650mm (26”)
- Stockpile Height: 3.6m (11’ 10”)
Technical Documentation
Measurements
Working Height
13 ft 5 in
4 m 10 cm
Transport Length
36 ft 10 in
11 m
Transport Width
8 ft 2 in
2 m 50 cm
Transport Height
10 ft 2 in
3 m 10 cm
Working Length
41 ft
12 m 50 cm
Working Width
45 ft 11 in
14 m
Productivity
Output Potential
386 US tph
350 tph
