Mobile Conveyors

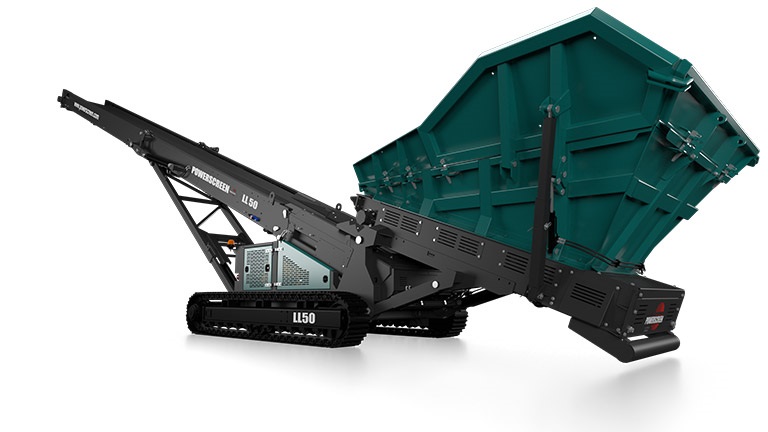

LL50
The Powerscreen LL50 low level feeder allows the operator to directly discharge from wheel loaders and excavators at a significantly lower feed in height compared to standard hopper feeders. This unique design of the hopper allows for rear feeding which can be an advantage when operating in restricted areas.
Technical Documentation
Productivity
Output Potential
496 US tph
450 tph
Measurements
Transport Height
8 ft 4 in
2 m 55 cm
Transport Length
40 ft 10 in
12 m 20 cm
Belt Width
42 Inches
1050 mm
Conveyor Length
51 ft 2 in
15 m 60 cm
Max. Discharge Height
23 ft 7 in
7 m 20 cm
Transport Width
9 ft 10 in
2 m 77 cm
