Mobile Conveyors

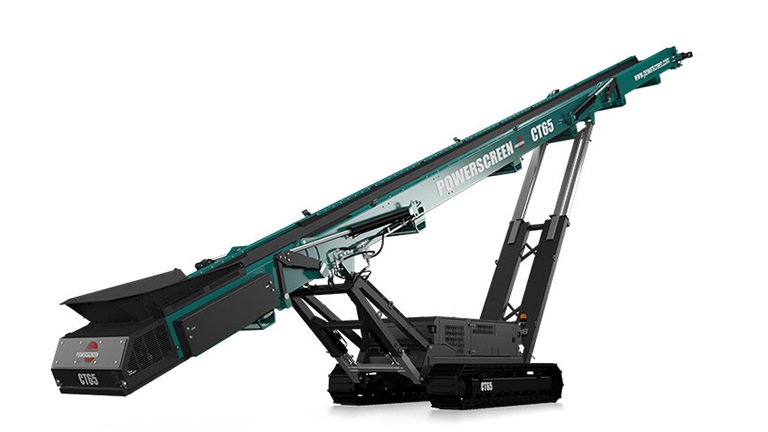

CT65



The Powerscreen® range of mobile conveyors are designed to work in conjunction with the entire range of Powerscreen crushing and screening equipment. Using conveyors means increased stockpile capacity and reduces on-site material handling. For convenience and to keep shipping costs low, Powerscreen conveyors can be transported in a 40ft container. The range includes the CT65 (65 foot), CT80 (80 foot), CT100 (100 foot) track mobile conveyors and the HL75 high level feeder and LL75 low level feeder.

PS_Website-Breaker_Thinner

Features and Benefits

The Powerscreen® range of mobile conveyors are designed to work in conjunction with the entire range of Powerscreen crushing and screening equipment. Using conveyors means increased stockpile capacity and reduces on-site material handling. For convenience and to keep shipping costs low, Powerscreen conveyors can be transported in a 40ft container. The range includes 65ft and 80ft track mobile conveyors: CT65 and CT80.

Technical Documentation

Productivity

Output Potential 551 US tph 500 tph

Measurements

Belt Width 42 Inches 1050 mm
Transport Width 7 ft 4 in 2 m 25 cm
Conveyor Length 64 ft 11 in 19 m 79 cm
Transport Length 37 ft 11 m 30 cm
Max. Discharge Height 29 ft 10 in 9 m 10 cm
Transport Height 8 ft 8 in 2 m 65 cm
