Mobile Conveyors

CT100

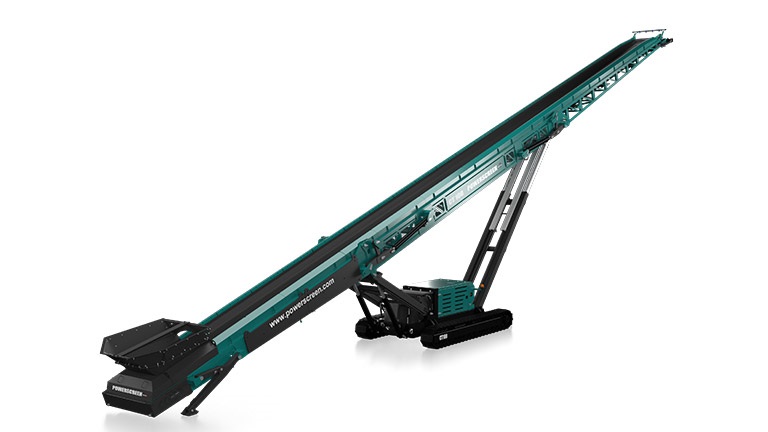

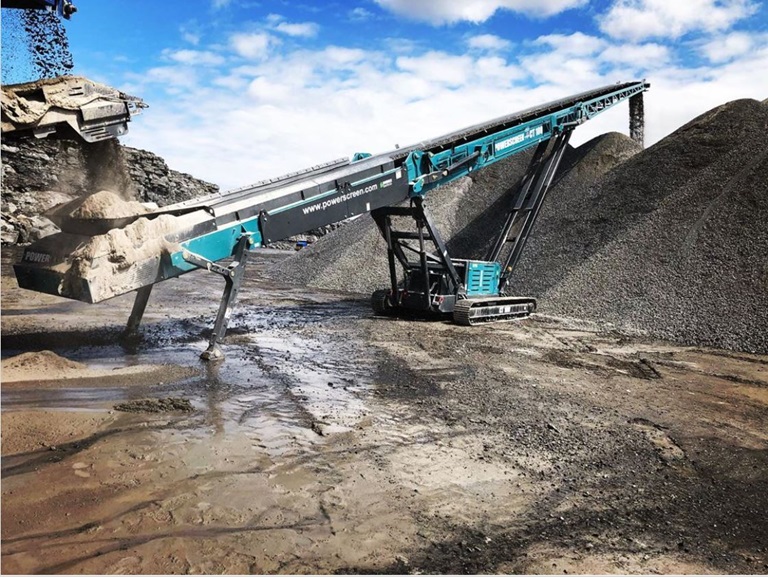

The Powerscreen CT100 100ft stacker, builds on the hugely successful Powerscreen CT65 & CT80 conveyors with extra length and capacity. The extra length of conveyor, and increased power, allows for maximum mobility and flexibility, reducing or eliminating the use of wheeled loaders on site. The conveyor can cope with all applications, from light duty screened material, through to jaw applications. Although the conveyor is 100ft long, it still retains the ability to be transported worldwide in a 40ft container meaning convenience and keeping shipping costs low. The Powerscreen® range of mobile conveyors are designed to work in conjunction with the entire range of Powerscreen crushing and screening equipment. Using conveyors or stackers means increased stockpile capacity and reduces on-site material handling.

PS_Website-Breaker_Thinner

Features and Benefits

The Powerscreen CT100 Stockpiler, builds on the hugely successful Powerscreen CT65 & CT80 Conveyors. The extra length of conveyor, and increase power, allows for Maximum mobility and flexibility, reducing or eliminating the use
of wheeled loaders on site. The Conveyor can cope with all applications, from light duty screened material, through to Jaw Applications. Although the conveyor is 100ft long, it still retains the ability to be transported worldwide in a 40ft container.

Technical Documentation

Measurements

Transport Width 9 ft 4 in 2 m 84 cm
Transport Length 39 ft 11 m 90 cm
Max. Discharge Height 43 ft 11 in 13 m 10 cm
Transport Height 11 ft 3 in 3 m 43 cm
Conveyor Length 98 ft 9 in 30 m 10 cm
Belt Width 42 Inches 1050 mm

Productivity

Output Potential 661 US tph 600 tph
