Phoenix 3300 Wheeled
Trommel Screen
|
|
|
|---|---|
Specifications |
|
|
Tier 3: CAT C7.1 202hp - Tier 4: CAT C4.4 173hp Tier 4 Tier 3: CAT C7.1 151kW - Tier 4: CAT C4.4 129kW |
|
7'7" 2,320mm |
|
30'7" 9,320mm |
|
82,673lbs 37,500kg |

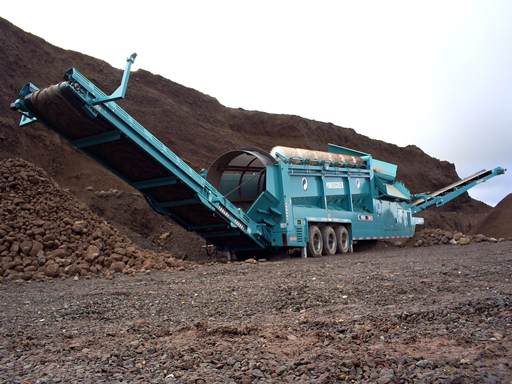

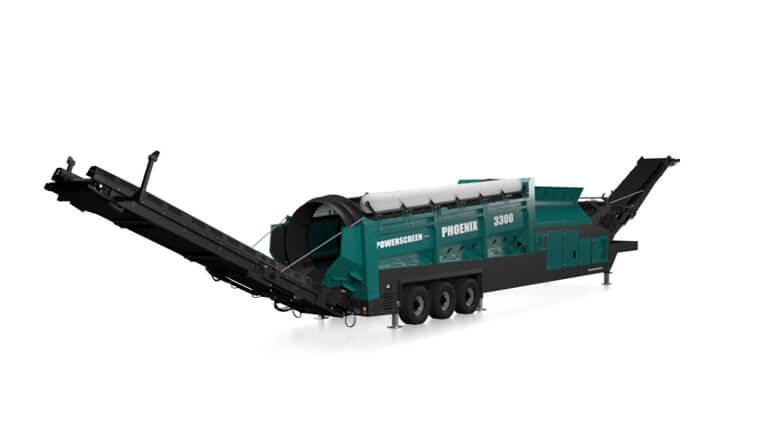

The Powerscreen Phoenix 3300 Wheeled Trommel Screen is designed to offer unrivalled production throughput and application flexibility. The robust design with optional features such as heavy duty tipping grid or double deck vibrating grid make the Phoenix 3300 the most versatile trommel on the market today. The machine performs equally well in heavy C&D applications as it does in high volume compost production.
Technical Highlights
Huge Productivity
- The 180° swivel fines conveyor, with a discharge height of 5.89m (19’ 3”) results in the creation of impressive stockpiles.
- This swivel feature can be controlled via a remote while the machine is in operation, minimising downtime.
- A powerful four wheel drive system with high performance friction grip wheels is used to turn the trommel drum giving operators the ability to run bi-directionally.
Versatility
- Woven mesh or heavy duty punch plate panels can be fitted to the trommel drum ensuring all application requirements are met.
- Highly efficient in C&D applications and high volume compost applications.
Serviceability & Fuel Economy
- Powerful hydraulics and auto feeder speed control guarantee the machine is always working at its optimum level.
- Low level hydraulics ensure excellent service access.
