Phoenix 1600 Wheeled
Trommel Screen
|
|
|
|---|---|
Specifications |
|
|
CAT C4.4 130 HP Tier 3 or CAT C4.4 110HP Tier 4 Final CAT C4.4 130 HP Tier 3 or CAT C4.4 110HP Tier 4 Final |
|
5' 1,540mm |
|
16' 4,900mm |
|
39,700lbs 18,000kg |

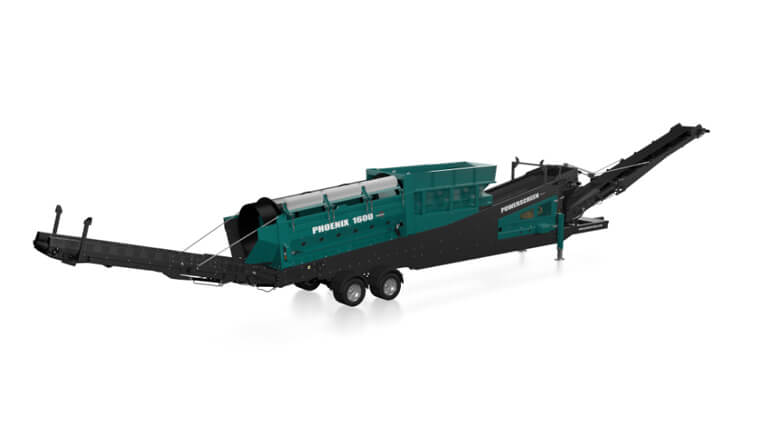

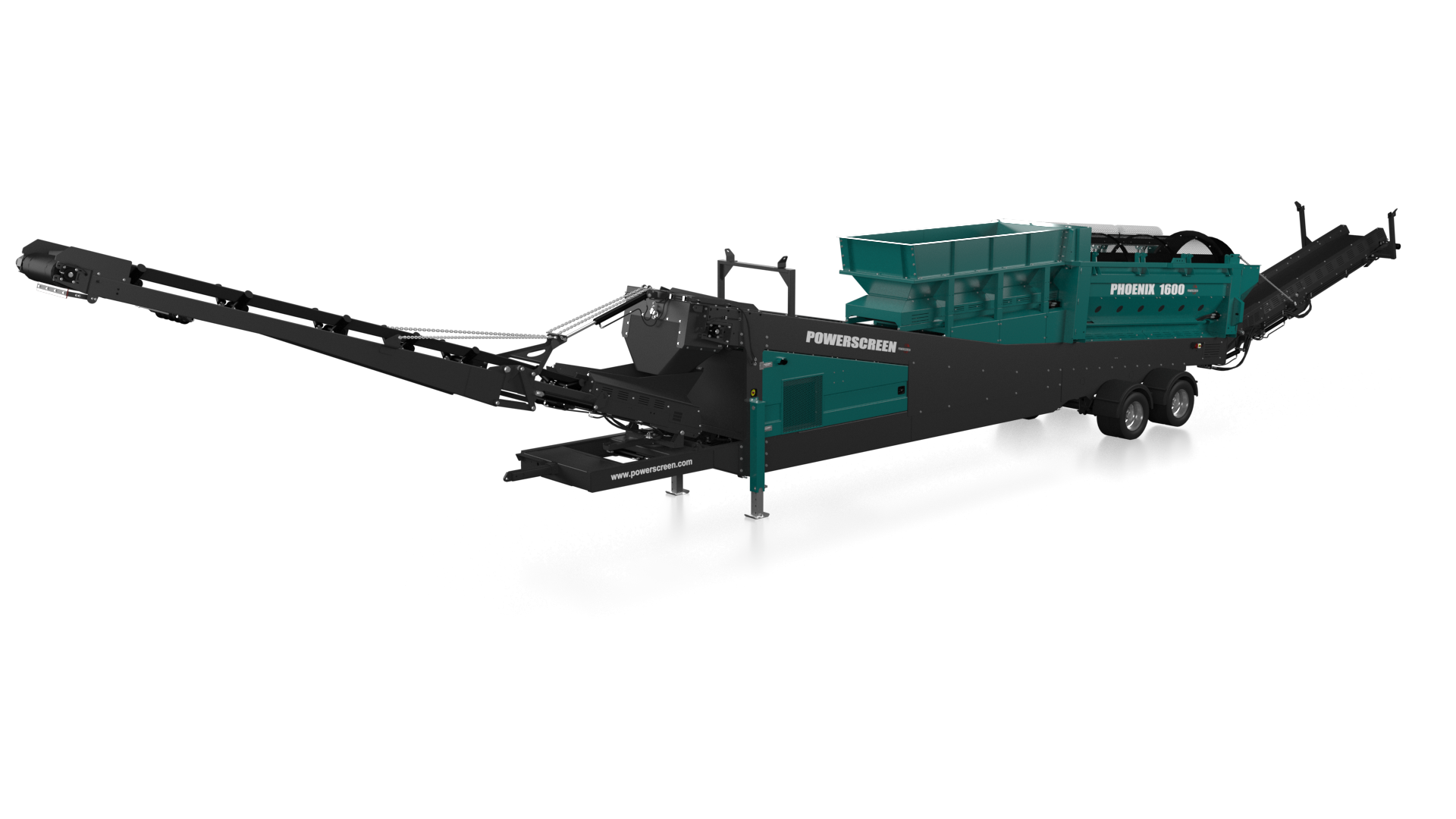

The Powerscreen Phoenix 1600 Wheeled Trommel Screen has been innovatively designed to provide excellent fuel efficiency and low operating costs, whilst also reducing emissions and noise levels due to the machine running at a low engine RPM. With a 4.9m (16’) x 1.54m (5’) drum, unrivalled production throughput is guaranteed due to the screening area, the largest in its class. Highly versatile, the Phoenix 1600 can easily screen a variety of material including topsoil, compost, sand and gravel, wood chip and C&D waste.
Technical Highlights
Huge Productivity
- The 180° swivel fines conveyor, with a discharge height of 5.87m (19’ 3”) results in the creation of impressive stockpiles
- This swivel feature can be controlled via a remote while the machine is in operation, minimising downtime
- The powerful four wheel drive system with high performance friction grip wheels is used to turn the trommel drum giving operators the ability to run bi-directionally
Versatility
- Woven mesh or heavy duty punch plates panels can be fitted to the drum to meet all application requirements
- A fifth wheel connection, tandem axel
bogie and a quick set up time make the
machine easily transportable from site
to site
Serviceability & Fuel Economy
- Powerful hydraulics and intelligent feeder
control system ensure the Phoenix 1600 is
always working to its optimum
