Phoenix 1600 Tracked

Trommel Screen

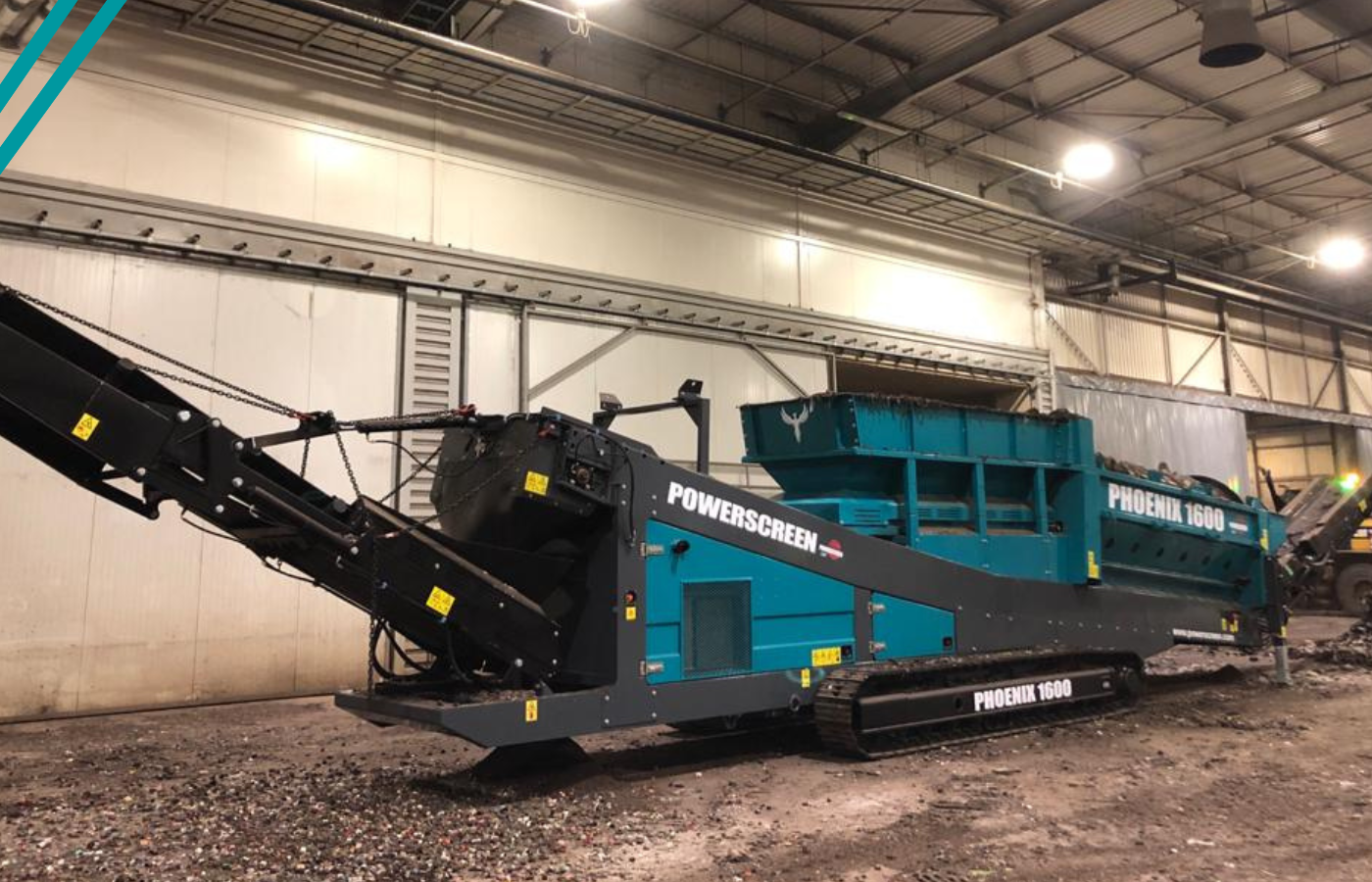

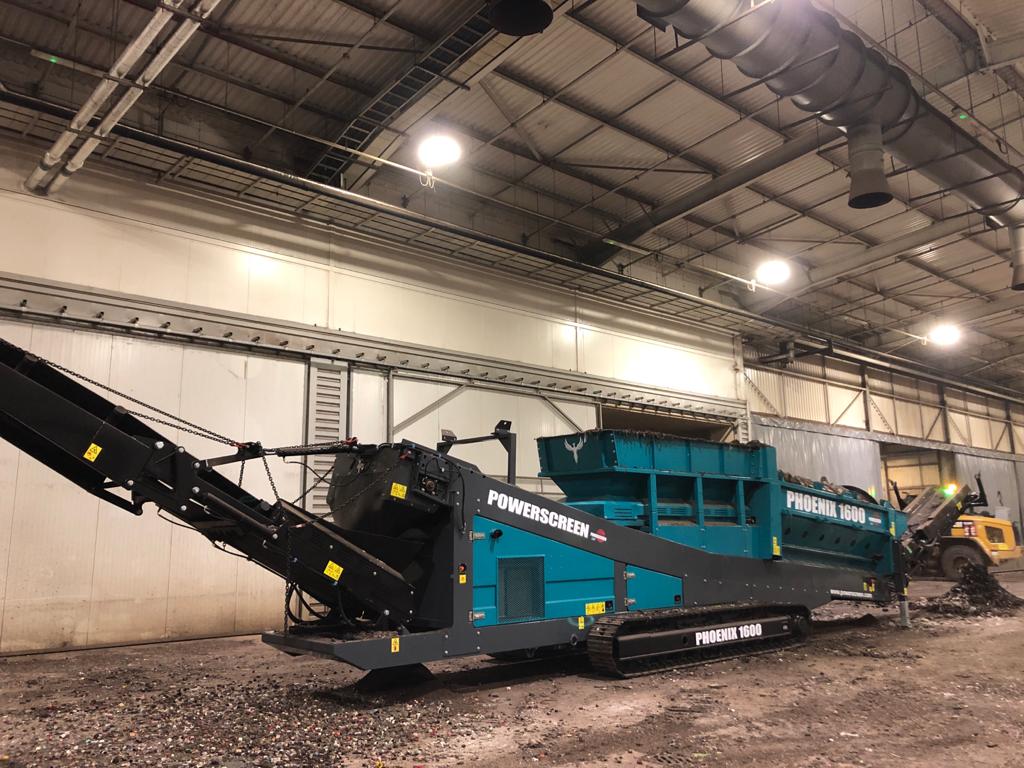

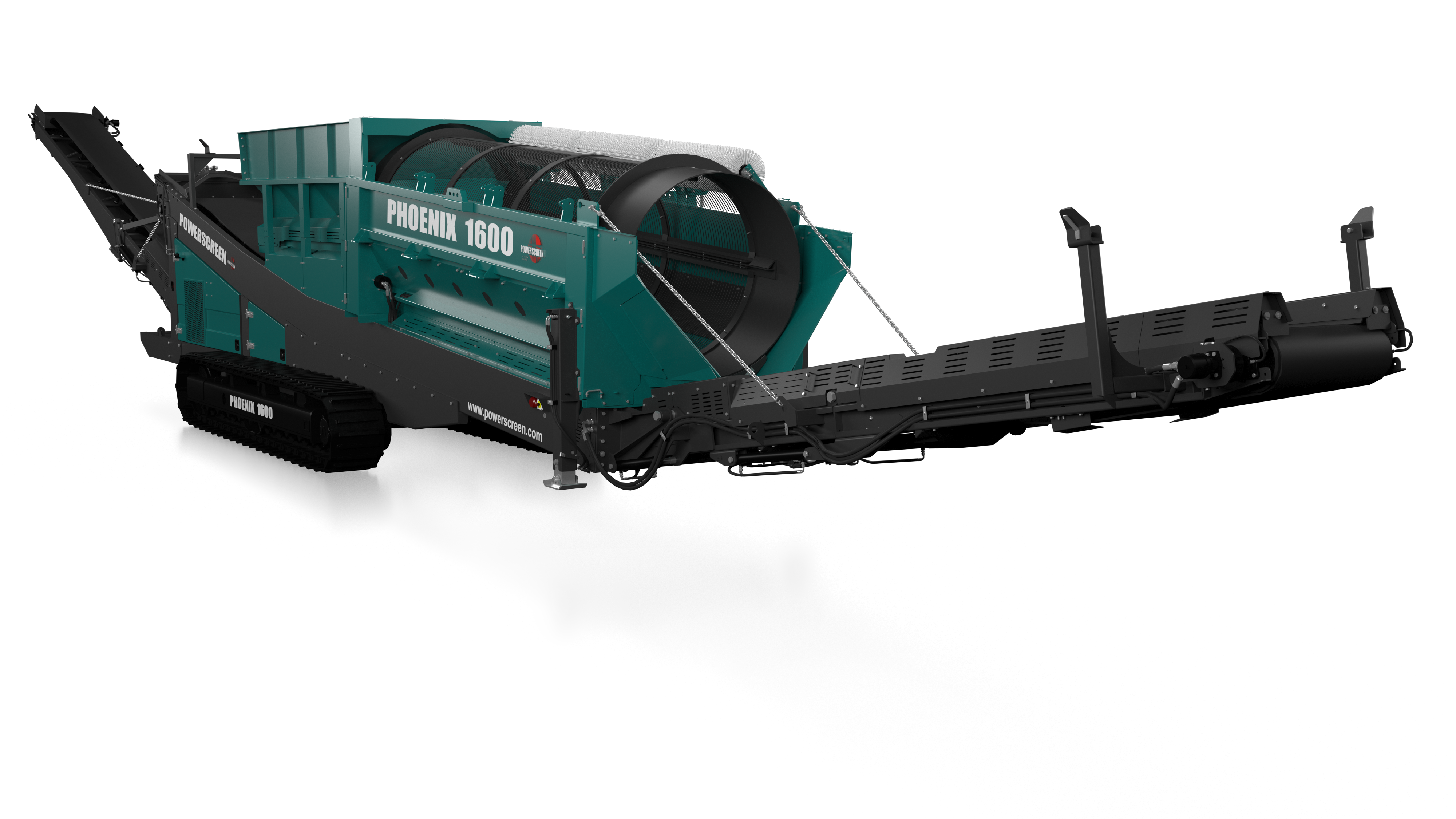

Phoenix 1600 Tracked Trommel Screen

Specifications
Engine CAT C4.4 82kW Tier 4 Final or CAT C4.4 97kW Constant Speed CAT C4.4 82kW Tier 4 Final or CAT C4.4 97kW Constant Speed
Drum Diameter 5' 1,540mm
Drum Length 16' 4,900mm
Weight 46,500lbs 21,100kg

The Powerscreen Phoenix 1600 Tracked Trommel Screen has been innovatively designed to provide excellent fuel efficiency and low operating costs, whilst also reducing emissions and noise levels due to the machine running at a low engine RPM. With a 4.9m (16’) x 1.54m (5’) drum, unrivalled production throughput is guaranteed due to the screening area, the largest in its class. The tracked configuration allows operators to move the machine around yards with tight spaces and bring the machine to the material for screening.

PS_Website-Breaker_Thinner

Technical Highlights

Huge Productivity

  • The 180° swivel fines conveyor, with a discharge height of 5.65m (18’ 6”) results in the creation of impressive stockpiles
  • This swivel feature can be controlled via a remote while the machine is in operation, minimising downtime
  • The powerful four wheel drive system with high performance friction grip wheels is used to turn the trommel drum giving operators the ability to run bi-directionally

Versatility

  • Woven mesh or heavy duty punch plates panels can be fitted to the drum to meet all application requirements

Serviceability & Fuel Economy

  • Powerful hydraulics and intelligent feeder control system ensure the Phoenix 1600 is always working to its optimum
  • Low level hydraulics ensure excellent service access
