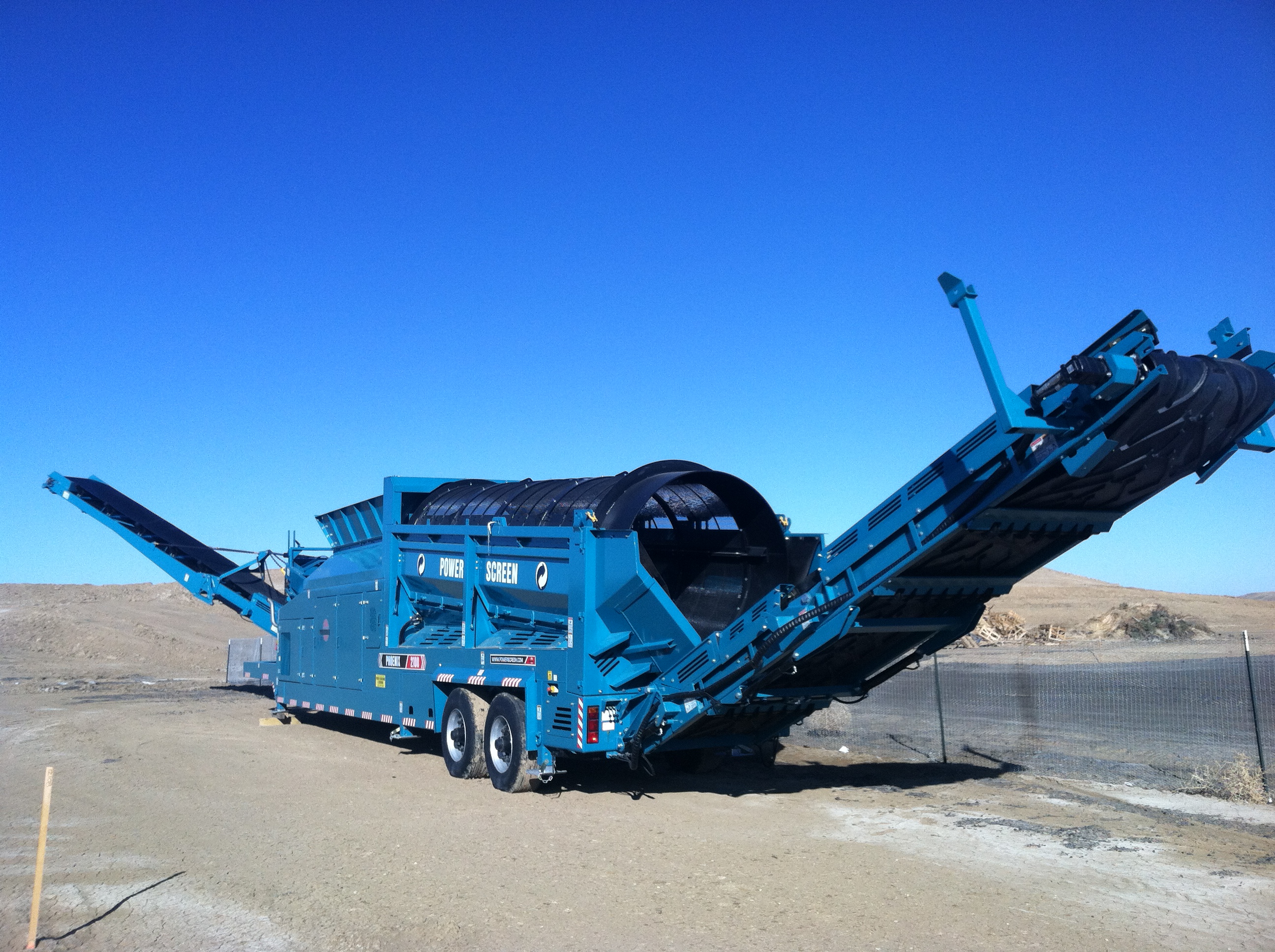

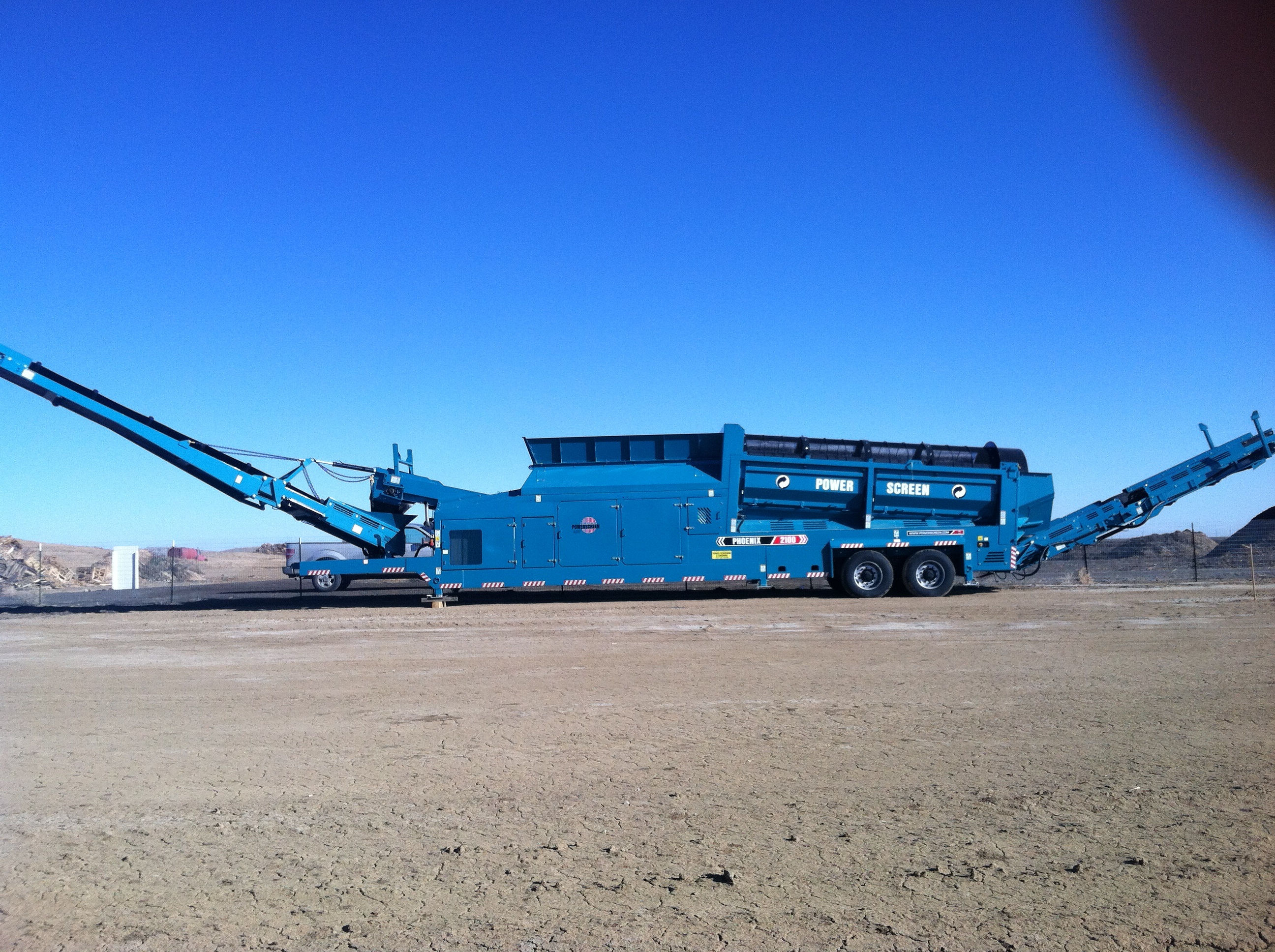

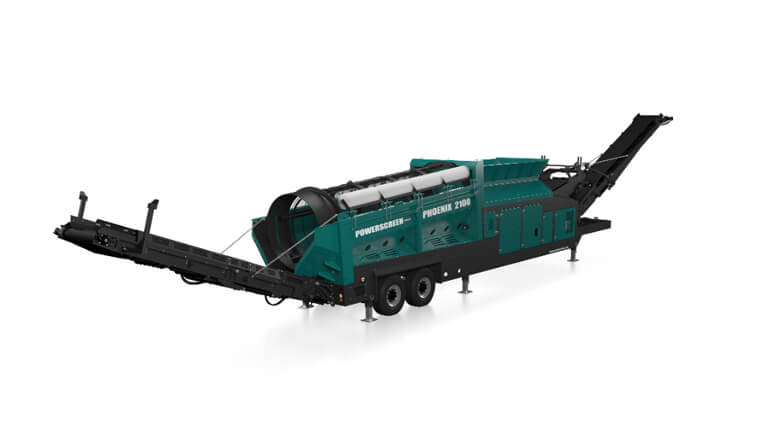

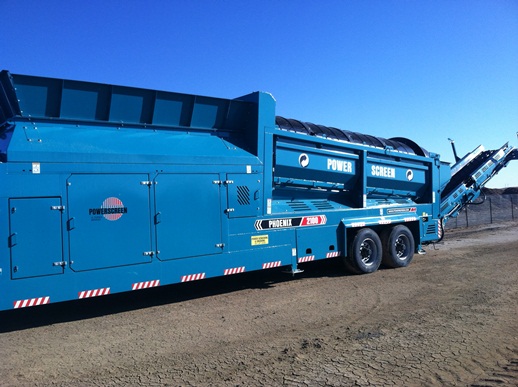

Phoenix 2100 Wheeled
Trommel Screen
|
|
|
|---|---|
Specifications |
|
|
Tier 3: CAT C7.1 202 HP - Tier 4: CAT C4.4 173 HP Tier 3: CAT C7.1 151 kW - Tier 4: CAT C4.4 129kW |
|
6'4" 1,940mm |
|
21'2" 6,450mm |
|
60,627lbs 27,500kg |
The Powerscreen Phoenix 2100 Wheeled Trommel Screen is designed to offer unrivalled production throughput and application flexibility. The robust design with optional features such as a heavy duty tipping grid or double deck vibrating grid make the Phoenix 2100 the most versatile trommel on the market today. The machine performs equally well in heavy C&D applications as it does in high volume compost production.
Technical Highlights
Huge Productivity

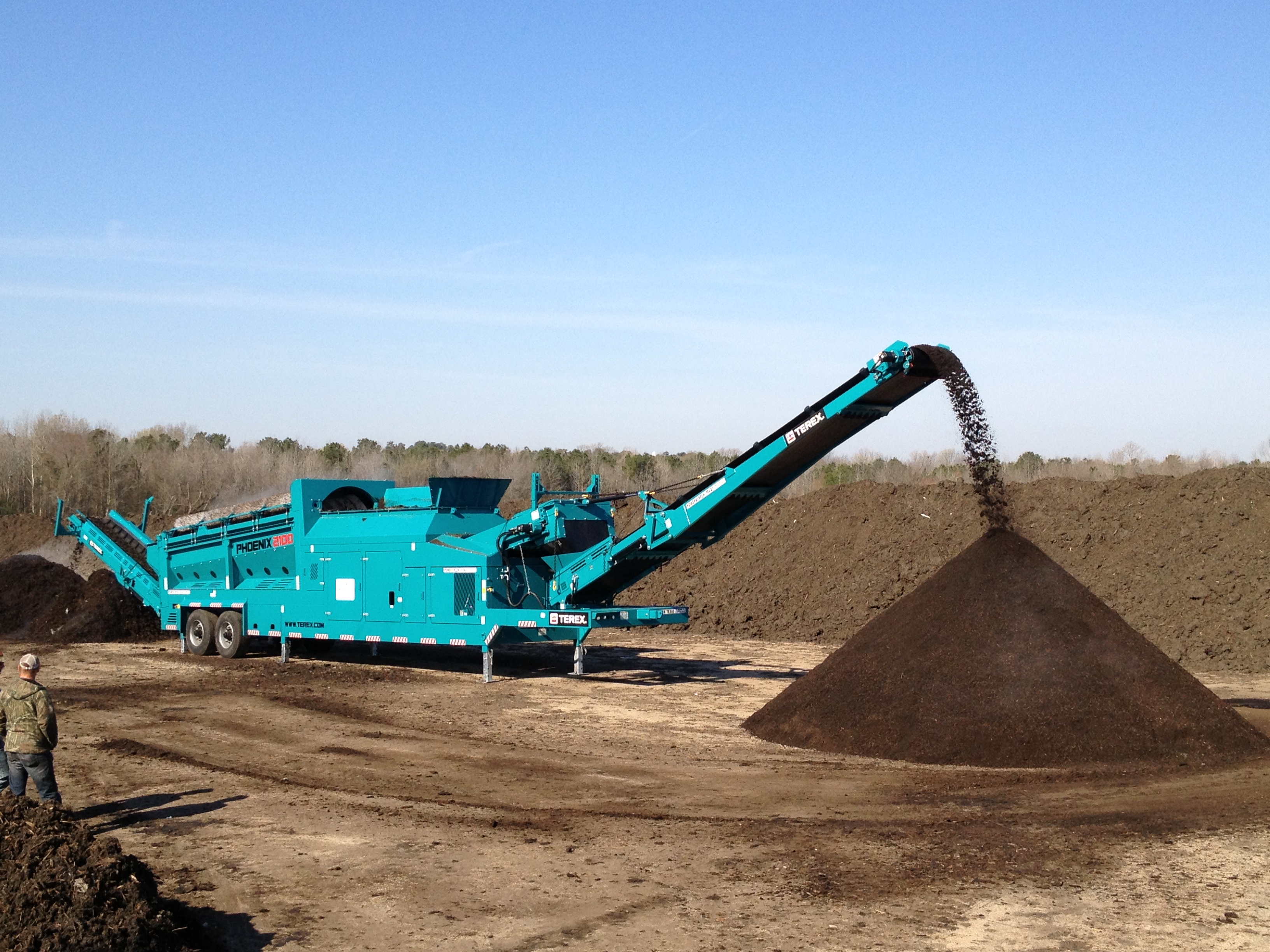

- The 180° swivel fines conveyor, with a discharge height of 5.67m (18’ 7”) results in the creation of impressive stockpiles.
- This swivel feature can be controlled via a remote while the machine is in operation, minimising downtime.
- A powerful four wheel drive system with high performance friction grip wheels is used to turn the trommel drum giving operators the ability to run bi-directionally
Versatility
- Woven mesh or heavy duty punch plate panels can be fitted to the trommel drum ensuring all application requirements are met.
- Highly efficient in wood ship seperation/ processing top soil, compost, green waste, demolition waste, aggregates and yard waste
Serviceability & Fuel Economy
- Powerful hydraulics and auto feeder speed control guarantee the machine is always working at optimum level
- Low level hydraulics ensure excellent service access
