- Chieftain 2100X

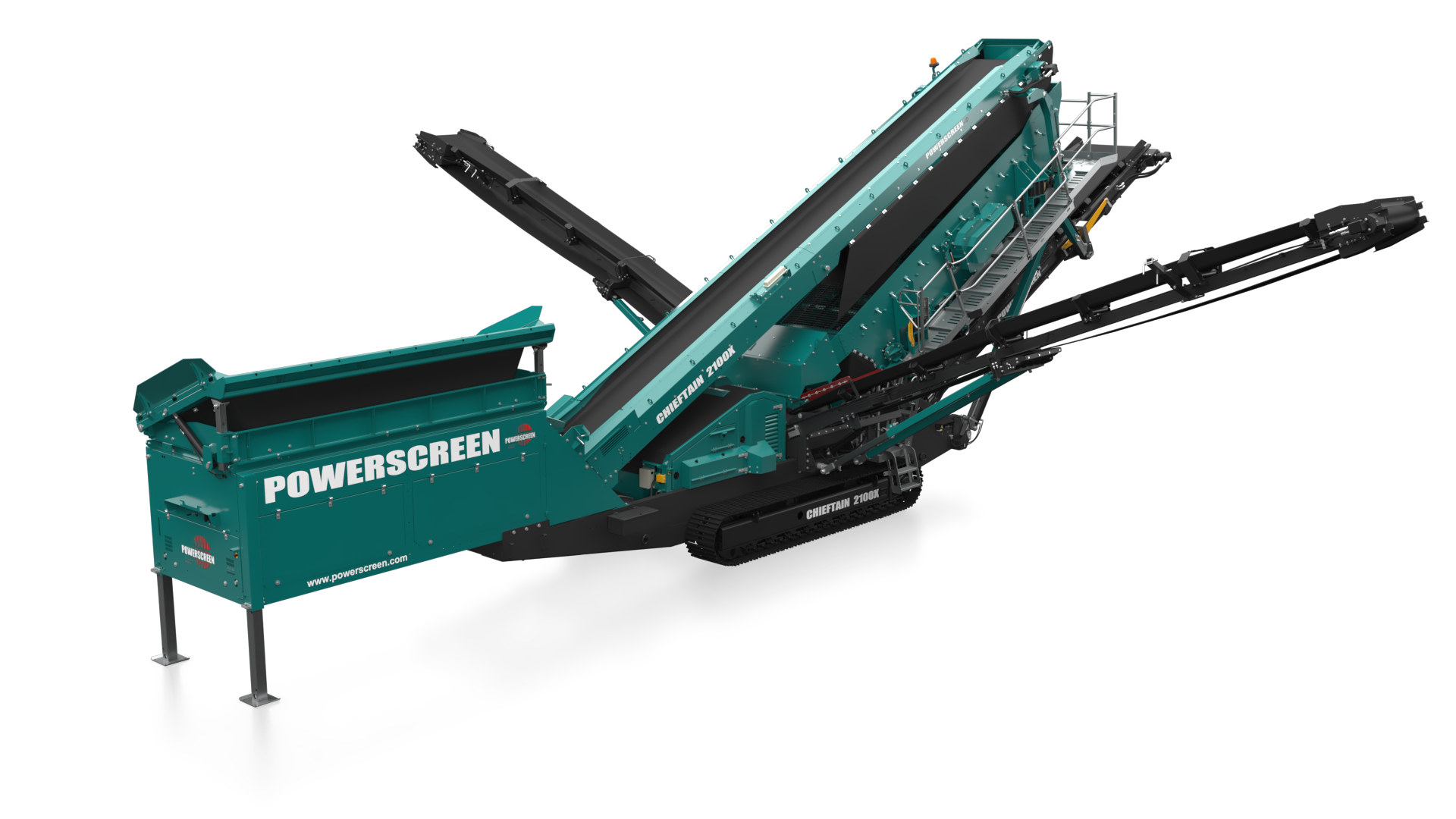

Chieftain 2100X
The Powerscreen Chieftain 2100X is designed for medium to large scale operators who require large volumes of high specification product. The screenbox can be finely tuned to suit the application with its adjustable stroke, angle and speed. Featuring quick set up times and maximum mobility, low ground pressure tracks - an operator can have the unit operational in minutes. Serviceability is a priority on the Chieftain 2100X with its transverse power unit arrangement and a drop down fines conveyor facility to aid bottom deck mesh changes.
⚡This machine is available with Electric/Hybrid drive
3️⃣Chieftain 2100X can also be configured with a 3 deck screen
Power Unit
- Tier 3 Equivalent: CAT C4.4 83 kW (111.3hp)
- Tier 4F / Stage IV: CAT C4.4 102 kW (137hp)
- Stage V: JCB 4.8 Performance: 81 kW (109hp)
- Fuel Tank Capacity: 336L (88 US Gal)
Tracks
Width: 500mm (1’ 8’’)
Hopper
- Hopper capacity with grid: 6.9m3 (9 cu. yd.)
- Hopper capacity without grid: 6.2m3 (8.1 cu. yd.)
Feed Conveyor
- Width: 1200mm (48’’)
- Hydraulic variable speed control
Side Conveyors (Mid-finesize & Mid-oversize)
- Width: 800mm (32”)
- Stockpile height 4.97m (16’ 4”)
Screenbox
- Oil filled 2 bearing
- Size: 6.1m x 1.55m (20’ x 5’)
Tail Conveyor (finesize)
- Width: 1200mm (48”)
- Stockpile height: 4.41m (14’ 6’’)
Main Conveyor
- Width: 1050mm (42”)
- Hydraulically adjustable conveyor, fully skirted & sealed
Side Conveyors (Mid-finesize & Mid-oversize)
- Width: 800mm (32”)
- Stockpile height 4.97m (16’ 4”)
Technical Documentation
Productivity
Measurements
- Double deck vibrating grizzly
- Radio controlled tracking
- Anti roll-back
- Dual power (additional electric hydraulic drive)
- Roll-in bogie prepared
- Roll-in bogie equipped
- Auto lubrication system
- Dust suppression
- Quick release wedge tensioning (top/middle decks)
- Oversize transfer conveyor for Biomass & recycling (3 deck)
- Output potentital: up to 600 tph (661 US tph)
- 2 or 3 deck
- Radio controlled tipping grid
- Integrated high capacity variable speed belt feeder
- Oil bath lubricated 2 bearing screenbox
- Heavy duty single shaft screenbox with adjustable stroke, angle & speed
- Screen walkway & access ladder
- Hydraulic folding conveyors with excellent stockpiling capacity
