- Chieftain 1400

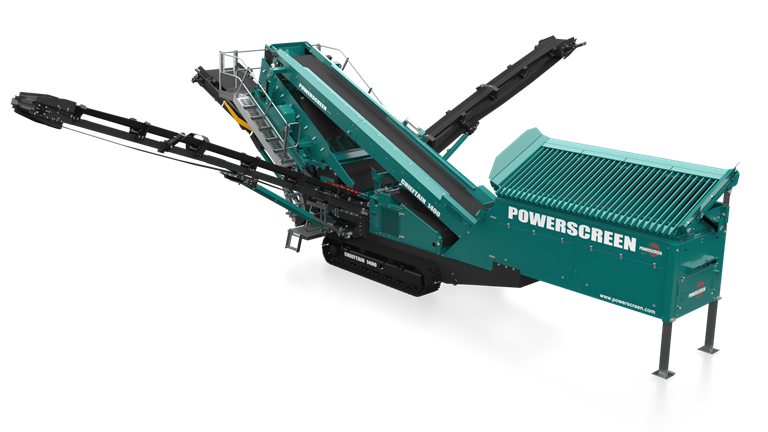

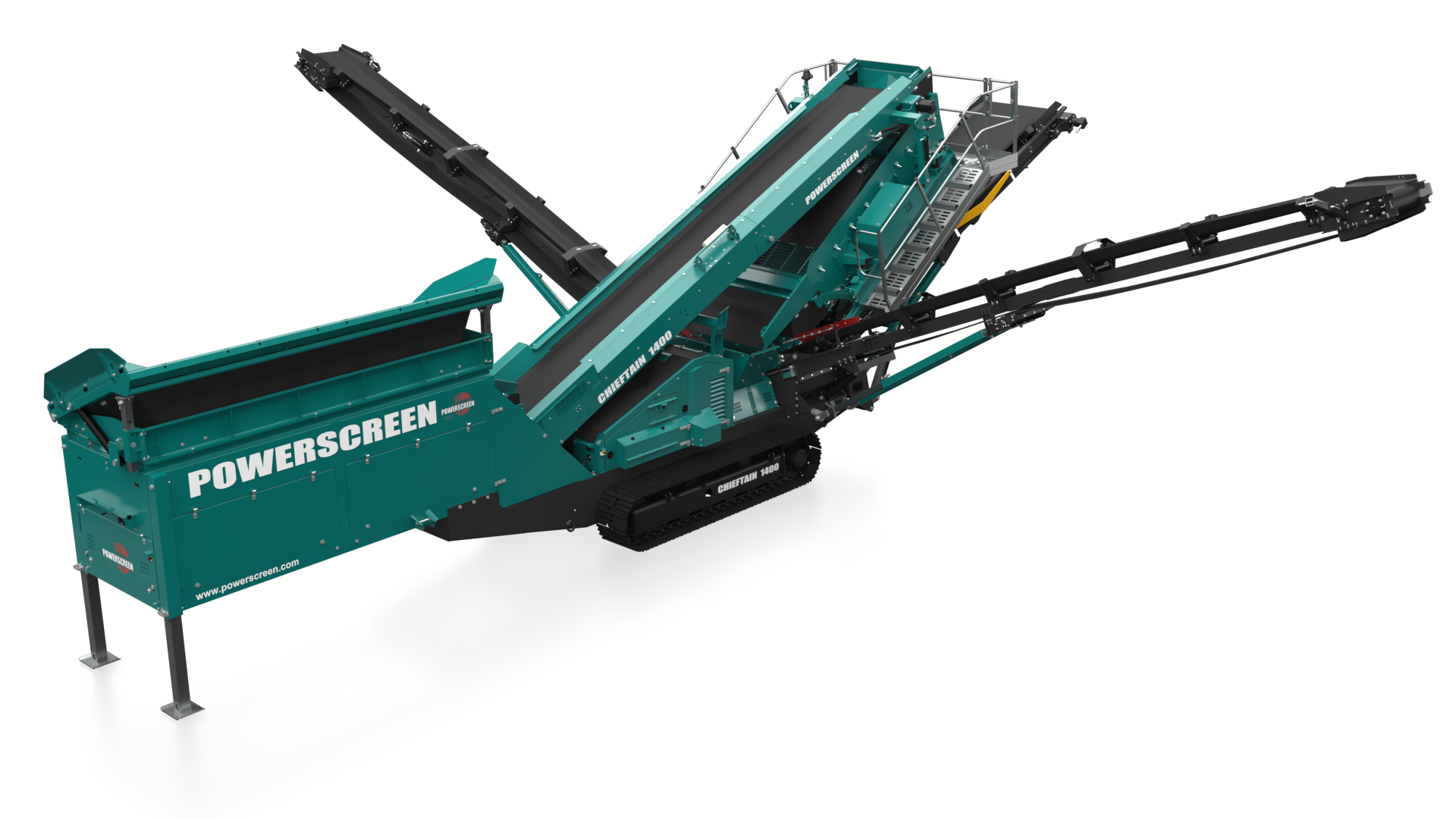

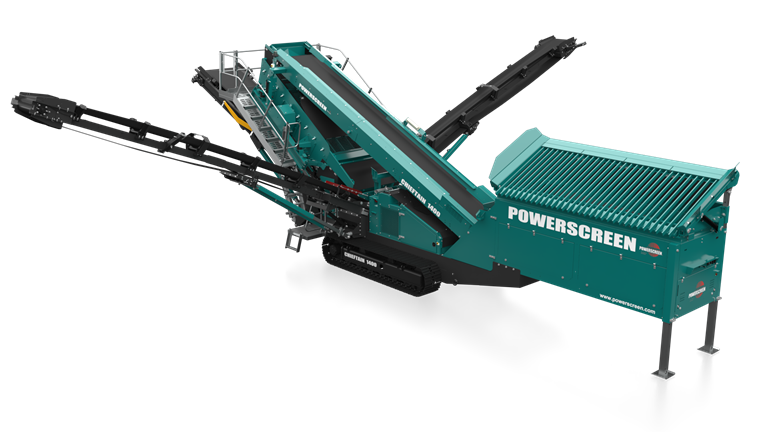

Chieftain 1400

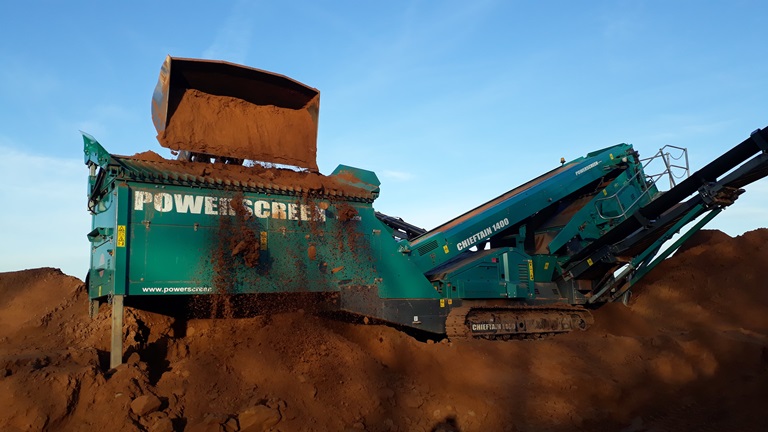

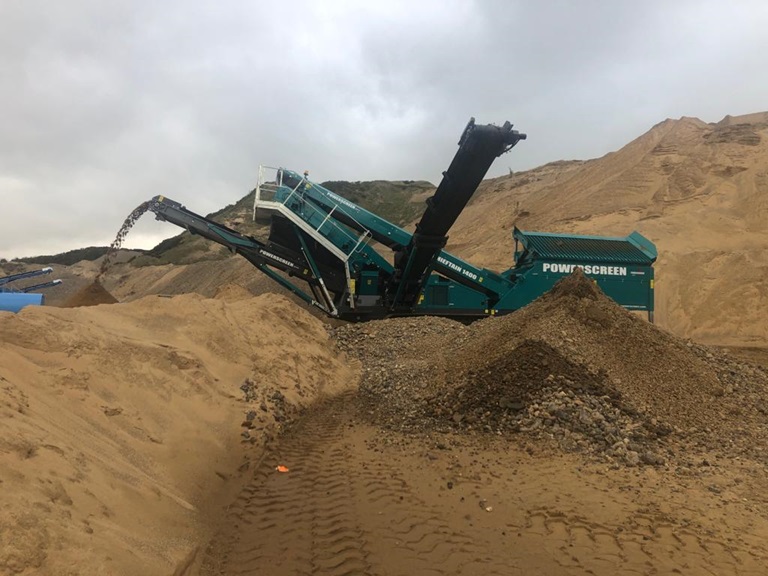

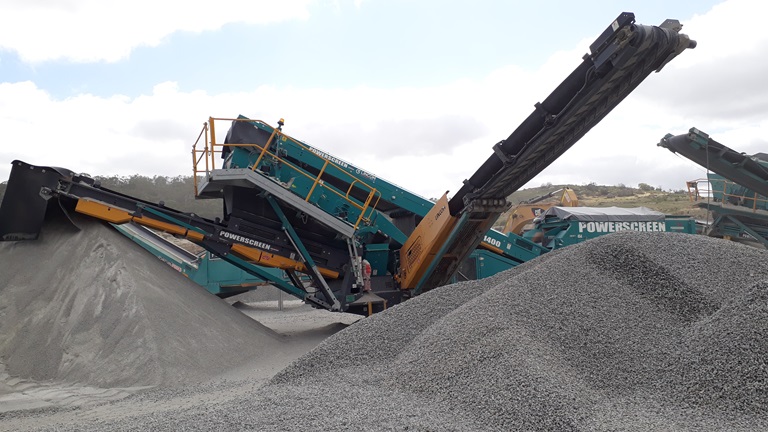

The Powerscreen® Chieftain 1400 Tracked Screen is one of Powerscreen’s most popular screening products and is ideally suited for small to medium sized operators and contractors who require a versatile product capable of operating in a number of applications such as sand and gravel, aggregates and recycling.
User benefits include hydraulic folding conveyors for a quick set-up time, screen walkways and access ladders for ease of maintenance, and a drop down tail conveyor to aid screen media changes.
Hopper
- Hopper capacity with grid: 6.7m3 (8.75 cu. yd.)
- Hopper capacity without grid: 6m3 (7.8 cu. yd.)
Feed Conveyor
- Width: 1050mm (42’’)
- Hydraulic variable speed control
Main Conveyor
- Width: 1050mm (42”)
- Hydraulically adjustable conveyor, fully skirted & sealed
Screenbox
- 4 bearing
- Size: 3.3m x 1.5m (11’ x 5’)
Tracks
- Width: 500mm (1’ 8’’)
Power Unit
- Tier 3 Equivalent: CAT C4.4 83 kW (111.3hp)
- Tier 4 / Stage IV: CAT C3.6 82 kW (110hp)
- Stage V: JCB 4.8 81 kW (109hp)
- Fuel Tank Capacity: 336 L (88 US Gal)
Tail Conveyor (finesize)
- Width: 1200mm (48”)
- Stockpile height: 3.93m (12’ 11’’)
Side Conveyors (Mid-finesize & Mid-oversize)
- Width: 650mm (26”)
- Stockpile height: 4.72m (15 ’6”)
Technical Documentation
Measurements
Productivity
- Double deck vibrating grizzly
- Radio controlled tracks
- Roll-in bogie prepared
- Roll-in bogie equipped
- Quick release screen wedge tensioning
- Anti roll-back
- Auto lubrication system
- Hydraulic screen tensioning (Bottom Deck)
- Output potential up to 400 tph (441 US tph)
- Radio controlled tipping grid
- Integrated high capacity variable speed belt feeder
- Grease filled patented 4 bearing, 2 deck screen box
- Hydraulic screen angle adjustment
- Screen walkway and access ladder
- Hydraulic folding conveyors
- Engine protection shutdown system
- Patented 4 bearing screenbox
