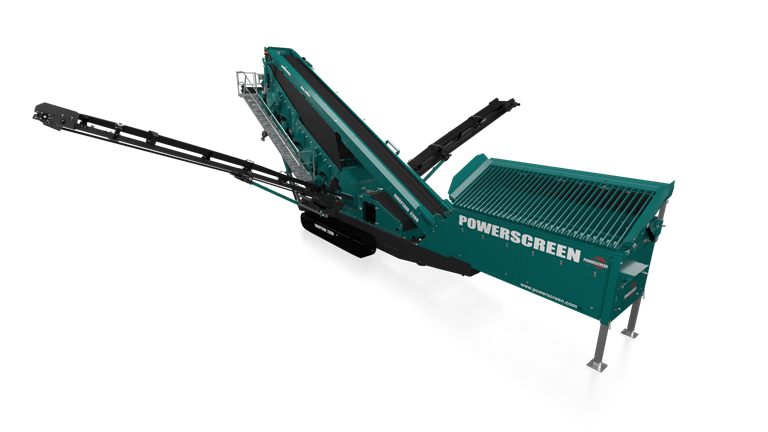

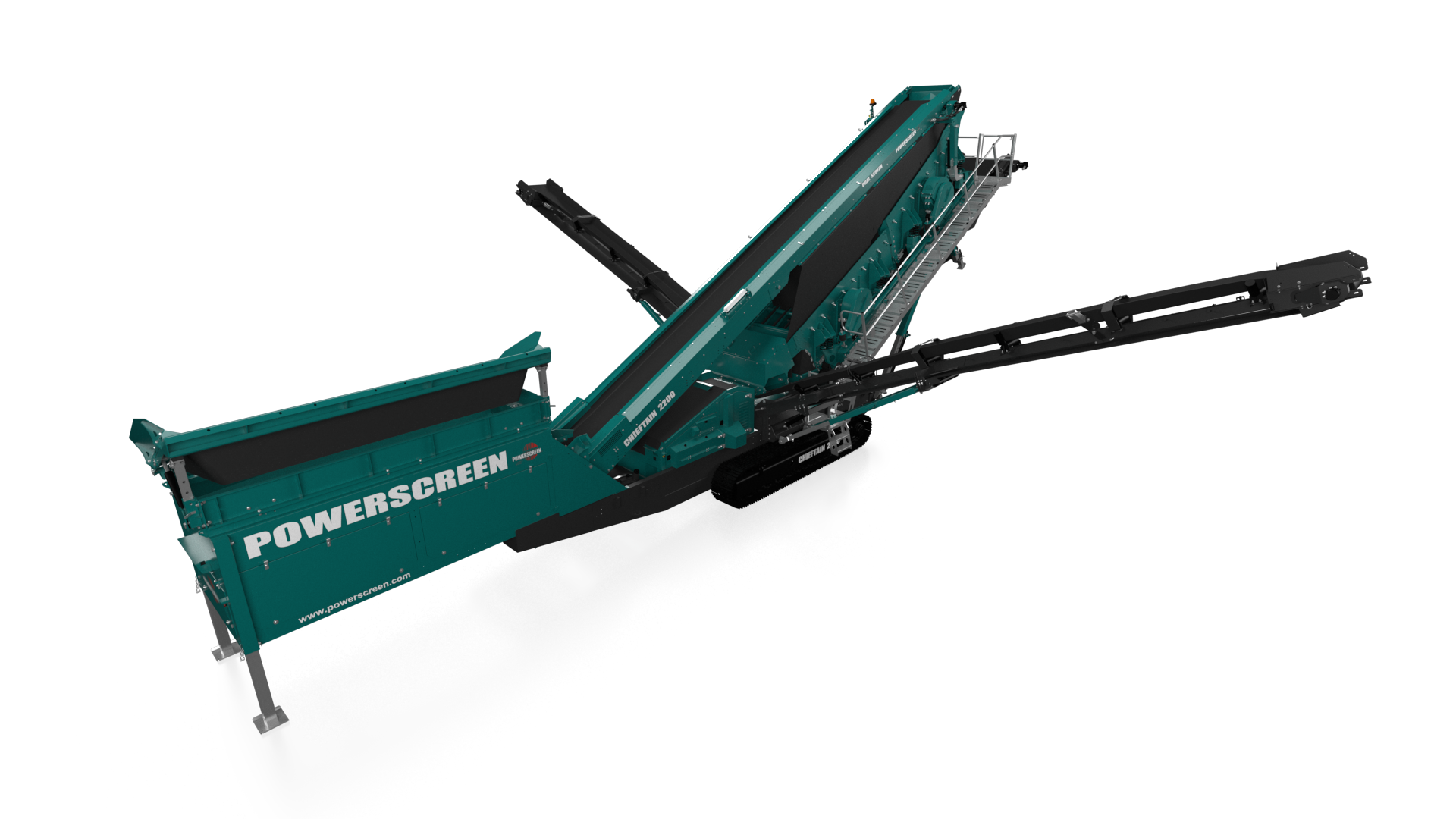

Chieftain 2200
The Powerscreen® Chieftain 2200 Incline Screen is designed for operators who require large volumes of high specification products with maximum versatility. The Powerscreen Chieftain 2200 has two highly versatile double deck screenboxes which provide a total screening area of 19.5m2. It has a revolutionary patent pending drive system which allows switching between 2 and 4 bearing with bolt-on parts. The maximum variability of the Chieftain offers improved capabilities over its class rivals, especially in sticky scalping applications. User benefits include a quick set-up time (typically under 30 minutes) with hydraulically folding conveyors and track mobility. Its high aggression screenboxes handle dirty, sticky material with ease.
3️⃣Chieftain 2200 can also be configured with a 3 deck screen

Hopper
- Hopper capacity with grid: 6.9m3 (9 cu. yd.)
- Hopper capacity without grid: 6.2m3 (8.1 cu. yd.)

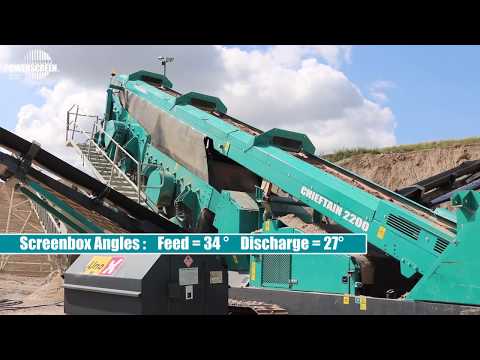

Screenbox
- Grease filled 4 bearing setup
- Size: 2 of 3.3 m x 1.55m (11’ x 5’)
Feed Conveyor
- Width: 1200mm (48’’)
- Hydraulic variable speed control
Main Conveyor
- Width: 1050mm (42”)
- Hydraulically adjustable conveyor, fully skirted & sealed

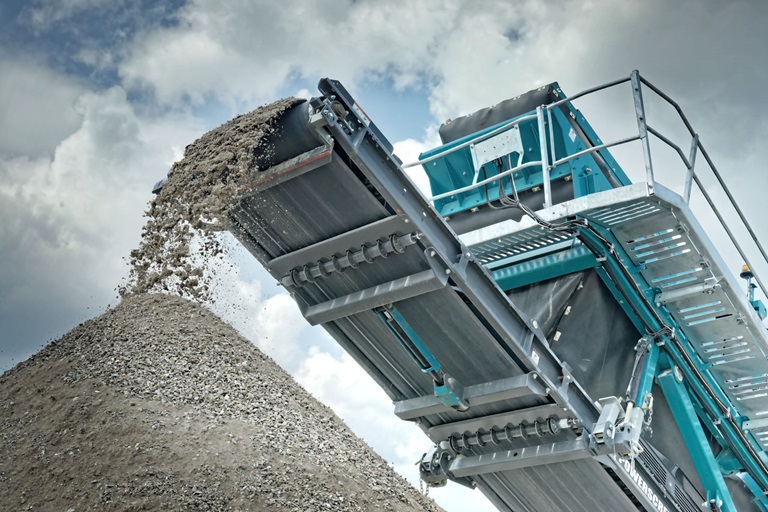

Tail Conveyor (finesize)
- Width: 1200mm (48”)
- Stockpile height: 4.7m (15’ 5’’)
Side Conveyors (Mid-finesize & Mid-oversize)
- Width: 800mm (32”)
- Stockpile height: 4.95m (16’ 2”)
Power Unit
- Tier 3 Equivalent: CAT C4.4 83 kW (111.3hp)
- Tier 4F / Stage IV: CAT C3.6 82 kW (110hp)
- Stage V: CAT C3.6 82 kW (110hp)
- Fuel Tank Capacity: 336L (88 US Gal)
Tracks
- Width: 500mm (1’ 8’’)
Technical Documentation
Productivity
Measurements
- Output Potential: up to 650 tph (715 US tph)
- 2 x double deck screenboxes
- Patent pending drive system to switch between 2 and 4 bearing arrangements
- Radio controlled tipping grid
- Integrated high capacity variable speed belt feeder
- Heavy duty single shaft screenboxes with adjustable stroke, angle and speed
- Hydraulic screen tensioning (bottom deck)
- Screen walkway and access ladder
- Hydraulic folding conveyors with excellent stockpiling capacity
- Double deck vibrating grizzly
- Radio controlled tracking
- Anti roll-back
- Dual Power
- Auto lubrication system
- Dust suppression
- Quick release wedge tensioning (top decks)
