Chieftain 1700X

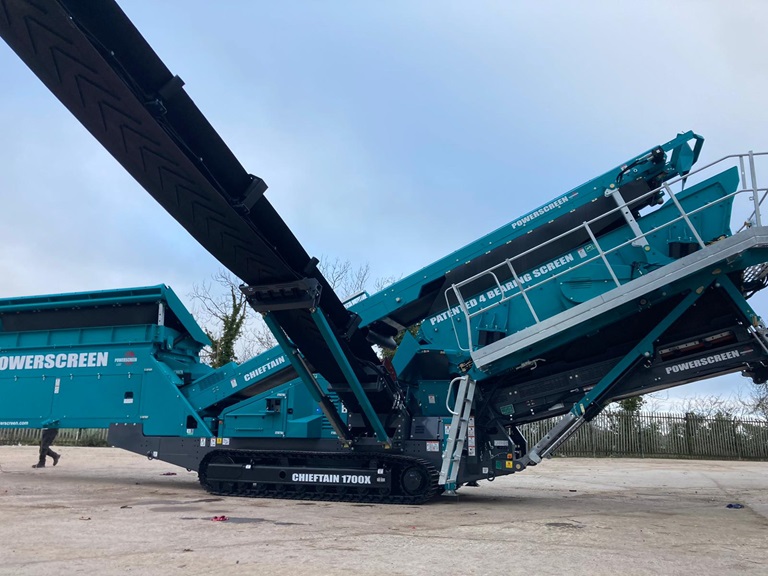

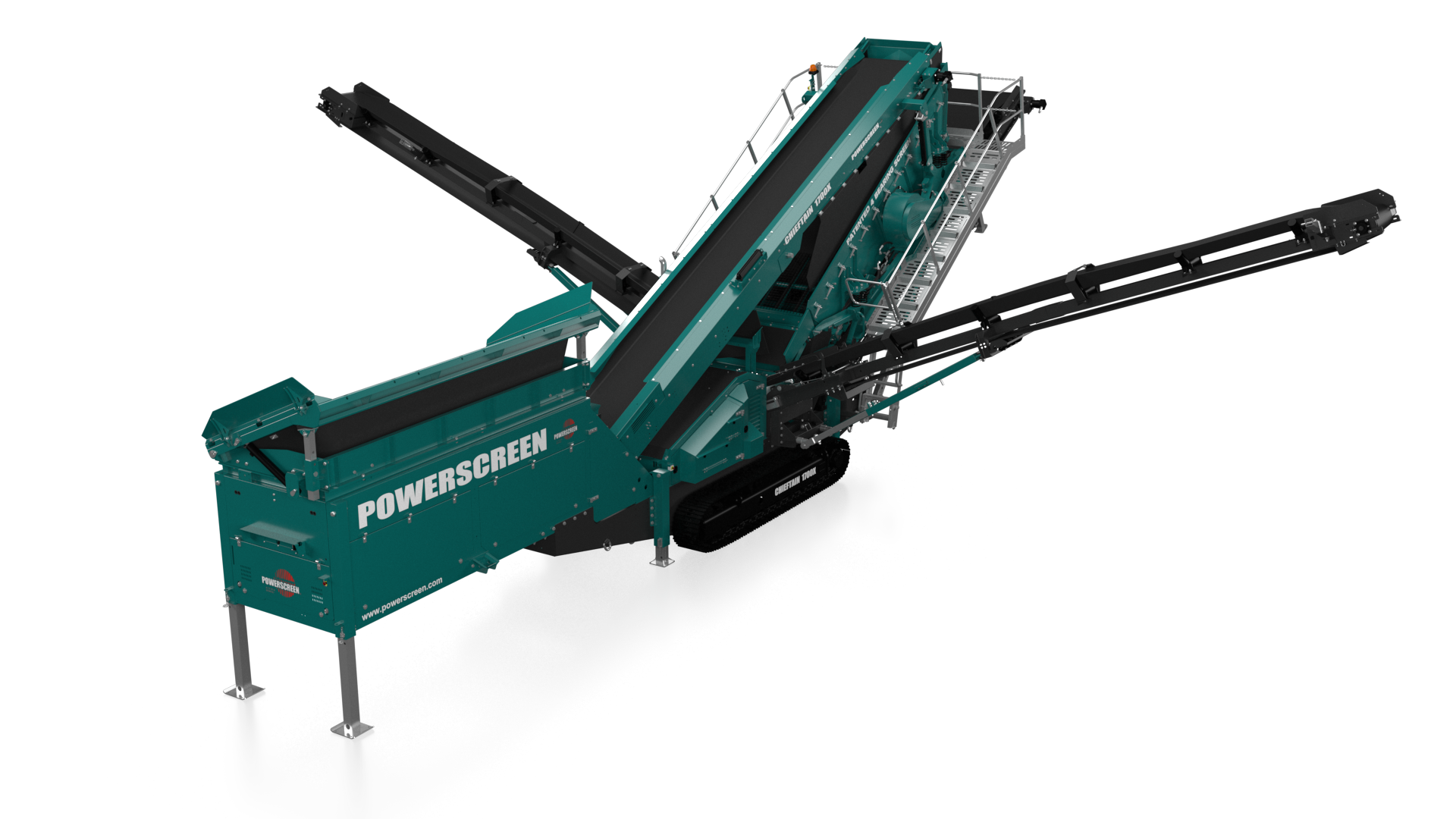

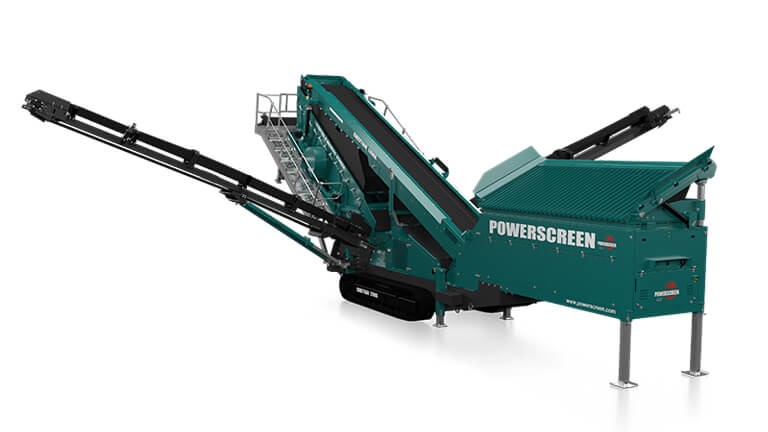

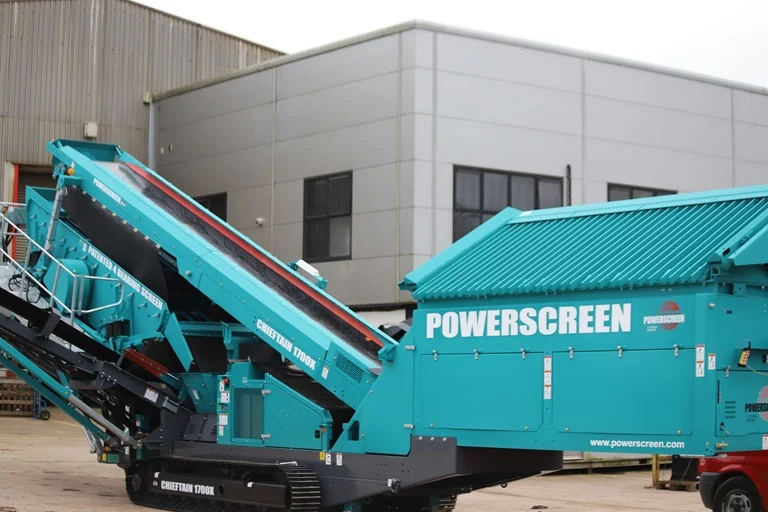

The Powerscreen® Chieftain 1700X is a mid-sized track mobile screen aimed at end users requiring high volumes of finished products in applications including topsoil, coal, crushed stone, recycling, iron ore, sand and gravel. User benefits include a quick set-up time, drop down tail conveyor and screen mesh access system to aid screen media changes and a transverse powerunit arrangement to simplify servicing.
⚡This machine is available with Electric/Hybrid drive
3️⃣Chieftain 1700X can also be configured with a 3 deck screen

Hopper
- Hopper capacity with grid: 6.7m3 (8.75 cu. yd.)
- Hopper capacity without grid: 4.67m3 (6.1 cu. yd.)
Screenbox
- 4 bearing as standard
- Size: 4.8m x 1.5m (16’ x 5’)
Feed Conveyor
- Width: 1050mm (42’’)
- Hydraulic variable speed control
Main Conveyor
- Width: 1050mm (42”)
- Hydraulically adjustable conveyor, fully skirted & sealed
Tail Conveyor (finesize)
- Width: 1200mm (48”)
- Stockpile height: 4.23m (13’ 10’’)
Side Conveyors (Mid-finesize & Mid-oversize)
- Width: 650mm (26”)
- Stockpile height: 4.72m (15 ’6”)
Power Unit
- Tier 3: CAT C4.4 77 kW (104hp)
- Tier 4F / Stage IV: CAT C3.6 82 kW (110hp)
- Stage V: CAT C3.6 82 kW (110hp)
- Fuel Tank Capacity: 336L (88 US Gal)
Tracks
- Width: 400mm (1’ 4’’)
Technical Documentation
Measurements
Productivity
- Output potential: up to 500 tph (551 US tph)
- Radio controlled tipping grid
- Integrated high capacity variable speed belt feeder
- Grease filled 2 bearing screen box
- Heavy duty single shaft screenbox with adjustable stroke, angle & speed
- Screen walkway & access ladder
- Hydraulic folding conveyors with excellent stockpiling capacity
- Engine protection shutdown system
- Double deck vibrating grizzly
- Radio controlled tracks
- Dual power (additional electric hydraulic drive)
- Roll-in bogie prepared
- Roll-in bogie equipped
- Quick release screen wedge tensioning
- Anti roll-back
- Auto lubrication system
- Dust suppression
- Extended recirculation conveyor attached for transport (3 deck)
- Hydraulic screen tensioning (Bottom Deck)
