Trakpactor 260SR
Impact Crusher
|
|
|
|---|---|
Specifications |
|
|
250 tph* (275 US tph) 250 tph* (275 US tph) |
|
Width: 9'10" Length: 48'8" Height: 10’6” Width: 3m Length: 14.8m Height: 3.2m |
|
Width: 19'1" Length: 51'10" Height: 12'8" Width: 5.8m Length: 15.8m Height: 3.86m |
|
Tier 3: 71,650lbs Tier 4F: 74,847lbs Tier 3: 32,500kg Tier 4F: 33,950kg |

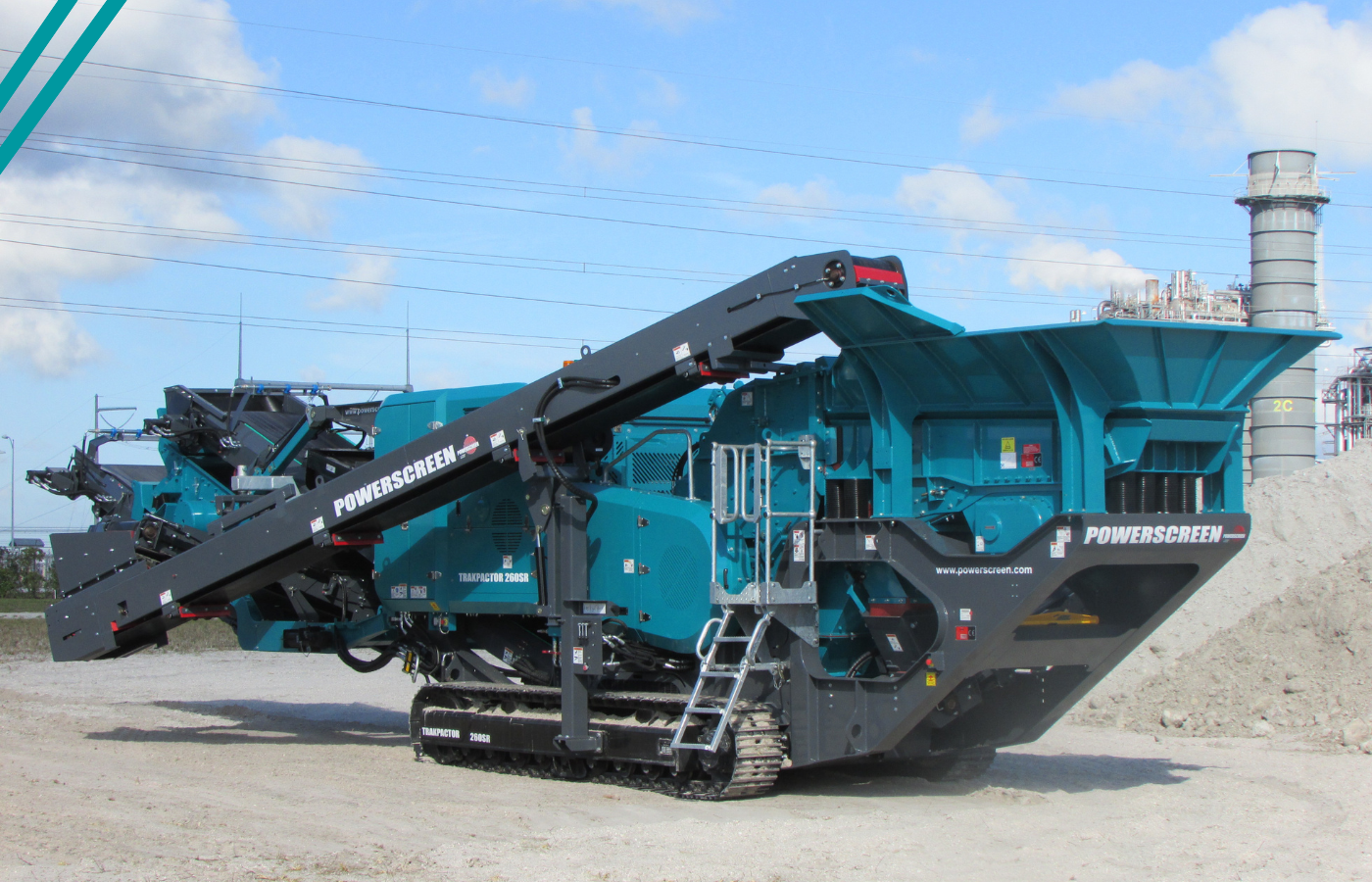

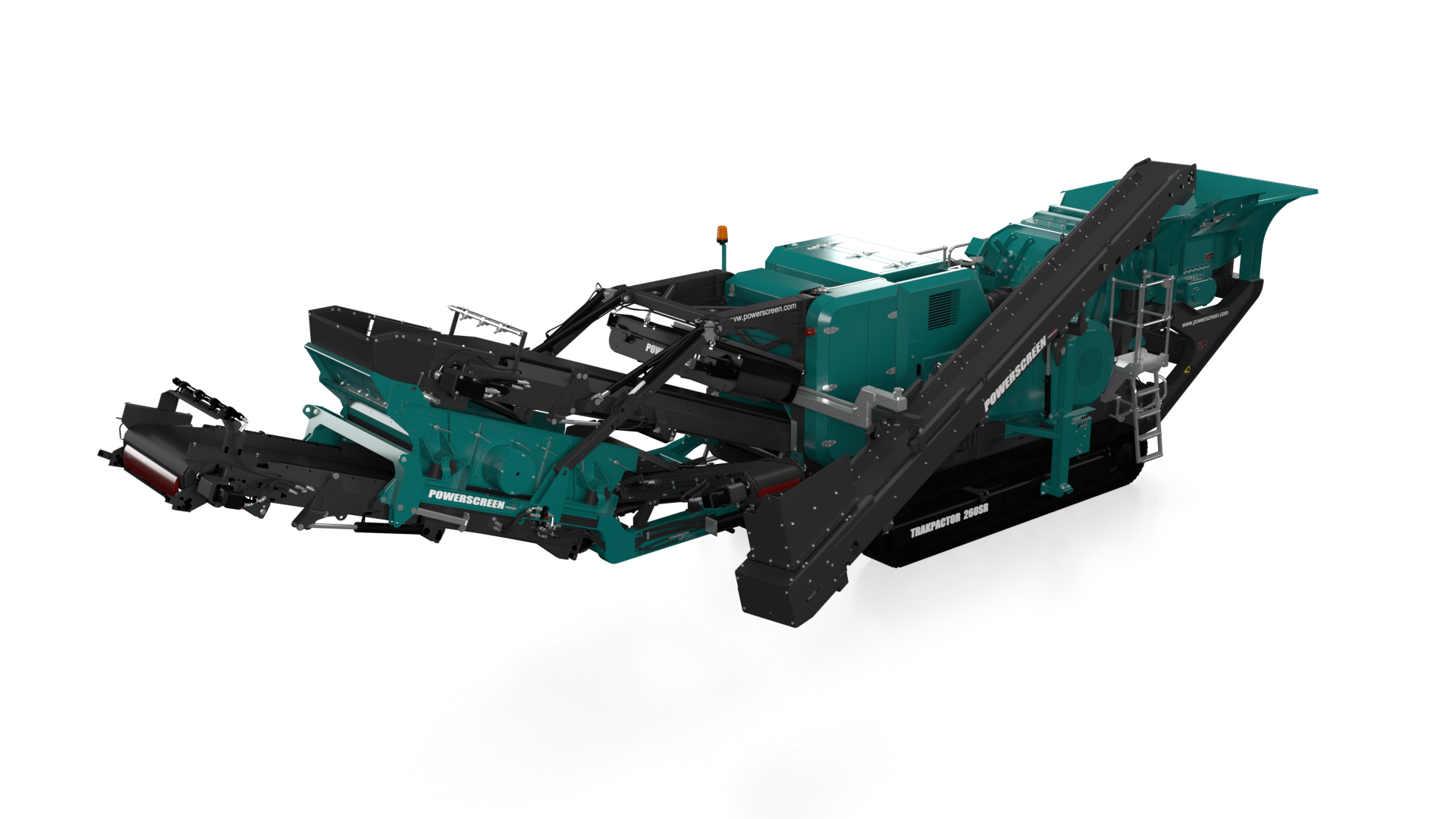

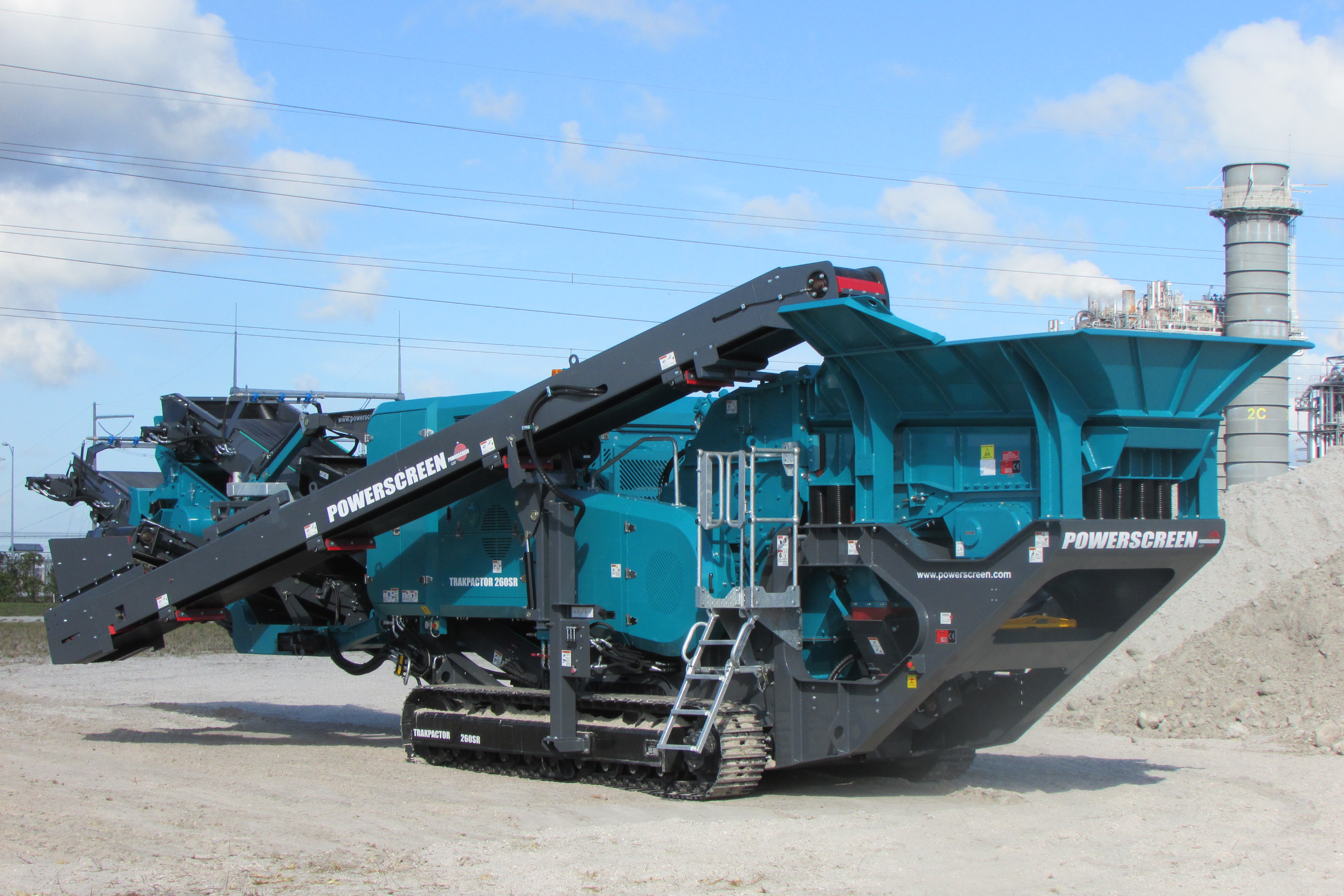

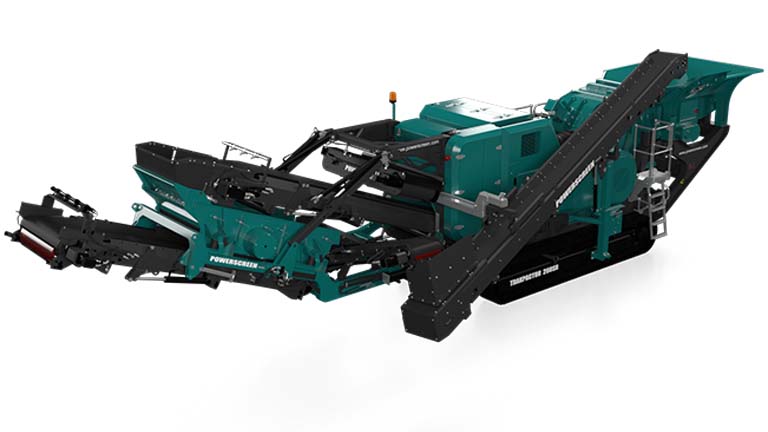

The Powerscreen® Trakpactor 260SR is a compact impact crusher which has been designed to offer excellent reduction and high consistency of product yield. With its compact design and ease of mobility, the Trakpactor 260SR is primarily suited to recycling, demolition, and mining applications. A post-screen system and recirculating conveyor allows oversize material to be passed back to the crusher for further sizing.
Additional Specifications
CSS Range - Min lower: .75" Max lower: 1.6" Min upper: 2" Max upper: 4.7" (Imperial) | Min lower: 20mm Max lower: 40mm Min upper: 50mm Max upper: 120mm (Metrics)
