Trakpactor 320SR
Impact Crusher
|
|
|
|---|---|
Specifications |
|
|
320 tph (352 US tph) 320 tph (352 US tph) |
|
Width: 10'2" Length: 57'8" Height: 11'4" Width: 3.1m Length: 17.58m Height: 3.4m |
|
Width: 19'1" with side conveyor Length: 56'6" Height: 15'5" Width: 5.82m with side conveyor Length: 17.22m Height: 4.7m |
|
Tier 4F VGF: 102,647lbs Tier 4F Pre-screen: 112,436lbs Tier 4F VGF: 46,560kg Tier 4F Pre-screen: 51,000kg |

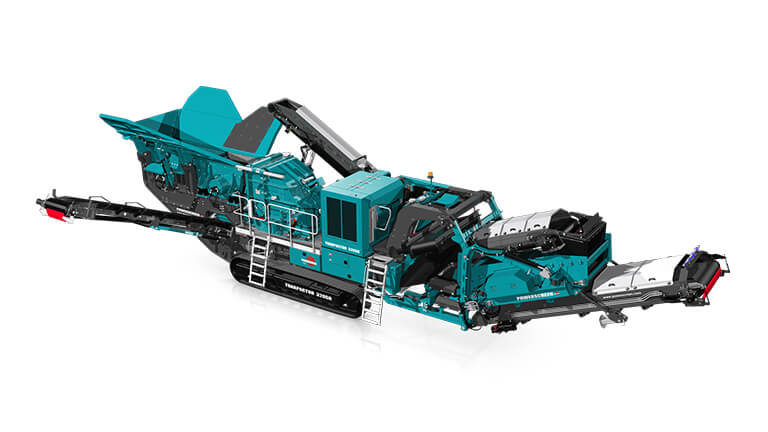

The Powerscreen Trakpactor 320SR is a mid-sized impactor redesigned with key enhancements to offer operators and contractors excellent reduction and high consistency of product shape. Powerscreen® Trakpactor 320SR features a screen and recirculating (SR) conveyor which returns oversized product to the crusher for further reduction. The plant features a quick-detach post-screen section which converts it to a standard Trakpactor 320 unit. Another key feature is the recirculating conveyor which raises for transport allowing more ground clearance under the machine when moving on site and while loading for transport.
Additional Specifications
CSS Range - Min lower: .75" Max lower: 2" Min upper: 3" Max upper: 6" (Imperial) | Min lower: 20mm Max lower: 50mm Min upper: 75mm Max upper: 150mm (Metrics)
Features and Benefits
- Crusher chamber: Patented hydraulic overload protection and adjustment system.
- Load management system to control feeder speed
- Bolt in cartridge grizzly – 42mm nominal spacing
