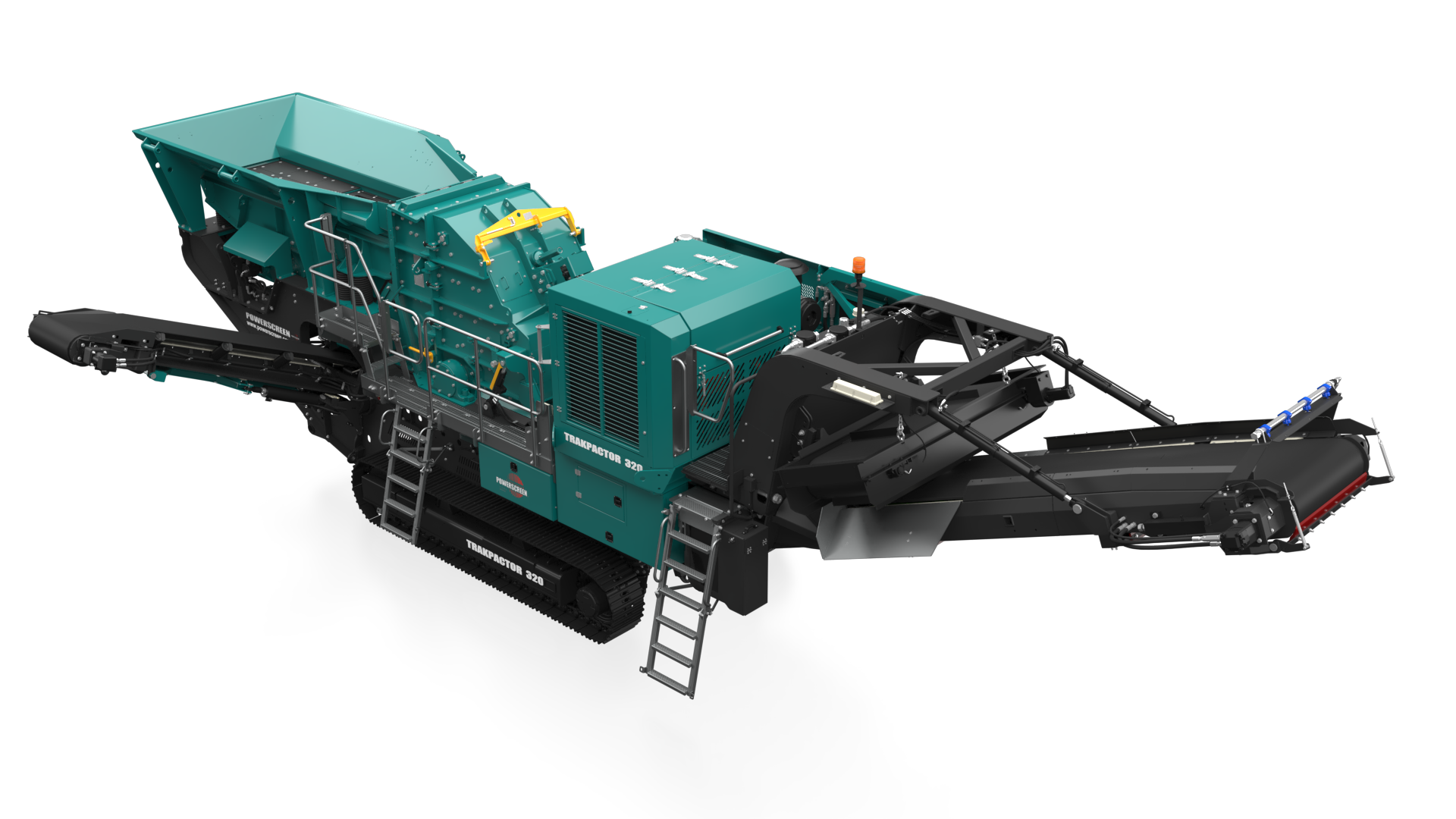

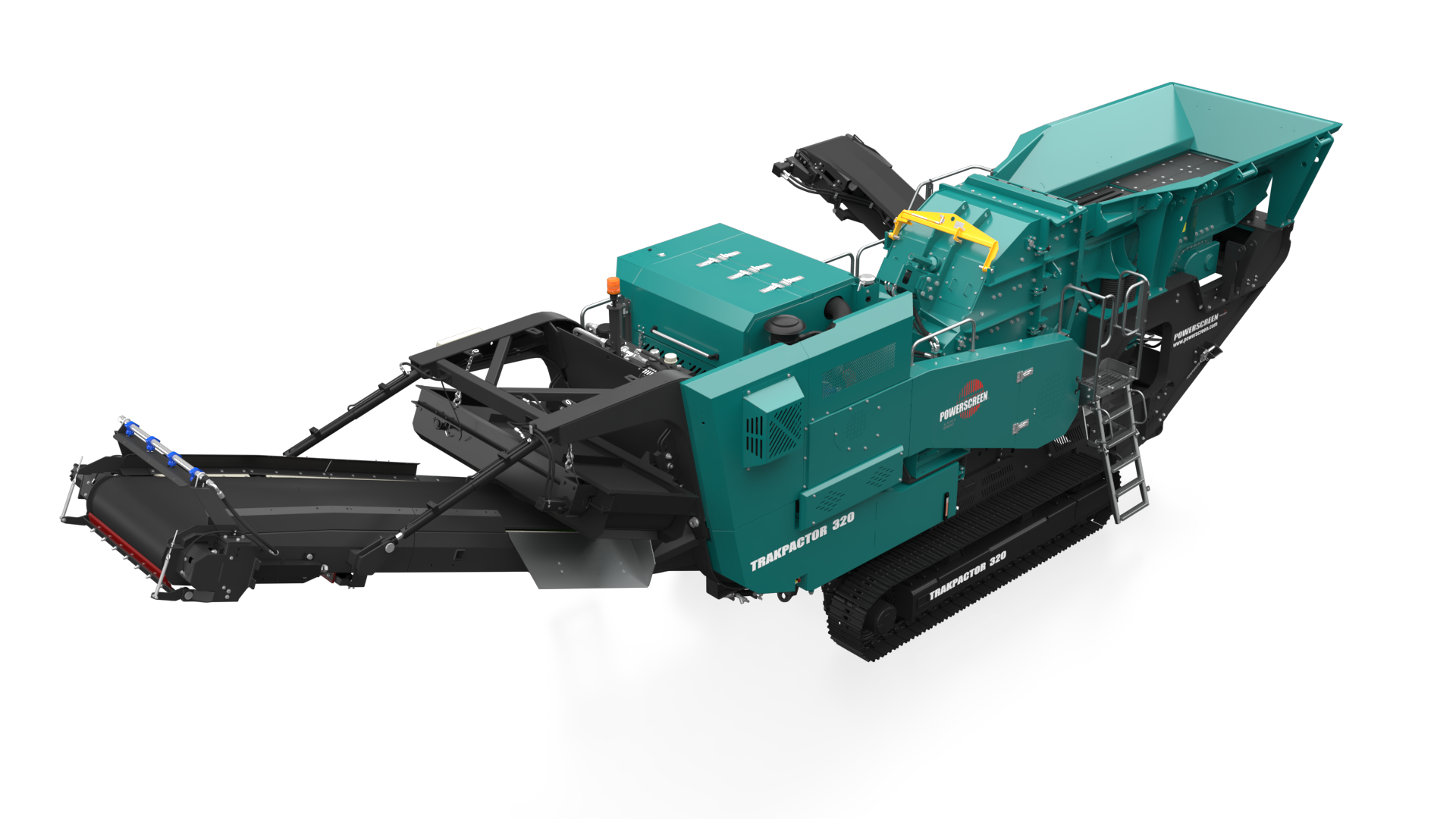

Trakpactor 320
Impact Crusher
|
|
|
|---|---|
Specifications |
|
|
320 tph (352 US tph) 320 tph (352 US tph) |
|
Width: 8'5" Length: 48'6" Height: 11'4" Width: 2.57m Length: 14.78m Height: 3.46m |
|
Width: 18'2" with bypass conveyor Length: 47'1" Height: 12'8" Width: 5.53m with bypass conveyor Length: 14.36m Height: 3.85m |
|
Tier 4F VGF: 80,601lbs Tier 4F Pre-screen: 84,128lbs Tier 4F VGF: 36,560kg Tier 4F Pre-screen: 38,160kg |
The Powerscreen® Trakpactor 320 is a mid-sized horizontal impact crusher designed to offer operators and contractors both excellent reduction and high consistency of product shape for performance in quarry and recycling applications. With track mobility, the impactor is capable of working in the most demanding environments and features a rapid set-up time, fuel efficient direct drive system, and excellent throughput capacity. The Trakpactor 320 comes standard with Powerscreen Pulse telematics system for machine performance monitoring.
Additional Specifications
CSS Range - Min lower: .75" Max lower: 2" Min upper: 3" Max upper: 6" (Imperial) | Min lower: 20mm Max lower: 50mm Min upper: 75mm Max upper: 150mm (Metrics)
Downloads
Image and Video Gallery
Related Products
-
![Trakpactor-260-impact-crusher]()
-
![trakpactor-260sr-impact-crusher]()
Trakpactor 260SR
The Powerscreen® Trakpactor 260SR is a compact impact crusher which has been designed to offer excellent reduction and high consistency of product yield. With its compact design and ease of mobility, the Trakpa...
-
![Powerscren Trakpactor 500SR Impact Crusher]()
Trakpactor 550SR
The Powerscreen® Trakpactor 550SR is a tracked impact crusher which is versatile, efficient and highly productive. It offers both excellent reduction and a high consistency of product yield in quarrying, recycl...
-
![trakpactor-550-impact-crusher]()
Trakpactor 550
The Powerscreen® Trakpactor 550 horizontal shaft impactor is designed for processing soft to medium-hard primary & secondary materials such as natural rock & construction derived materials like asphalt, recycli...
-
![sv-350-impact-crusher]()
XV350
The Powerscreen® XV350 vertical shaft impactor has been designed for users who require a plant that excels at producing high specification, shaped product. The machine is economical to operate with a highly fue...
-
![trakpactor-320sr-impact-crusher]()
Trakpactor 320SR
The Powerscreen Trakpactor 320SR is a mid-sized impactor redesigned with key enhancements to offer operators and contractors excellent reduction and high consistency of product shape. Powerscreen® Trakpactor 32...
-
![TP290SR]()
Trakpactor 290SR
The Powerscreen Trakpactor 290SR Impact Crusher performs in the most challenging of applications such as construction and demolition, asphalt, concrete, and natural rock. The compact design allows it to operat...
-
![Powerscreen Trakpactor 290 Impact Crusher]()

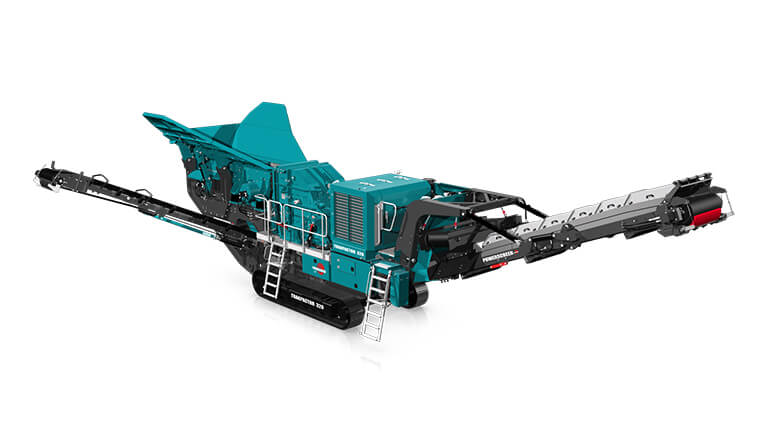

Trakpactor 290
