Trakpactor 550SR
Impact Crusher
|
|
|
|---|---|
Specifications |
|
|
500tph (550 US tph)* 500tph (550 US tph)* |
|
Width: 11'4" Length: 70'4" Height: 12'6" Width: 3.46m Length: 21.45m Height: 3.8m |
|
Width: 22'11" with bypass conveyor deployed Length: 69'11" Height: 19'2" Width: 6.99m with bypass conveyor deployed Length: 21.31m Height: 5.83m |
|
Tier 3 VGF: 147,269lbs Tier 4F Pre-screen: 158,733lbs Tier 3 VGF: 66,800kg Tier 4F Pre-screen: 72,000kg |

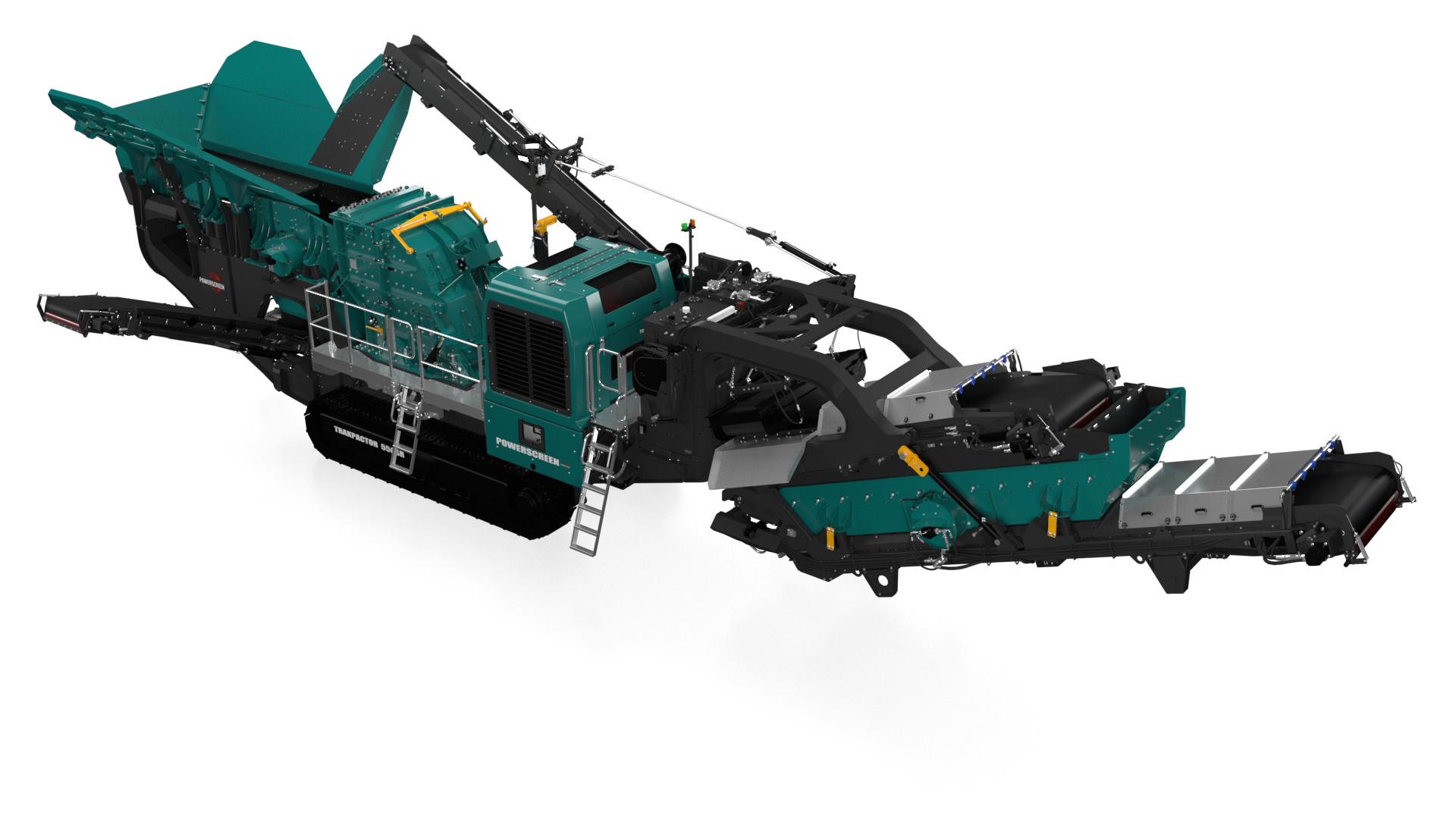

The Powerscreen® Trakpactor 550SR is a tracked impact crusher which is versatile, efficient and highly productive. It offers both excellent reduction and a high consistency of product yield in quarrying, recycling and demolition applications. The machine has been designed with excellent material flow and serviceability in mind. In addition, the machine can be configured for work safely and in record time as set-up is all carried out at ground level. The robust Terex impact chamber features c-shaped blowbars as standard for better impact and a time-saving hydraulic adjust option.
The SR section is fully detachable using quick release hydraulics and electrics. To enable this, the recirculation conveyor slews into transport position along the side of the machine. The recirculating conveyor can also slew from recirculating to stockpiling position.
Additional Specifications
CSS Range - Min lower: .75" Max lower: 8" Min upper: 1.4" Max upper: 8" (Imperial) | Min lower: 20mm Max lower: 200mm Min upper: 35mm Max upper: 200mm (Metrics)
