1400 Maxtrak

Cone Crusher

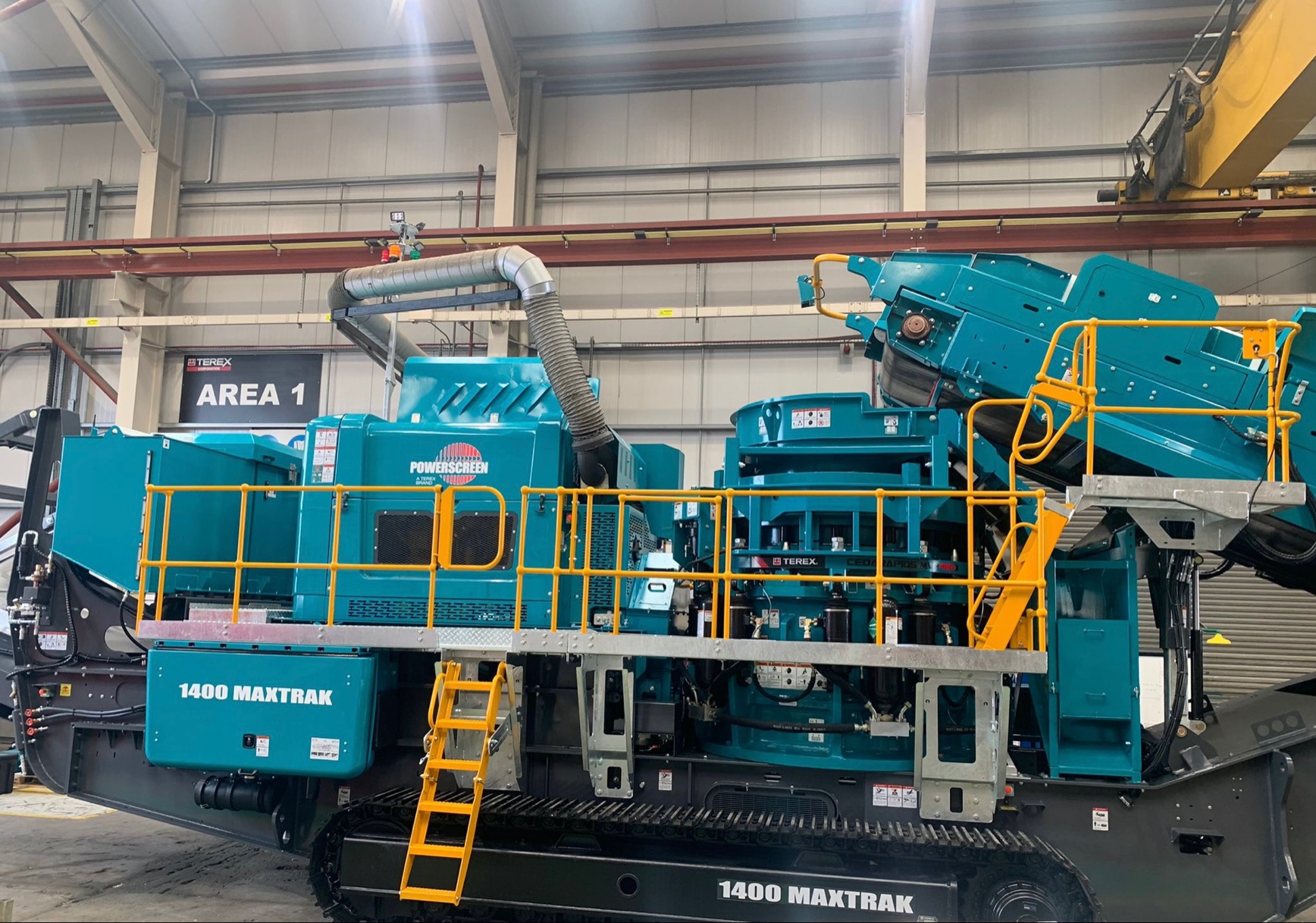

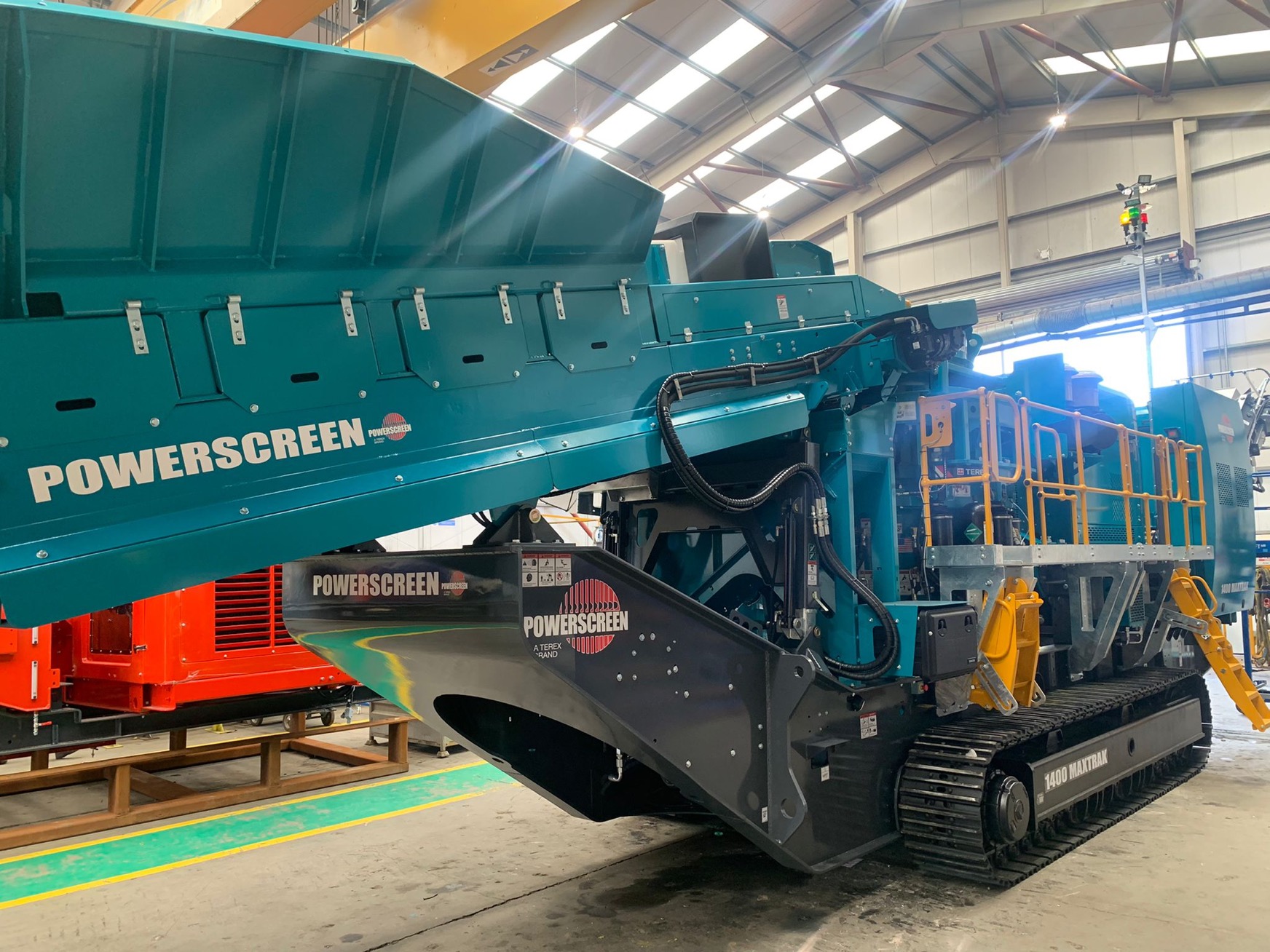

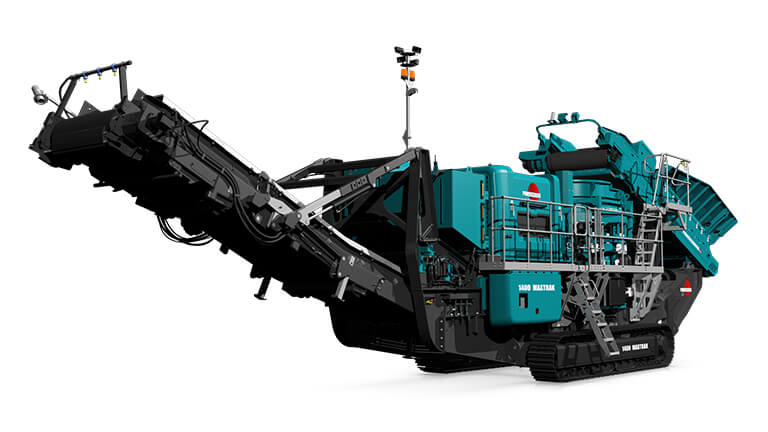

The Powerscreen 1400 Maxtrak is a large sized track mobile cone crusher, ideally suited to secondary applications such as taking an all-in feed from a primary crusher. The 1400 Maxtrak is fitted with the Terex MVP450X cone chamber and excels in the production of sub-base or aggregates, providing excellent cubicity, throughput, and reduction ratios.


Additional Specifications

 CSS Range - Min: 1/4" Max: 3" (Imperial) | Min: 6mm Max: 75mm (Metrics)

Features and Benefits
  • Radio controlled tipping grid
  • Integrated high capacity variable speed belt feeder
  • Grease filled 4 bearing, 2 deck screenbox
Specification Value
Output Potential 700 tph (772 US tph) / 700 tph (772 US tph)
Transport Dimensions Width: 9'10" Length: 55'9" Height: 13'1" / Width: 3m Length: 17m Height: 4m
Working Dimensions Width: 13'9" Length: 60'8" Height: 19'8" / Width: 4.2m Length: 18.5m Height: 6m
Weight 132,851lbs / 60,260kgs
