1150 Maxtrak

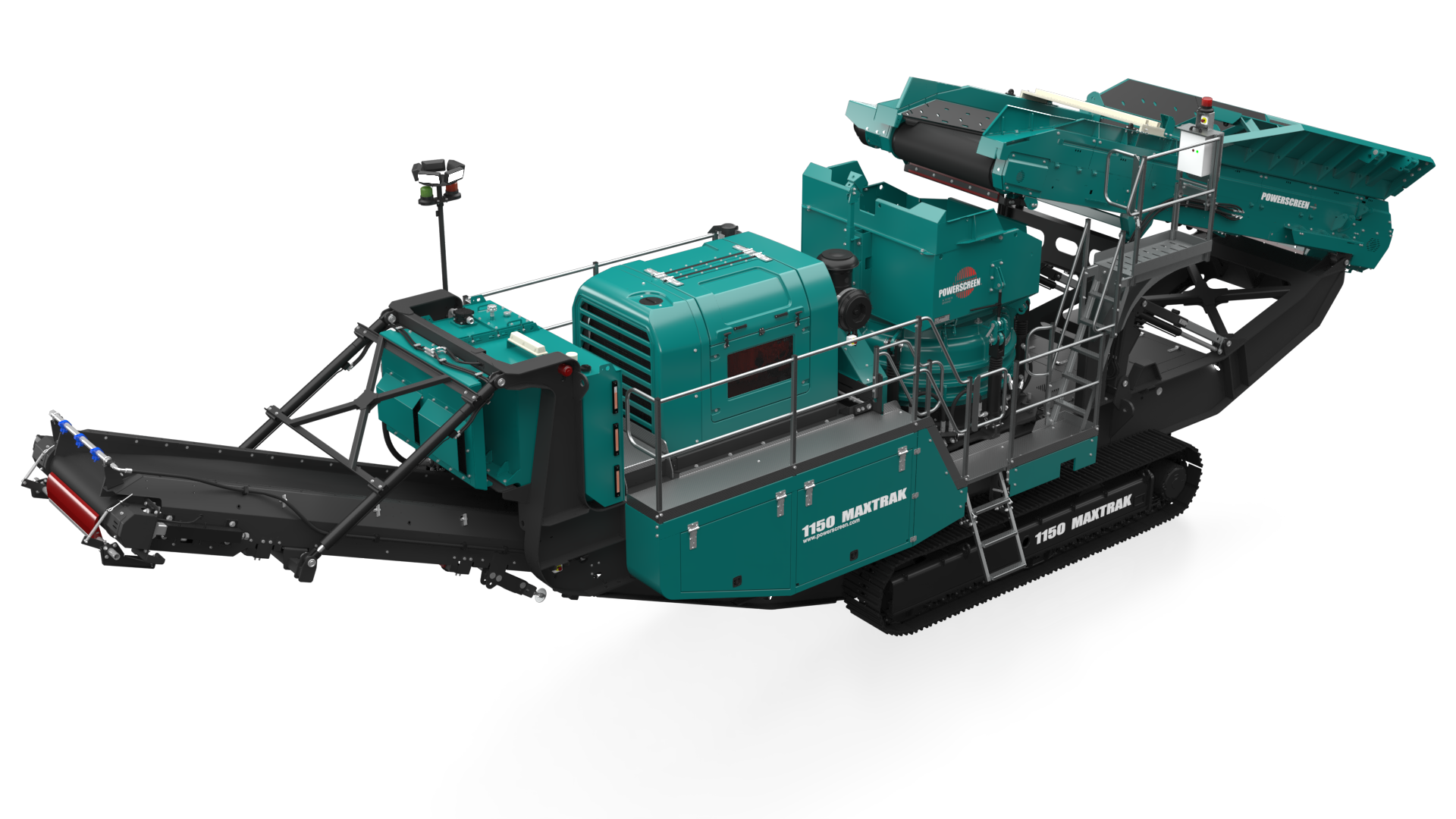

The Powerscreen 1150 Maxtrak is a high performance, medium sized track mobile cone crusher. At the heart of the Maxtrak is the Automax cone crusher with hydraulic setting, tramp release, and unblocking system.
Its unique crushing action provides excellent capacity, high reduction, and good product cubicity for the production of high-quality aggregate and sub-base materials. A level probe over the feed ring regulates the feed belt to ensure the cone chamber is choke fed, essential for maximum reduction, manganese life, and optimal product shape.

Crusher
- Crusher type: 1150 Automax® crusher
- Max feed size: 220mm (8.7”)
- Max CSS: 45mm (1.8”)
Power Unit
- Tier 3 Equivalent: CAT C-13 ACERT, 328 kW (440hp)
- Fuel tank capacity: 1000L (264 US Gal)
Product Conveyor
- Width: 1000mm (40”)
- Discharge height: 3.3m (10’ 10”)
Tracks
- Width: 500mm (1’ 8”)
Hopper
- Fixed, tapered hopper to aid material flow
- Hopper length: 3.5m (11’ 6”)
- Hopper width: 2.25m (7’ 5”)
- Hopper capacity: Up to 6m3 (7.8 cu. yd.)
Technical Documentation
Measurements
Productivity
- Output potential up to 300tph (330 US tph)
- Renowned Automax® crusher technology
- Accepts clean all in feed
- Excellent product shape
- High reduction ratio
- Cone feed box level control to maintain choke feeding
- Hydraulic crusher setting
- Cone overload protection
- Heavy duty chassis and track frame
- Metal detector
- Dust suppression system
- Direct drive – increased fuel efficiency and reduced operating costs
- Concaves: extra coarse, medium coarse, fine
- Short throw eccentric
- Camera over crusher
- Feed hopper extension plates
- Product conveyor dust covers
- Product conveyor stockpile sensor
- Product conveyor belt weigher
- Cold climate oils
- Hot climate oils
- Hot climate coolers
- Electric re-fuelling
- Hydraulic water pump
- Radio remote control
- Lighting mast
- Control panel positive air pressurization
