1000 Maxtrak
Cone Crusher
|
|
|
|---|---|
Specifications |
|
|
230tph (253 US tph)* 230tph (253 US tph)* |
|
Width: 9'2" Length: 47'11" Height: 11'4" Width: 2.8m Length: 14.6m Height: 3.45m |
|
Width: 11'4" Length: 47'11" Height: 13'5" Width: 3.46m Length: 14.6m Height: 4.1m |
|
Tier 3: 67,108lbs Tier 4: 70,151lbs Tier 3: 30,440kgs Tier 4: 31,820kg |

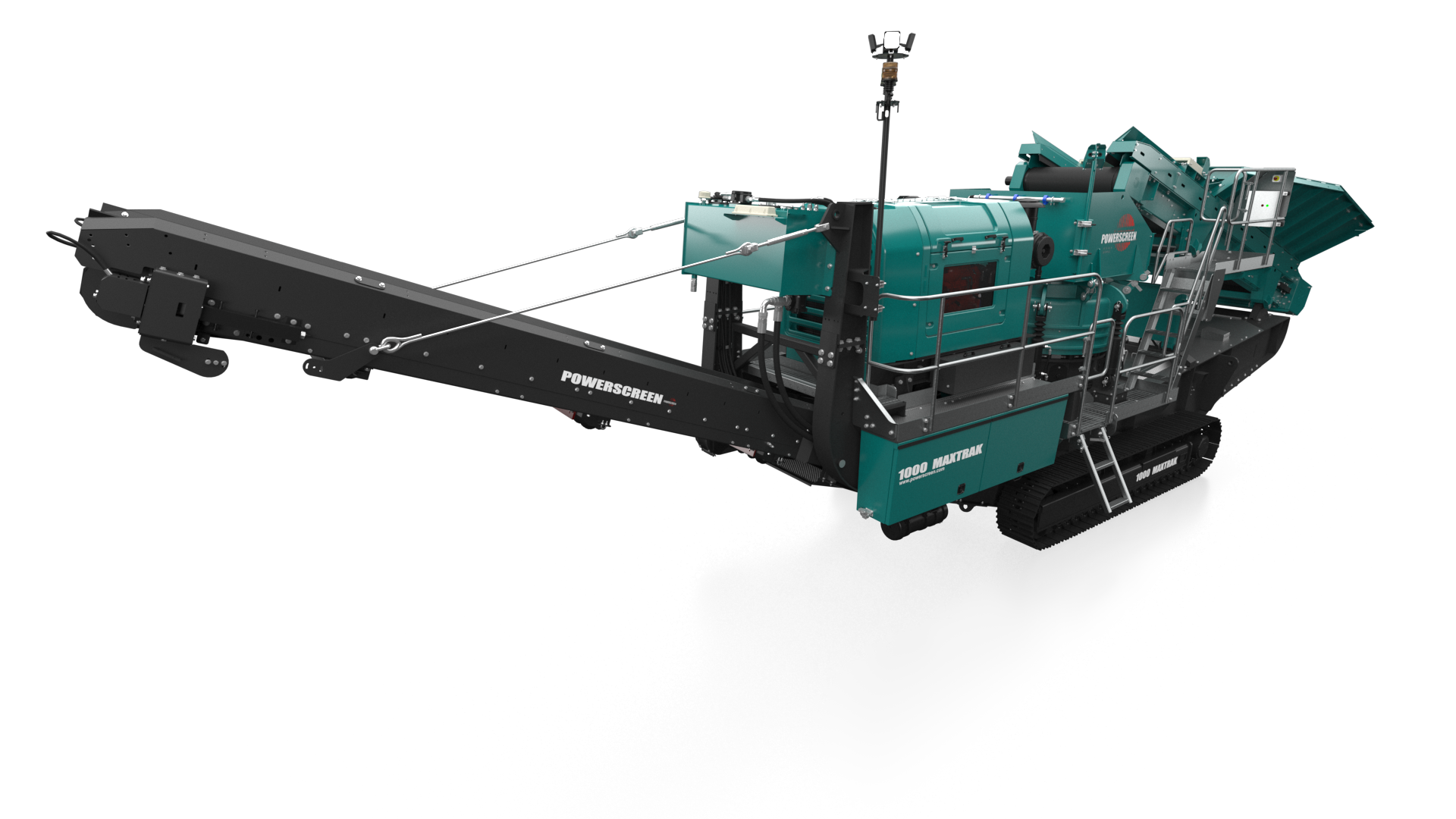

The high performance Powerscreen® 1000 Maxtrak portable rock crusher has been designed for direct feed applications without pre-screening on clean rock. At the heart of the Maxtrak is the Automax cone crusher with hydraulic setting, tramp release, and unblocking system. Its unique crushing action provides excellent capacity, high reduction, and good product cubicity for the production of high quality aggregate and sub-base materials.
Additional Specifications
CSS Range - Min: 0.7" Max: 1.6" (Imperial) | Min: 18mm Max: 38mm (Metrics)
Features and benefits
- Output Potential: up to 230 tph (253 US tph)
- Renowned Automax® crusher technology
- Accepts clean all in feed
