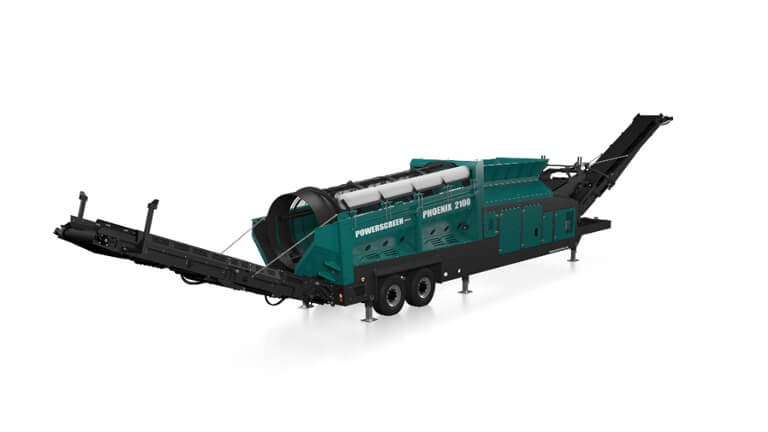

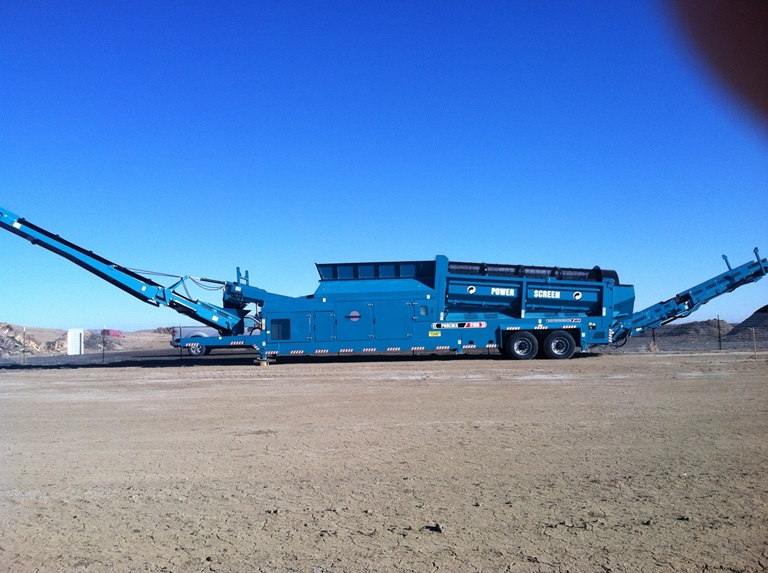

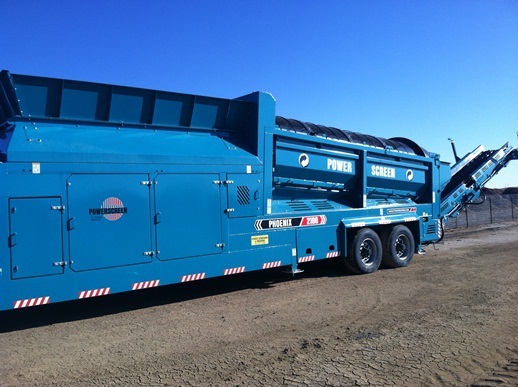

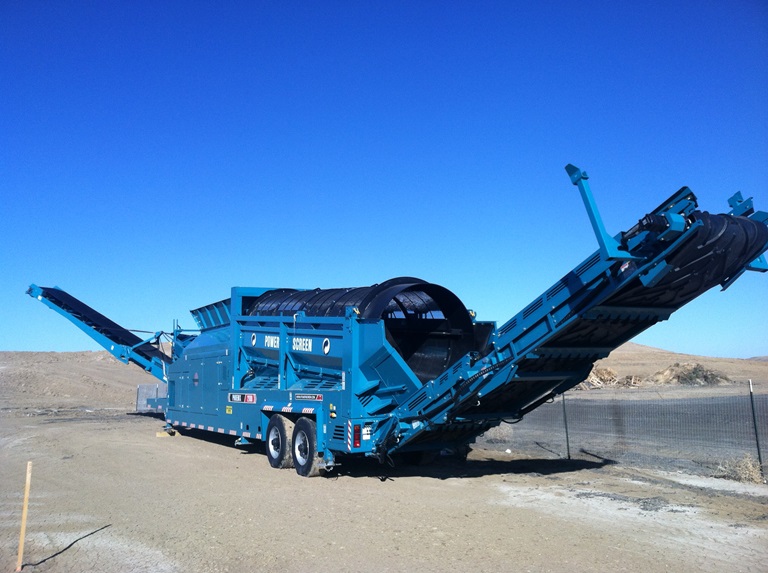

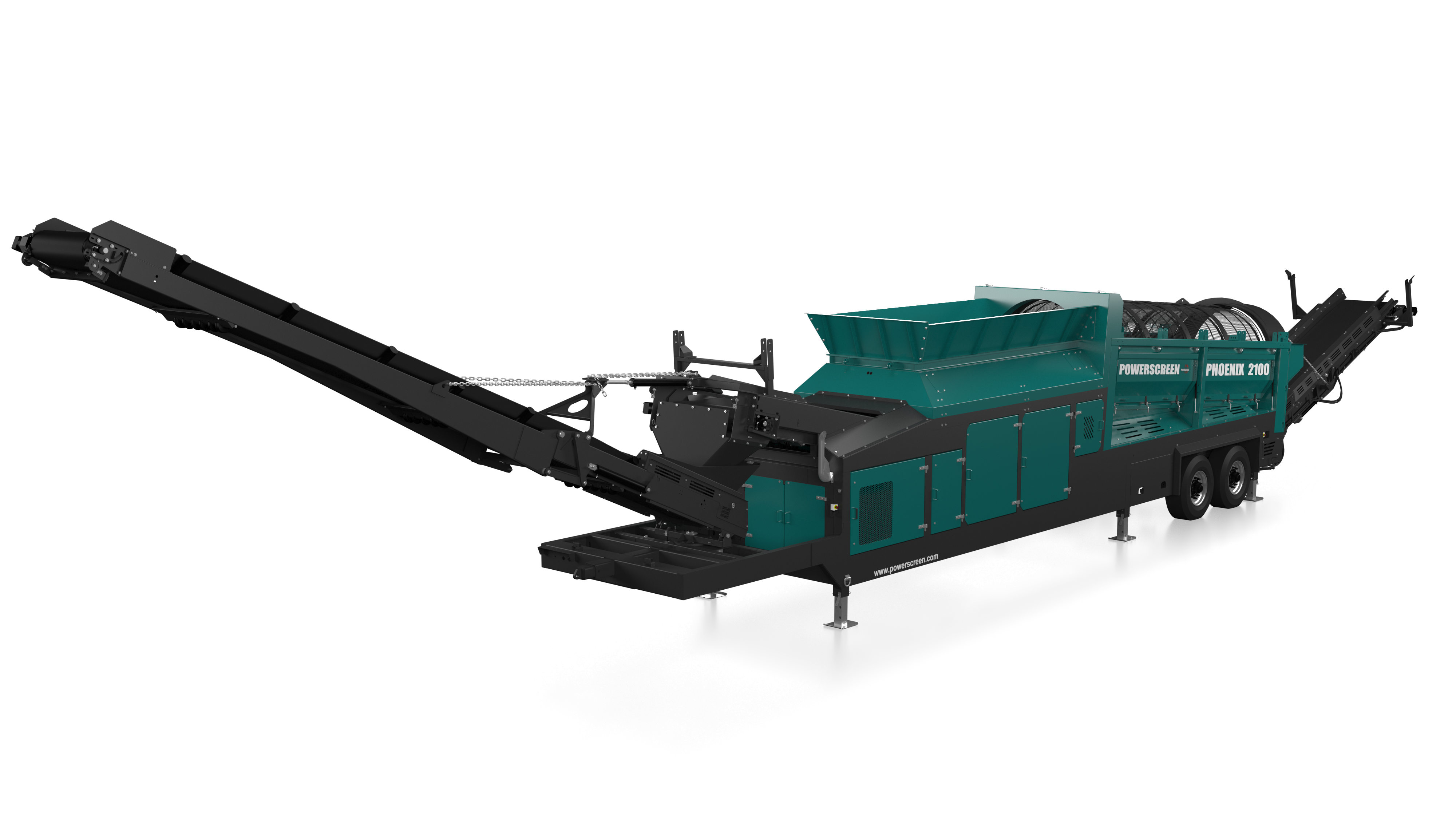

Phoenix 2100 Wheeled
The Powerscreen Phoenix 2100 Wheeled Trommel Screen is designed to offer unrivalled production throughput and application flexibility. The robust design with optional features such as a heavy duty tipping grid or double deck vibrating grid make the Phoenix 2100 the most versatile trommel on the market today.
The machine performs equally well in heavy C&D applications as it does in high volume compost production.
Feeder/Hopper
- 1050mm (41”) belt feeder
- Hopper capacity: 5.6m³ (7.4yd³)
Drum
- 6.45m (21’ 2”) Length
- 1.94m (6’ 4”) Diameter
- 29.3m3 (316ft2 ) screening area
Power Unit
- Engine Tier 3 Equivalent: C7.1 Tier 3, 151kW (202 hp)
- Engine Tier 4F: C4.4 Tier 4F 129kW (173hp)
- Stage V: C4.4 Stage V 129kW (173hp)
Oversize Conveyor
- Width: 1050mm (41”)
- Discharge Height: 3.7m (12’ 2”)
Fines Discharge Conveyor
- Width: 900mm (35”)
- Discharge Height: 5.67m (18’ 7”
Technical Documentation
Measurements
Transport Height
13 ft 10 in
4 m
Transport Length
58 ft 9 in
17 m 90 cm
Working Height
18 ft 8 in
5 m 70 cm
Working Length
90 ft 7 in
27 m 60 cm
Working Width
52 ft 2 in
15 m 90 cm
Transport Width
8 ft 6 in
2 m 60 cm
- Remote control tipping grid 100mm (4”)
- Remote control tipping grid 150mm (6”)
- 2 Deck vibrating grid c/w tri-axle bogie
- Tipping grid discharge chute
- Heavy duty woven mesh
- Punch plate
- Heavy duty feeder belt
- Tri-axle bogie
- Different colour paint
- Powerscreen Pulse

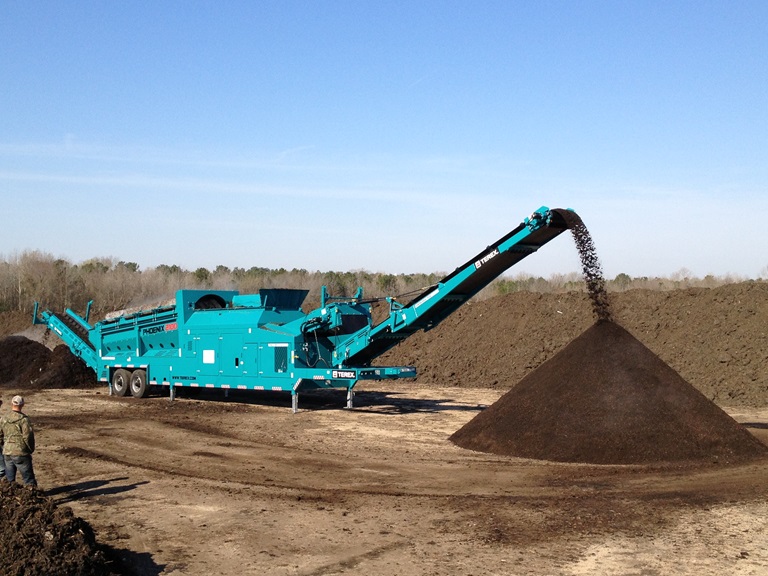

- The 180° swivel fines conveyor, with a discharge height of 5.7m (18’6”) results in the creation of impressive stockpiles.
- This swivel feature can be controlled via a remote while the machine is in operation, minimising downtime.
- The powerful four wheel drive system with high performance friction grip wheels is used to turn the trommel drum giving operators the ability to run bi-directionally.
- Powerful hydraulics provide excellent service access.
- Discharge height of up to 3.7m (12' 2")
