Phoenix 3300 Wheeled

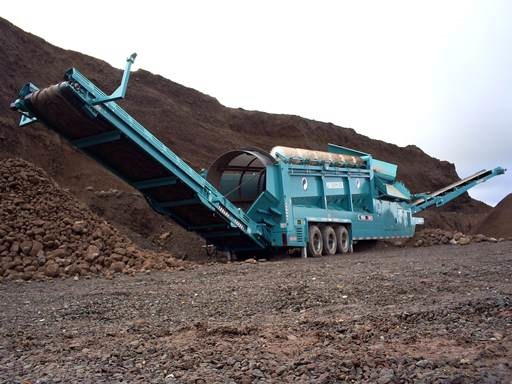

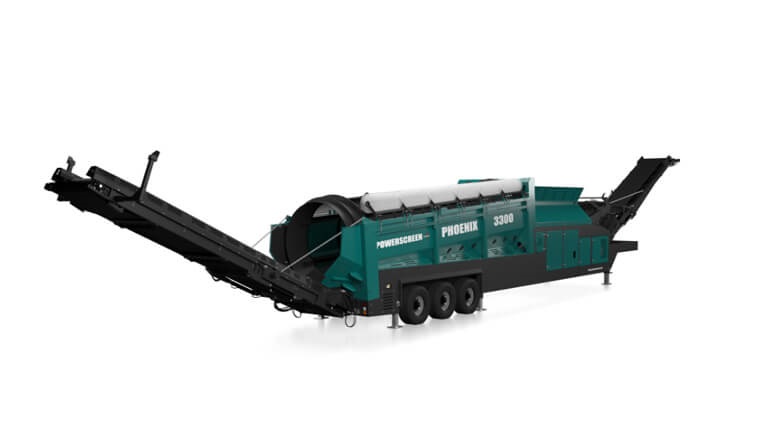

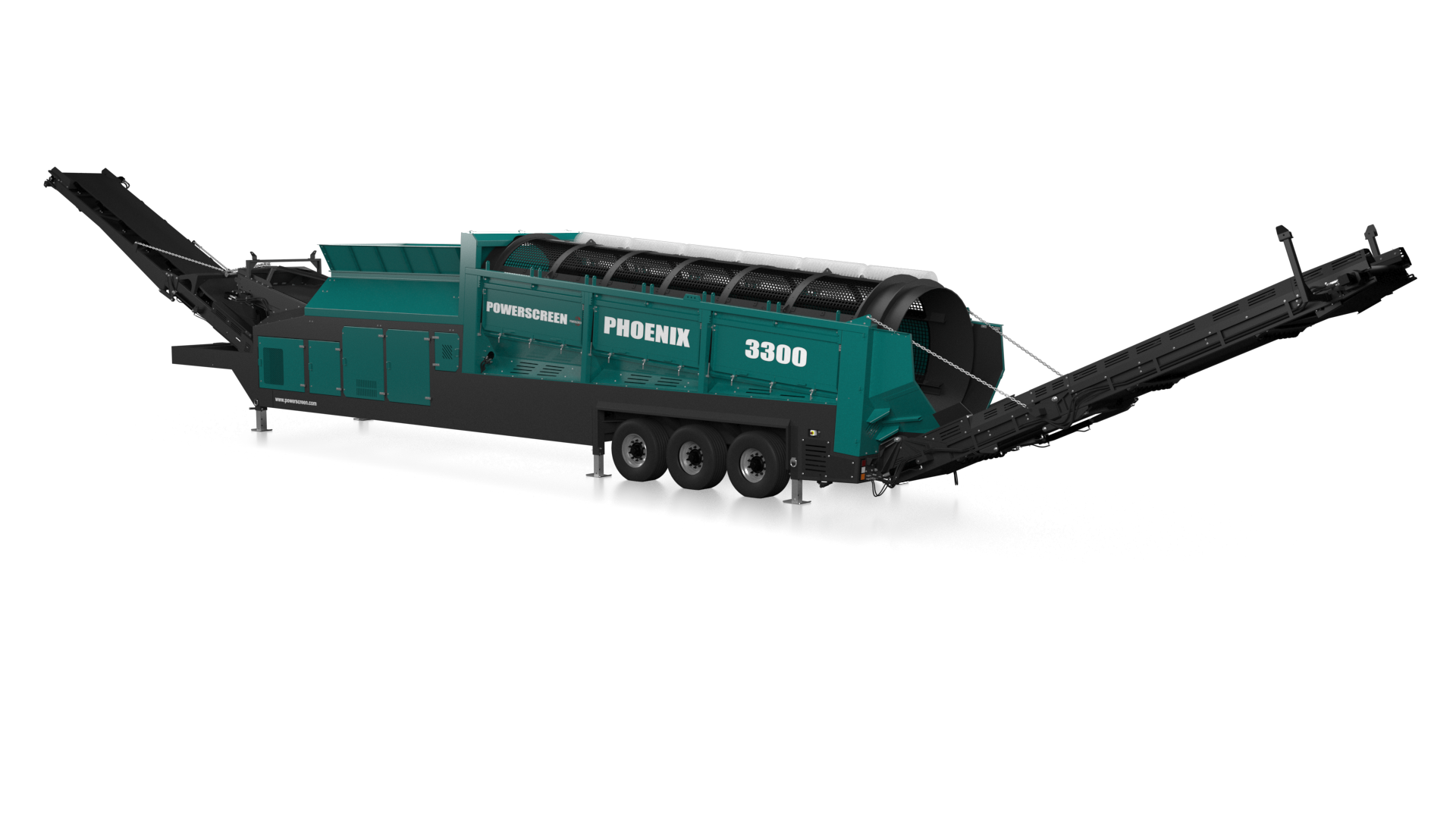

The Powerscreen Phoenix 3300 Wheeled Trommel Screen is designed to offer unrivalled production throughput and application flexibility. The robust design with optional features such as heavy duty tipping grid or double deck vibrating grid make the Phoenix 3300 the most versatile trommel on the market today.
The machine performs equally well in heavy C&D applications as it does in high volume compost production.
Feeder/Hopper
- 1500mm (59”) belt feeder
- Hopper capacity: 7.8m3 (10.2yd³)
Drum
- 9.31m (30’ 6”) Length
- 2.32m (7’ 6”) Diameter
- 52m2 (560ft2 ) screening area
Power Unit
- Engine Tier 3 Equivalent: C7.1 51kW (202 hp)
- Engine Tier 4F: C4.4 129kW (173hp)
- Stage V: C4.4 129kW (173hp)
Oversize Conveyor
- Width: 1200mm (47”)
- Stockpile Height: 2.15m (7’ 1”)
Fines Discharge Conveyor
- Width: 1200mm (47”)
- Stockpile Height: 4.32m (14’ 2”)
Technical Documentation
Measurements
Transport Width
9 ft 10 in
3 m
Working Width
51 ft 8 in
15 m 80 cm
Working Height
19 ft 4 in
5 m 90 cm
Transport Length
69 ft 2 in
21 m 10 cm
Working Length
105 ft 9 in
32 m 30 cm
Transport Height
13 ft 6 in
4 m 10 cm
- Remote control tipping grid 100mm (4”)
- Remote control tipping grid 150mm (6”)
- 2 Deck vibrating grid c/w tri-axle bogie
- Tipping grid discharge chute
- Heavy duty woven mesh
- Punch plate
- Different colour paint
- Powerscreen Pulse
- The 180° swivel fines conveyor, with a discharge height of 5.89m (19’3”) results in the creation of impressive stockpiles.
- This swivel feature can be controlled via a remote while the machine is in operation, minimising downtime.
- The powerful four wheel drive system with high performance friction grip wheels is used to turn the trommel drum giving operators the ability to run bi-directionally.
- Powerful hydraulics provide excellent service access.
- Highly efficient in C&D applications and high volume compost applications.
