Gladiator MT1150
The Gladiator MT1150 is a new electrically driven, wheeled open circuit cone crusher. It features the tried-and-tested Terex® TC1150 cone chamber and is chassis mounted on wheels meaning ease of movement an...
Gladiator TP320SR
Gladiator TP320SR
|
|
|
|---|---|
Specifications |
|
|
Up to 353 US tph (320tph) Up to 353 US tph (320tph) |
|
Width: 11' 10 Length: 69' Height: 13' 5" Width: 3.31m Length: 21.03m Height: 4.09m |
|
Width: 18' 11" Length: 68' 10" Height: 16' 6" Width: 5.77m Length: 20.98m Height: 5.03m |
|
94,006 lbs 42,641kg |

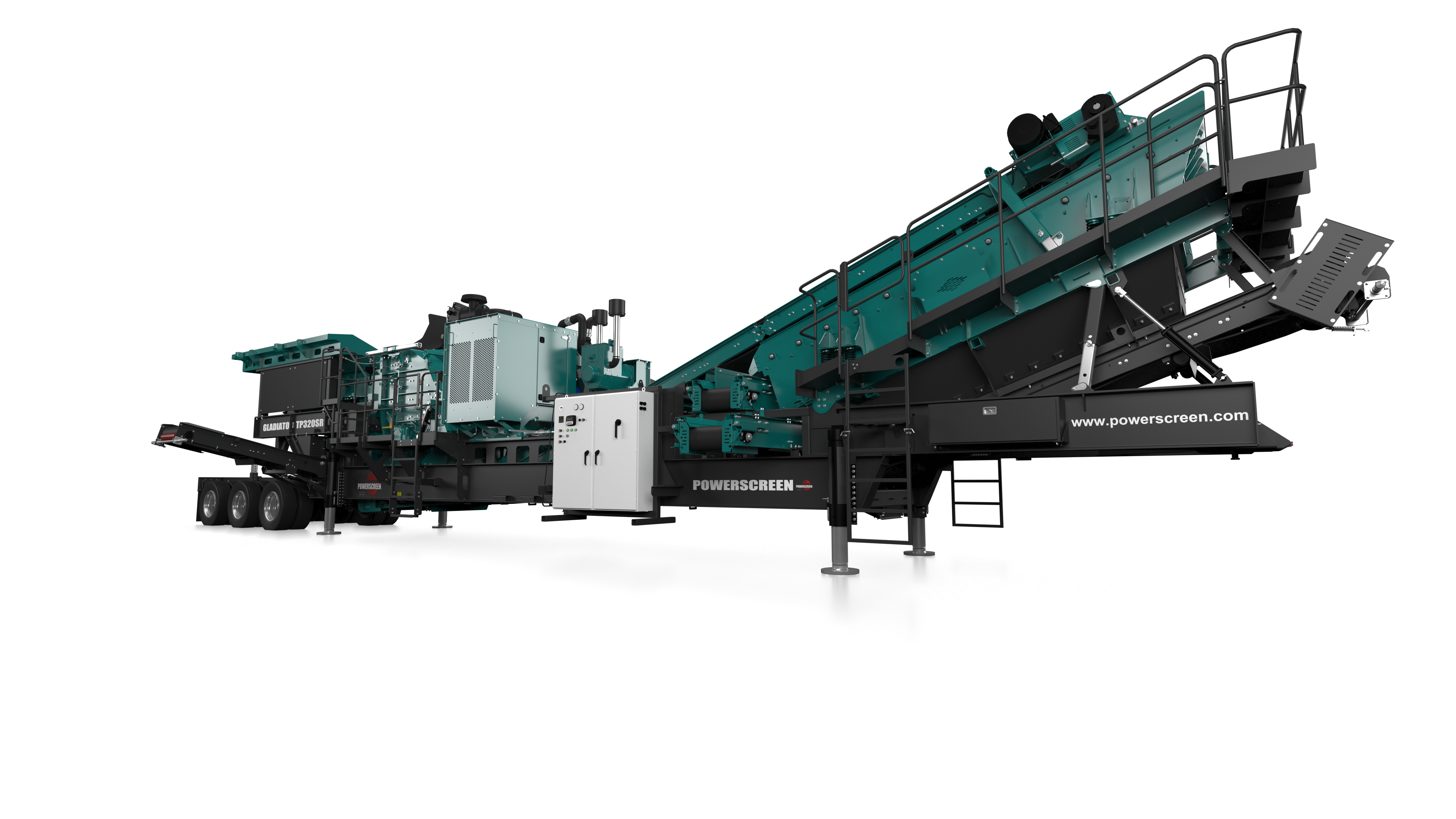

The Gladiator TP320SR is a new hybrid-electric drive, wheeled, closed-circuit impact crusher.
This portable closed-circuit crushing and screening plant combines the might of the Trakpactor 320 impact crusher with the Chieftain 1700 2 deck inclined screen for recirculation.
The crusher is hydraulic clutch driven direct from a 350hp Scania diesel engine. All other components are electrically driven from the 150kw generator. With its large screenbox, wide conveyors, and low maintenance electric drive components, this is a highly productive, high value plant.
Downloads
Related Products
-
![Powerscreen Gladiator MT1150]()
-
![]()
Gladiator MT1150SR
The Gladiator MT1150SR is a wheeled, electric drive closed-circuit cone crushing/screening plant.
-
![]()
Gladiator H6203
The Gladiator H6203 is a new, electrically driven, wheeled horizontal screening plant which offers excellent screening and blending capabilities.
-
![Powerscreen Gladiator H8203]()
Gladiator H8203
The Gladiator H8203 is a electrically driven, wheeled horizontal screening plant with a 20’ x 8’ screenbox offering excellent screening and blending capabilities.
