Gladiator H8203
Gladiator H8203
|
|
|
|---|---|
Specifications |
|
|
Up to 1102 US tph (1000 tph) Up to 1102 US tph (1000 tph) |
|
Width: 11' 12" Length: 43' 4" Height: 13' 6" Width: 3.66m Length: 13.21m Height: 4.11m |
|
Width: 15' 9" Length: 46' 7" Height: 13' 6" Width: 4.8m Length: 14.2m Height: 4.11m |
|
65, 500lbs 29, 710kg |

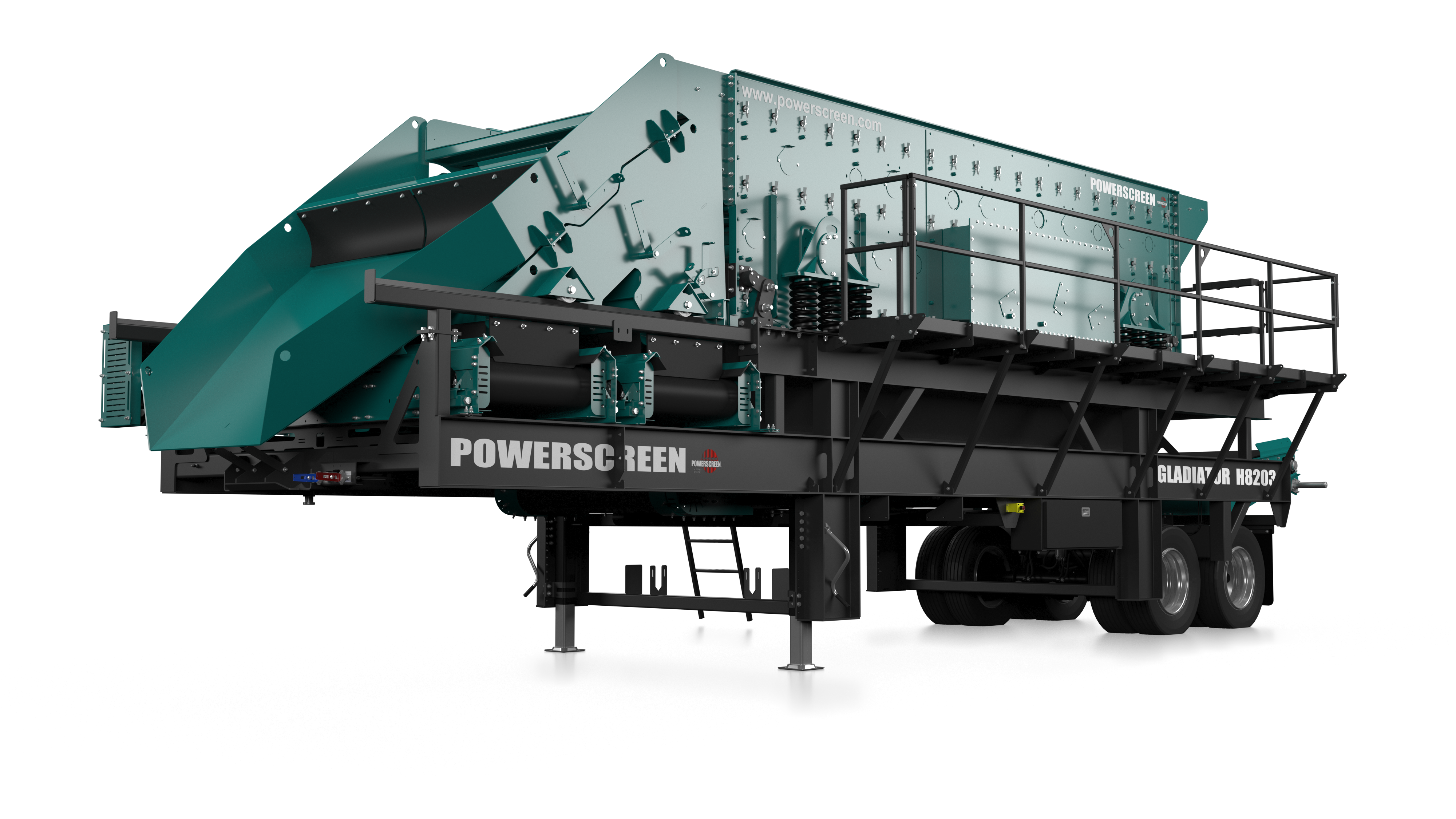

The Gladiator H8203 is a new, electrically driven, wheeled horizontal screening plant which offers excellent screening and blending capabilities.
It features the renowned Terex Cedarapids 20’ x 8’ heavy duty, triple shaft oval stroke screenbox which is chassis mounted on wheels meaning ease of movement and quick set up.
The Gladiator H8203 is a rugged and heavy-duty screening system, with many patented and patent-pending features. The unit is fully electrically driven using tried and tested Powerscreen® Hybrid™ technology, making it an ideal choice in locations with strict environmental regulations.
TECHNICAL HIGHLIGHTS
ENVIRONMENTALLY FRIENDLY
• Electrically driven meaning low fuel emissions and running cost
• No costly engine aftertreatment reducing expensive engine maintenance costs
PATENTED OPERATION & MAINTENANCE FEATURES
• Patent-pending low maintenance surge dampers/ship braces
• Heavy-duty roll-away blending chutes for screen mesh access and serviceability. Also fitted with Four section (25%) blending gates for all decks to allow combination of products on all decks.
• Extended Walkway on left hand side of the machine to allow easy mesh changes.
ROAD-LEGAL & EASY TO MOVE
• Made locally in USA, with lowest possible weight for ease of movement
• 8 wheel sprung axle and air brakes ensure a smooth journey
