Jaw Crushers

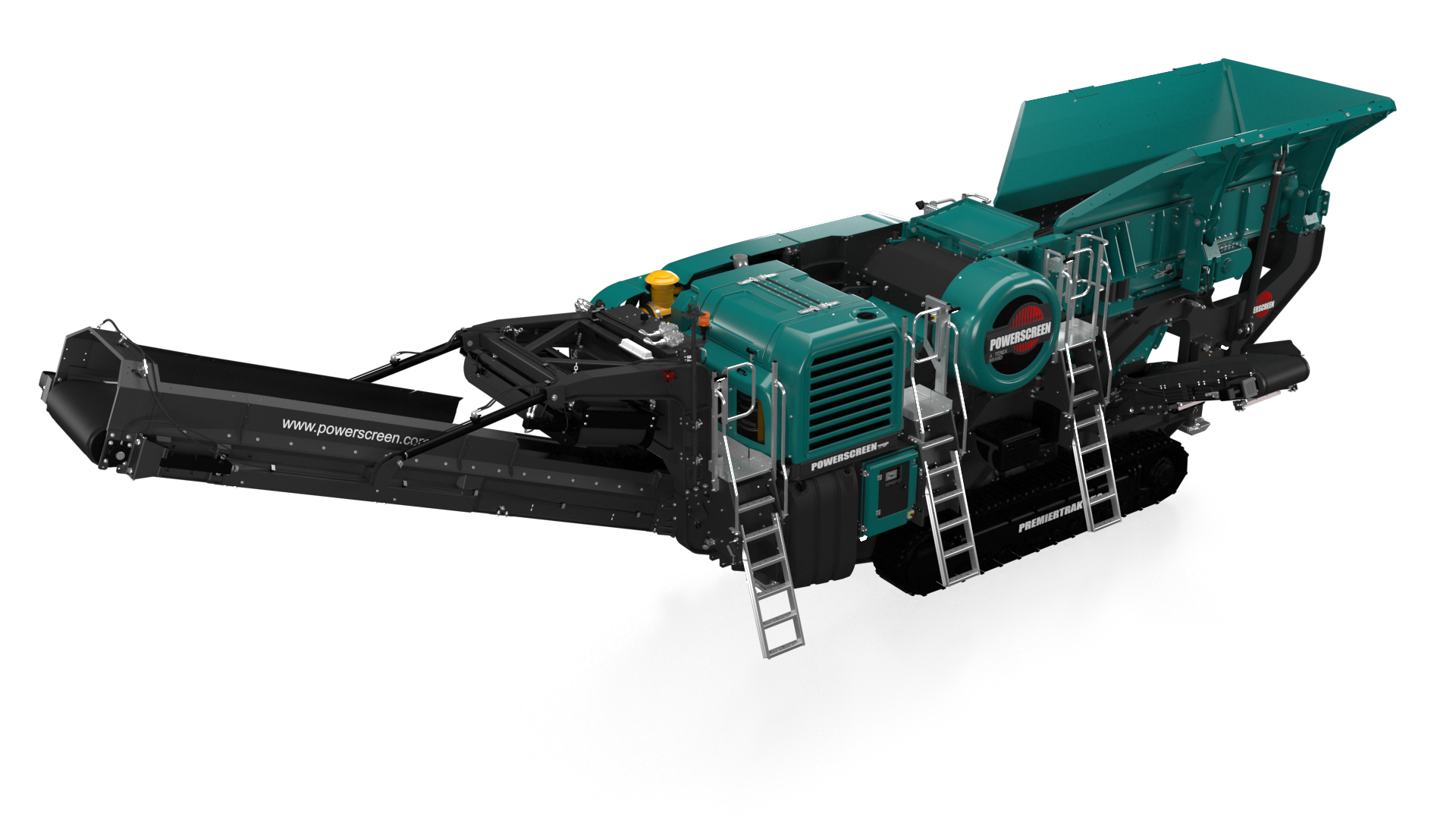

Premiertrak 450
The Powerscreen® Premiertrak 450 is high-performance primary jaw crushing plant, designed for operators in quarrying, demolition, recycling, and mining applications. The Premiertrak 450 boasts a two piece grizzly feeder allowing better material flow towards the chamber. User benefits include quick set up time and direct drive chamber for efficient fuel consumption.
Additional options include single deck post screen, pre-screen and bypass conveyor.
Hopper
- Hydraulic folding hopper
- Length: 4.75m (15’ 7”)
- Width: 2.5m (8’ 2”)
- Capacity: 10m3 (13 cu. yd.)
Crusher
- High capacity single toggle jaw
- Chamber size: 1100mm x 700m (44” x 28”)
- Min CSS: 50mm (2”)
- Max CSS: 150mm (6”)
Product Conveyor
- Width: 1000mm (40”)
- Discharge height: 3.9m (12’ 10”)
Feeder
- Vibrating grizzly feeder
- Length: 4.25m (13’ 11”)
- Width: 1.10m (3’ 7”)
Tracks
- Width: 500 mm (1’ 8”)
Power Unit
- Tier 3 Equivalent: CAT C9.3 6 230kW (308hp)
- Tier 4F / Stage V: Scania DC9 202kW (275hp)
- Fuel tank capacity: 500 L (120 US G)
Technical Documentation
Measurements
Transport Height
11 ft 2 in
3 m 40 cm
Transport Width
9 ft 2 in
2 m 80 cm
Transport Length
52 ft 10 in
16 m 10 cm
Working Length
50 ft 10 in
15 m 50 cm
Working Width
14 ft 10 in
4 m 30 cm
Working Height
14 ft 5 in
4 m 40 cm
Productivity
Output Potential
504 US tph
450 tph
