Jaw Crushers
Premiertrak 420E

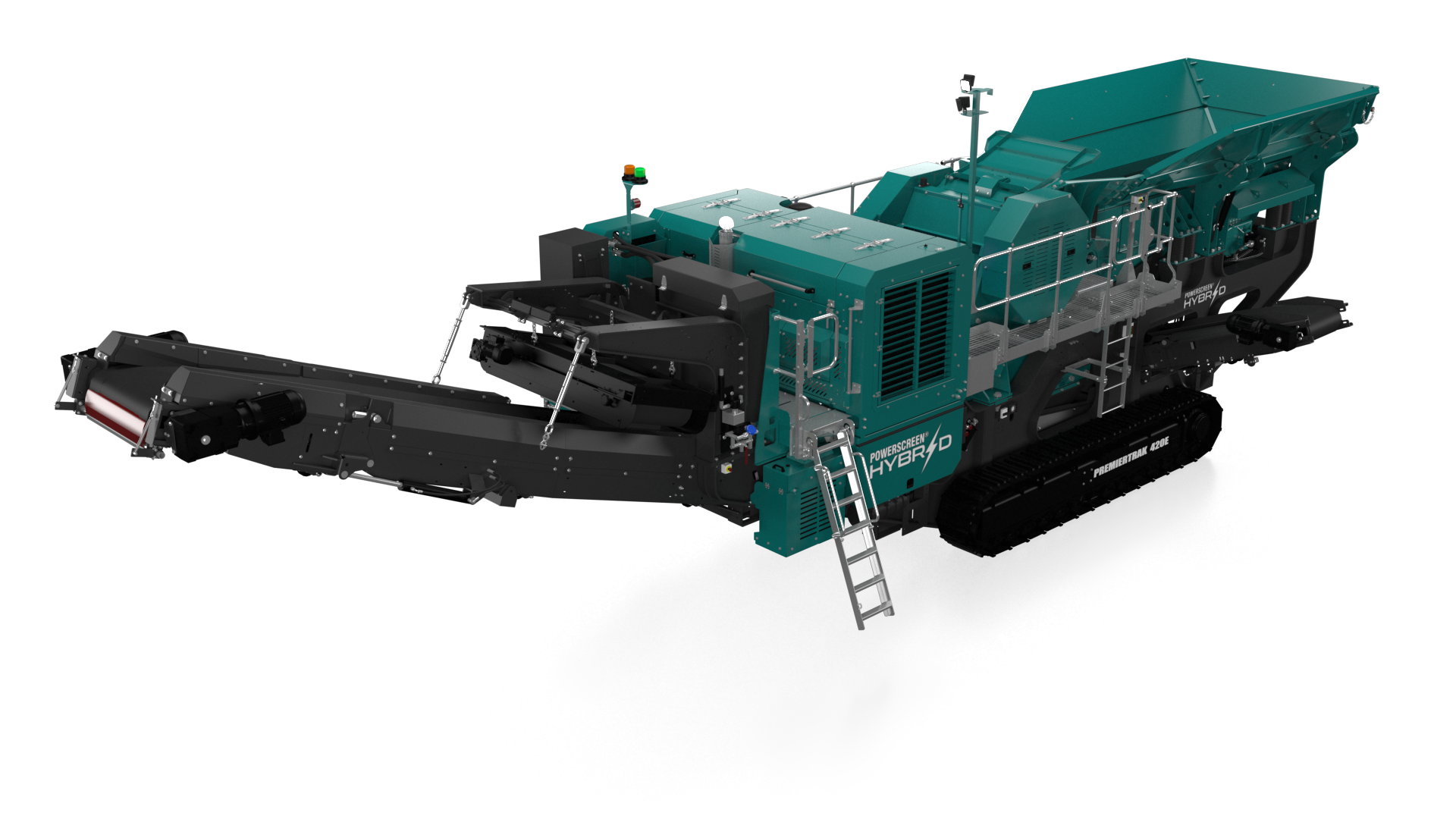

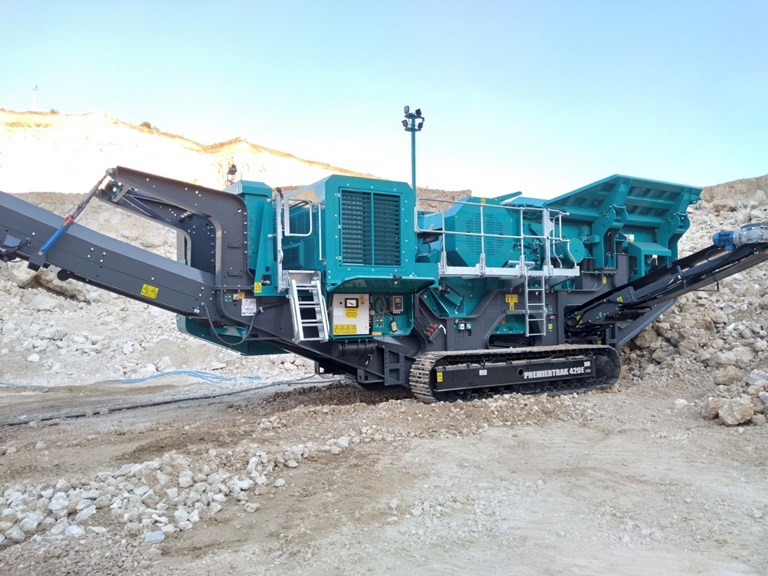

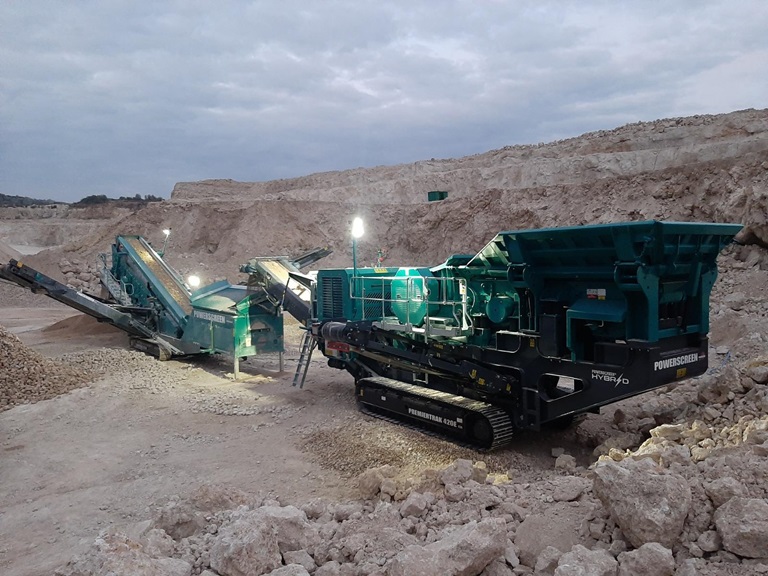

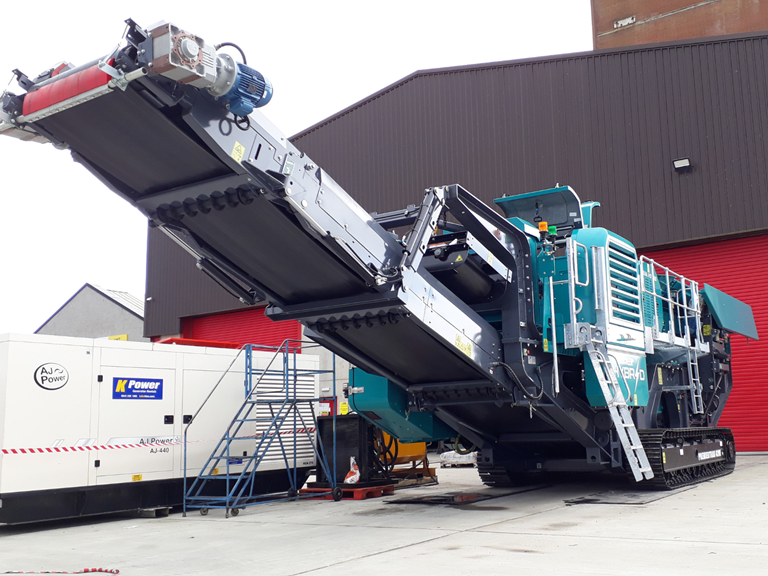

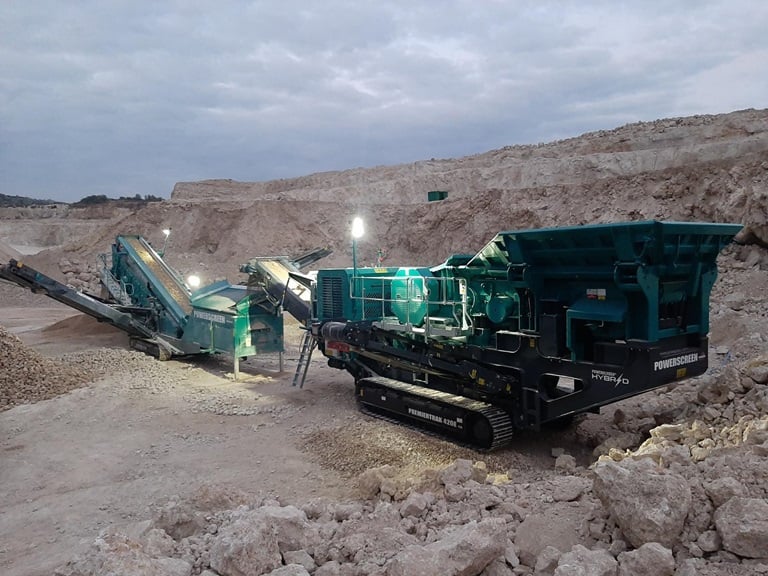

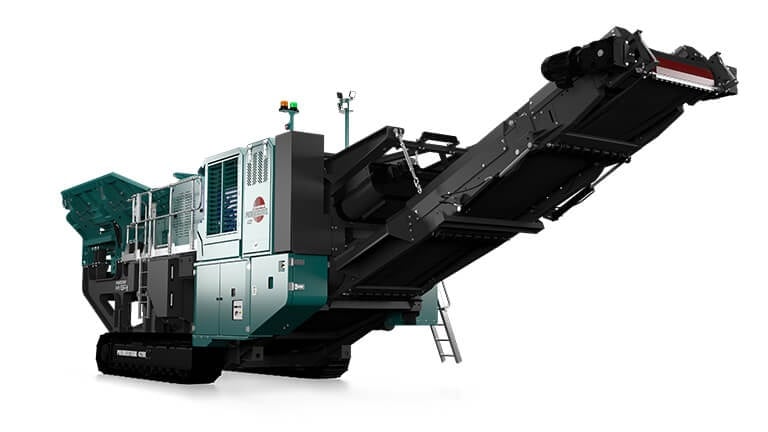

The Powerscreen Premiertrak 420E Jaw Crusher is a mid-range crusher used in recycling, quarrying, and mining applications. The crusher features a 1070mm x 760mm (42’’ x 30’’) single toggle jaw chamber. As part of Powerscreen’s hybrid range, the 420E has been designed to give customers alternative energy options to operate on site.
Dual power options let users choose which power source to use. Hybrid machines can be of special interest if operating in an area where electricity is more cost effective than diesel fuel.
⚡This machine is available with Electric/Hybrid drive

Crusher
- Terex JW42 chamber - single toggle jaw
- Chamber size: 1070mm x 760mm (42” x 30”)
- Min CSS: 45mm (13/4”)
- Max CSS: 145mm (53/4’’)
Hopper
- Hydraulically folding sides and rear
- Capacity: 9m3 (11.7 cu. yd.) standard
Feeder
- Vibrating grizzly feeder
- Length: 4.25m (13’ 11”)
- Width: 1.05m (3’ 5”)
Product Conveyor
- Width: 1000mm (40”)
- Discharge height: 3.6m (11’ 10”)
Power Unit
- Tier 2 / Stage II Equivalent: Scania DC9257kW (350hp)
- Tier 4F / Stage IV: Scania DC9 257kW (350hp)
- Fuel Tank Capacity: 430L (114 US G)
Tracks
- Width: 500 mm (1’ 8”)
