Jaw Crushers

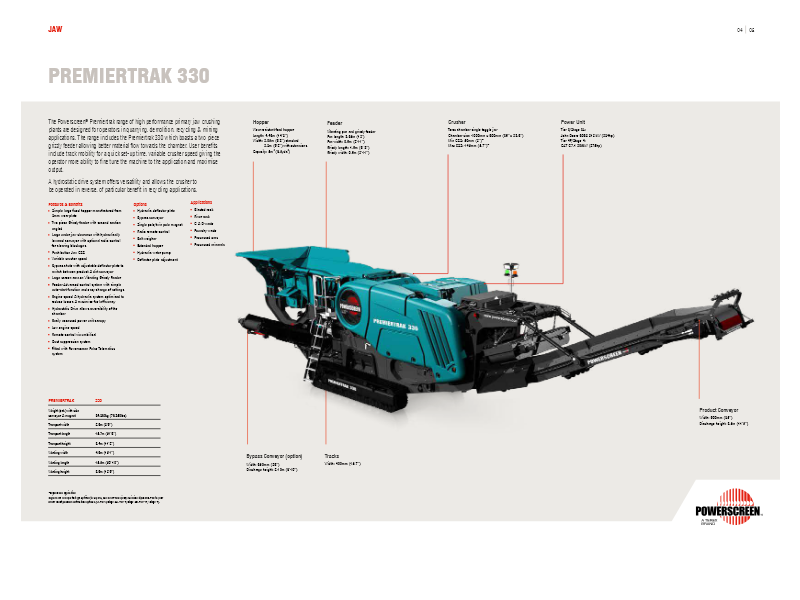

Premiertrak 330
The Powerscreen® Premiertrak range of high-performance primary jaw crushing plants are designed for operators in quarrying, demolition, recycling, and mining applications. The range includes the Premiertrak 330 which boasts a two-piece grizzly feeder allowing better material flow towards the chamber. User benefits include track mobility for a quick set-up time, and variable crusher speed that allows the operator to fine tune the machine and maximize output.
A hydrostatic drive system offers versatility and allows the crusher to be operated in reverse, of particular benefit in recycling applications.

Hopper
- Fixed hopper as standard
- Length: 4.46m (14’ 8”)
- Width: 2.05m (6’ 8”) standard / 2.8m (9’ 2”) with extensions
- Capacity: 5m3 (6.5 cu. yd.) / 8m3 (10.4 cu. yd.)
Power Unit
- Tier 3 Equivalent: John Deere 6068, 212kW (284hp)
- Tier 4F/Stage V: CAT C7.1, 205kW (275hp)
- Fuel tank capacity: 640L (169 US G)
Tracks
- Width: 400 mm (1’ 4”)
Crusher
- Single toggle jaw
- Chamber size: 1000mm x 600mm (39” x 24”)
- Min CCS: 40mm (1.5”)
- Max CSS: 125mm (5”)
Feeder
- Vibrating grizzly feeder
- Length: 3.75m (12’ 3’’)
- Width: 0.94m (3’)
Product Conveyor
- Width: 900mm (36”)
- Discharge height: 3.58m (11’ 9”)
Technical Documentation
Measurements
Productivity
- Output potential up to 280tph (308 US tph) (Depending on application & CSS)
- Hydrostatic Drive with reverse crush capacity
- Heavy duty wear resistant feed hopper
- Stepped self-cleaning grizzly feeder with under feeder screen
- Wide bypass chute to optimise material flow
- Aggressive crushing action with high swing jaw encouraging material entry into crushing chamber
- Fully hydraulic crusher setting adjustment
- Improved manganese liner retention, protects jaw supports on both swing & fixed jaws
- Excellent under crusher access for removal of wire with hydraulic raise/lower product conveyor (Optional)
- Low fuel consumption due to efficient drive system and low engine RPM
- Easily accessed power unit canopy
- PLC control system with auto start facility
- Remote control via umbilical
- Dust suppression system
- Hydraulic deflector plate
- Bypass conveyor
- Single pole/twin pole magnet
- Radio remote control
- Belt weigher
- Extended hopper
- Hydraulic water pump
- Deflector plate adjustment
