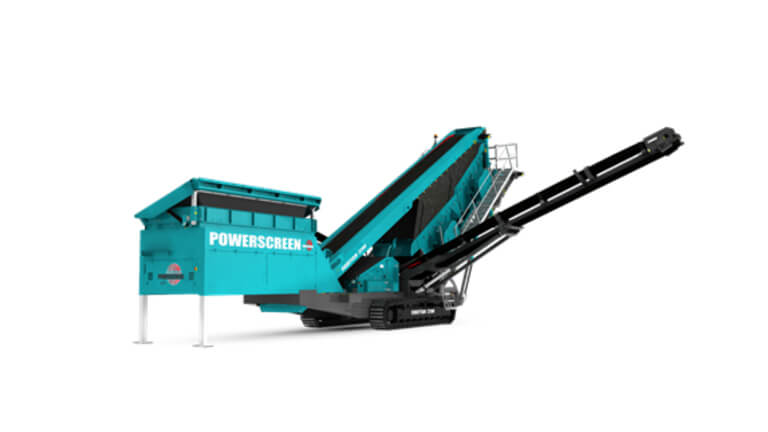

Chieftain 2200 2 Deck

Inclined Screen


The Powerscreen® Chieftain 2200 2 Deck Screen is designed for operators who require large volumes of high specification products with maximum versatility. The Powerscreen Chieftain 2200 has two highly versatile double deck screenboxes which provide a total screening area of 19.5m2. It has a revolutionary patent pending drive system which allows switching between 2 and 4 bearing with bolt-on parts. The maximum variability of the Chieftain offers improved capabilities over its class rivals, especially in sticky scalping applications. User benefits include a quick set-up time (typically under 30 minutes) with hydraulically folding conveyors and track mobility. Its high aggression screenboxes handle dirty, sticky material with ease.


Additional Specifications

 Screen - 22' x 5" (Imperial) | 6.6m x 1.55m (Metrics)

Specification Value
Output Potential 650 tph (715 US tph) / 650 tph (715 US tph)
Transport Dimensions Width: 9' 10" Length: 64' 11" Height: 11' 9" / Width: 3m Length: 19.8m Height: 3.6m
Working Dimensions Width: 59'11" Length: 65'7" Height: 24' 10" / Width: 18.25m Length: 20m Height: 7.58m
Weight 79,366lbs / 36,000kg
  • Double deck vibrating grizzly
  • Radio controlled tracking
  • Anti roll-back
  • Dual Power
  • Auto lubrication system
  • Dust suppression
  • Quick release wedge tensioning (top decks)
  • Output Potential: up to 650 tph (715 US tph)
  • 2 x double deck screenboxes
  • Patent pending drive system to switch between 2 and 4 bearing arrangements
  • Radio controlled tipping grid
  • Integrated high capacity variable speed belt feeder
  • Heavy duty single shaft screenboxes with adjustable stroke, angle and speed
  • Hydraulic screen tensioning (bottom deck)
  • Screen walkway and access ladder
  • Hydraulic folding conveyors with excellent stockpiling capacity
