Chieftain 2100X 3 Deck

Inclined Screen

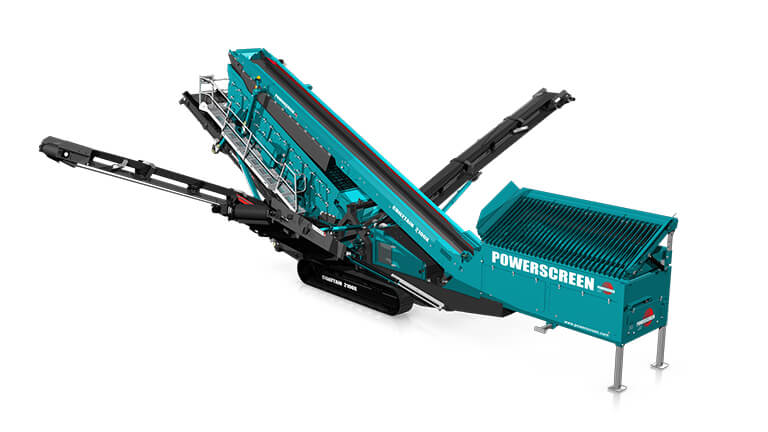

Powerscreen Chieftain 2100 3 Deck Screen

The Powerscreen Chieftain 2100X is designed for medium to large scale operators who require large volumes of high specification product. The screenbox can be finely tuned to suit the application with its adjustable stroke, angle and speed. Featuring quick set up times and maximum mobility, low ground pressure tracks - an operator can have the unit operational in minutes. Serviceability is a priority on the Chieftain 2100X with its transverse power unit arrangement and a drop down fines conveyor facility to aid bottom deck mesh changes. The 3 deck Chieftain 2100X allows the operator to create a fourth saleable product. Alternatively, the hydraulic auxiliary conveyor can easily feed the oversize back into the hopper of a another unit for further screening or crushing.

Specification Value
Output Potential 600 tph (661 US tph) / 600 tph (661 US tph)
Transport Dimensions Width: 9'10" Length: 61'4" Height: 11'8" / Width: 3m Length: 18.7m Height: 3.47m
Working Dimensions Width: 59'11" Length: 64'8" Height: 22'1" / Width: 18.25m Length: 19.17m Height: 6.72m
Weight 82,452lbs / 37,400kg
Screen 20' x 5" / 6.1m x 1.55m
  • Double deck vibrating grizzly
  • Radio controlled tracking
  • Anti roll-back
  • Dual power (additional electric hydraulic drive)
  • Roll-in bogie prepared
  • Roll-in bogie equipped
  • Auto lubrication system
  • Dust suppression
  • Quick release wedge tensioning (top/middle decks)
  • Oversize transfer conveyor for Biomass & recycling (3 deck)
  • Output potentital: up to 600 tph (661 US tph)
  • 2 or 3 deck
  • Radio controlled tipping grid
  • Integrated high capacity variable speed belt feeder
  • Oil bath lubricated 2 bearing screenbox
  • Heavy duty single shaft screenbox with adjustable stroke, angle & speed
  • Screen walkway & access ladder
  • Hydraulic folding conveyors with excellent stockpiling capacity
