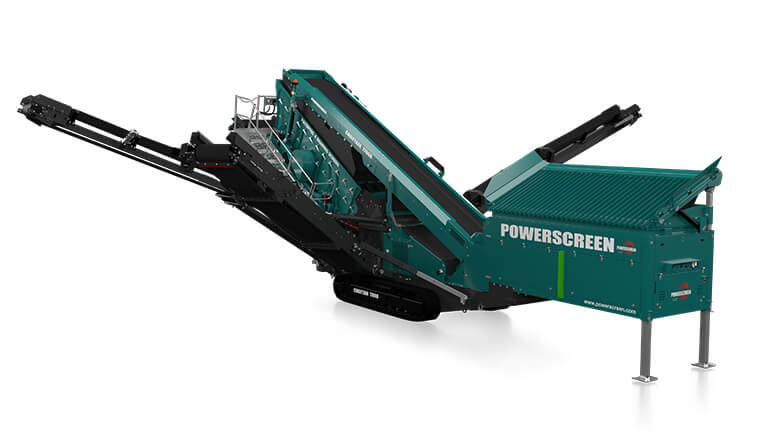

Chieftain 1700X 3 Deck

Inclined Screen


The Powerscreen® Chieftain 1700X 3 Deck allows users to add an additional deck to the 1700 to create a fourth product. User benefits include a quick set-up time, drop down tail conveyor and screen mesh access system to aid screen media changes and a transverse powerunit arrangement to simplify servicing. Features a radio controlled tipping grid and heavy duty single shaft screenbox with adjustable stroke, angle, and speed.


Additional Specifications

 Screen - 16'x5' (Imperial) |4.8m x 1.5m (Metrics)

Specification Value
Output Potential 500 tph (551 US tph) / 500 tph (551 US tph)
Transport Dimensions Width: 9’ 10”" Length: 54'3" Height: 11'3" / Width: 3m Length: 16.53m Height: 3.4m
Working Dimensions Width: 56'10" Length: 56'6" Height: 19'4" / Width: 17.32m Length: 17.22m Height: 5.89m
Weight 65,698lbs / 28,800kg
  • Double deck vibrating grizzly
  • Radio controlled tracks
  • Dual power (additional electric hydraulic drive)
  • Roll-in bogie prepared
  • Roll-in bogie equipped
  • Quick release screen wedge tensioning
  • Anti roll-back
  • Auto lubrication system
  • Dust suppression
  • Extended recirculation conveyor attached for transport (3 deck)
  • Hydraulic screen tensioning (Bottom Deck)
  • Output potential: up to 500 tph (551 US tph)
  • Radio controlled tipping grid
  • Integrated high capacity variable speed belt feeder
  • Grease filled 2 bearing screen box
  • Heavy duty single shaft screenbox with adjustable stroke, angle & speed
  • Screen walkway & access ladder
  • Hydraulic folding conveyors with excellent stockpiling capacity
  • Engine protection shutdown system
