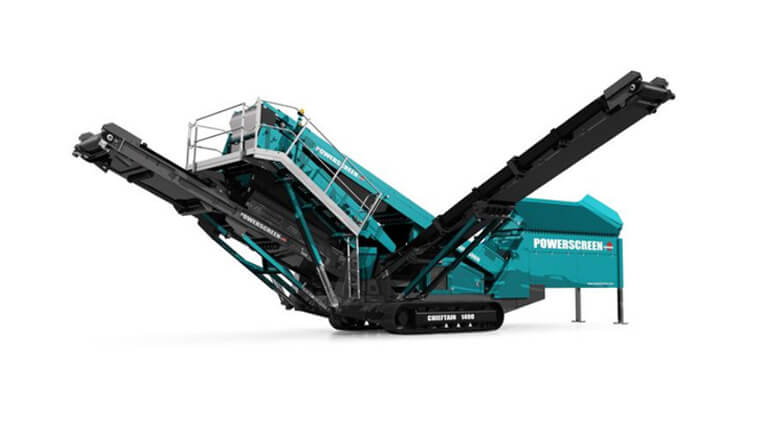

Chieftain 1400 Tracked
Inclined Screen
The Powerscreen® Chieftain 1400 Tracked Screen is one of Powerscreen’s most popular screening products and is ideally suited for small to medium sized operators and contractors who require a versatile product capable of operating in a number of applications such as sand and gravel, aggregates and recycling. User benefits include hydraulic folding conveyors for a quick set-up time, screen walkways and access ladders for ease of maintenance, and a drop down tail conveyor to aid screen media changes.
| Specification | Value |
|---|---|
| Output Potential | 400 tph (441 US tph) / 400 tph (441 US tph) |
| Transport Dimensions | Width: 9'2" Length: 51' Height: 11'2" / Width: 2.8m Length: 15.55m Height: 3.4m |
| Working Dimensions | Width: 53'2" Length: 53'9" Height: 16'10" / Width: 16.2m Length: 16.4m Height: 5.12m |
| Weight | 54,895lbs / 24,900kgs |
| Screen | 11' x 5' / 3.3m x 1.5m |
- Double deck vibrating grizzly
- Radio controlled tracks
- Roll-in bogie prepared
- Roll-in bogie equipped
- Quick release screen wedge tensioning
- Anti roll-back
- Auto lubrication system
- Hydraulic screen tensioning (Bottom Deck)
- Output potential up to 400 tph (441 US tph)
- Radio controlled tipping grid
- Integrated high capacity variable speed belt feeder
- Grease filled patented 4 bearing, 2 deck screen box
- Hydraulic screen angle adjustment
- Screen walkway and access ladder
- Hydraulic folding conveyors
- Engine protection shutdown system
- Patented 4 bearing screenbox
