Premiertrak 300 & R300 Jaw Crusher
The Powerscreen® Premiertrak 300 high performance, mobile jaw crusher range has been designed for medium scale operators in quarrying, demolition, recycling & mining applications. The range includes the Premier...

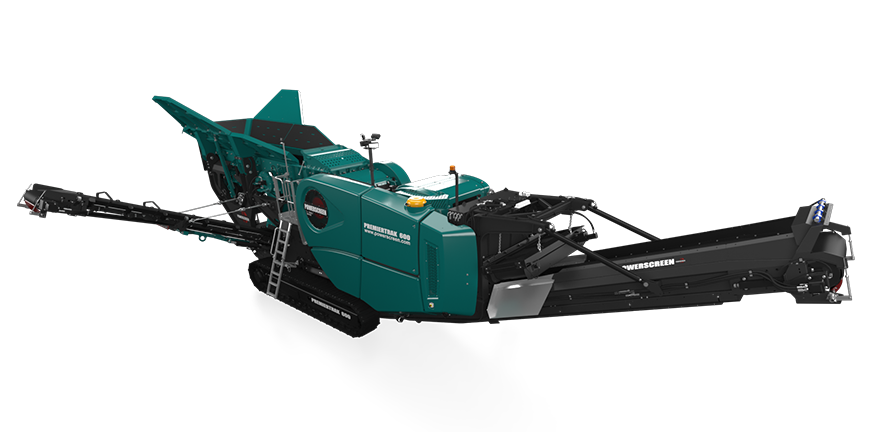

Premiertrak 600
Jaw Crusher
|
|
|
|---|---|
Specifications |
|
|
600tph (661 US tph)* 600tph (661 US tph)* |
|
Width: 9'10" Length: 56'1" Height: 12' 6" Width: 3m Length: 17.1m Height: 3.8m |
|
Width: 26'5" with side conveyor Length: 54'7" Height: 14' 9" Width: 8.05m Length: 16.63m Height: 4.49m |
|
162,701lbs 73,800kg |
The Powerscreen® Premiertrak 600 range of high performance jaw crushers are designed for large and medium scale operators in quarrying, demolition, recycling & mining applications.
The range includes the Premiertrak 600 & Premiertrak 600E both equipped with the advanced high performance 1200mm x 820mm (47’’ x 32’’) Terex chamber. Built for the toughest of applications, the robust construction and modern
design of the Premiertrak 600 ensures optimum performance, reliability and efficiency. The Premiertrak 600E comes complete with an onboard diesel generator. There is sufficient excess power available to run a second machine such as a screener. This
versatility along with the electrically driven crusher and conveyors makes the PT600E highly efficient, economical and environmentally friendly.
Additional Specifications:
CSS Range: Min: 3" Max: 8" (Imperial), Min: 75mm Max: 200mm (Metric)
