Cone Crushers

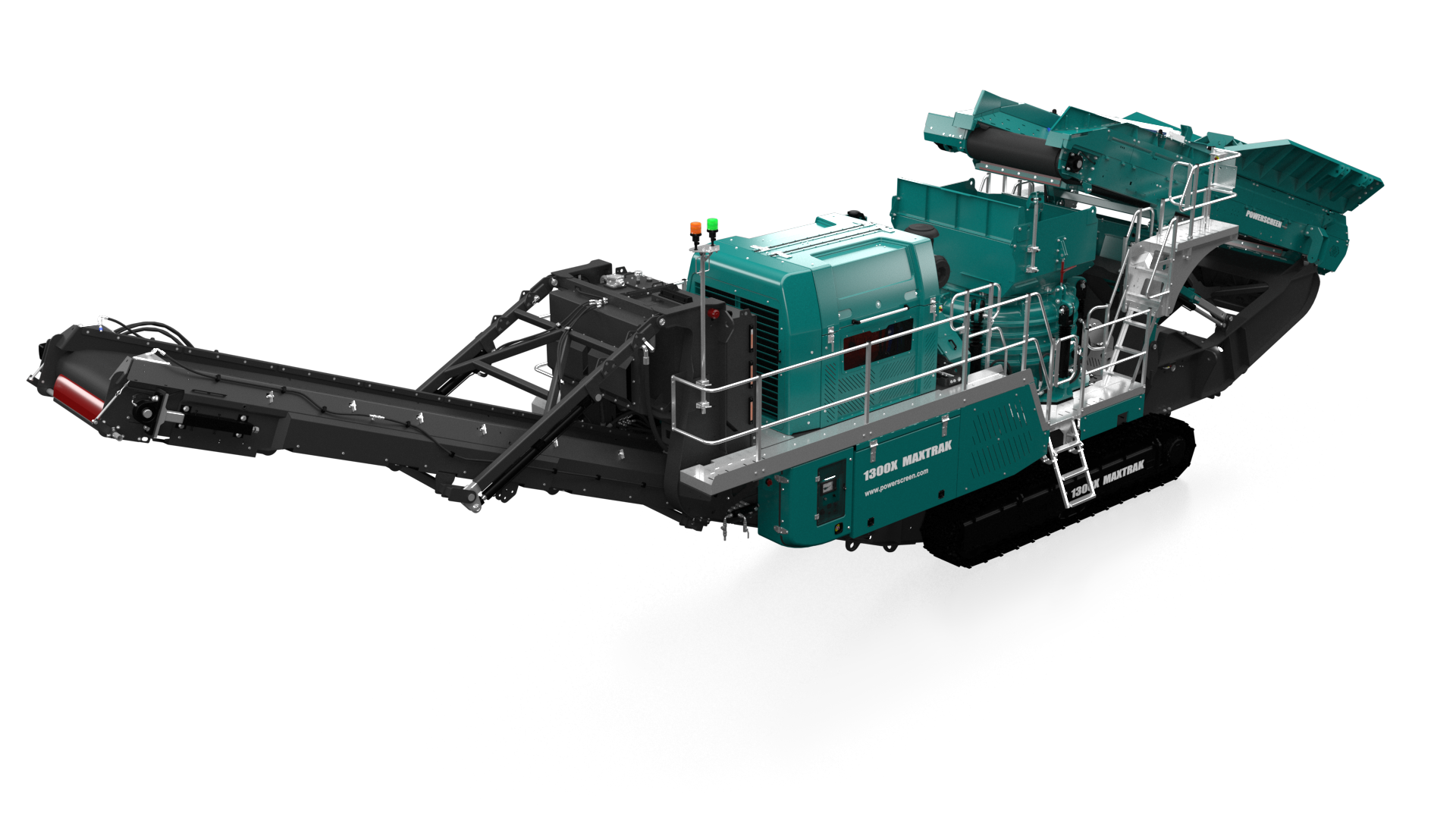

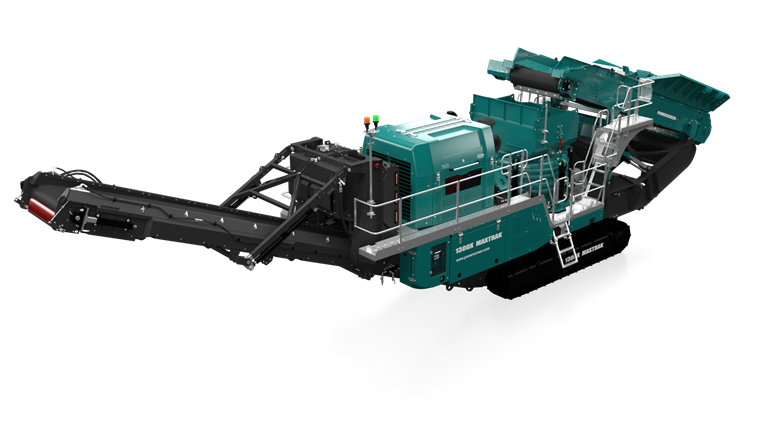

1300X Maxtrak

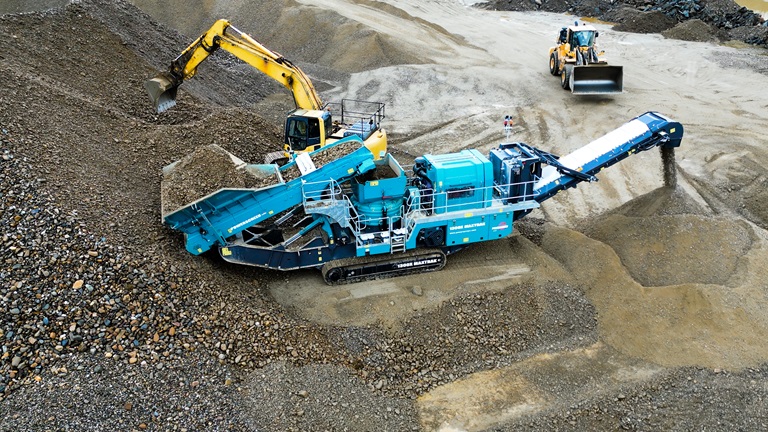

The Powerscreen® 1300X Maxtrak sets the new standard for cone crushing. This portable cone crusher is ideally suited to secondary applications and is based on the success of its predecessor, the 1300 Maxtrak.
With the
high performance and proven Terex cone, this plant excels in the
production of sub-base or aggregates, providing excellent hroughput
& reduction ratios.
Tracks
- Width: 500mm (1’ 8”)
Hopper
- Fixed, tapered hopper to aid material flow
- Hopper Capacity: Up to 6m3 (7.8 cu. yd.)
Crusher
- Crusher Type: TC1300X Terex Crusher
- Max Feed Size: 220mm (8.6")
Power Unit
- Tier 3 Equivalent: CAT C15 403 kW (540hp)
- Tier 4F / Stage V: Scania DC13, 405 kW (550hp)
- Fuel Tank Capacity: 1000 L (264 US Gal)
Product Conveyor
- Width: 1100mm (44”)
- Discharge Height: 3.6m (11’ 10”)
Technical Documentation
Measurements
Transport Length
58 ft 10 in
17 m 92 cm
Working Length
55 ft 10 in
16 m 80 cm
Transport Height
12 ft 6 in
3 m 80 cm
Working Width
12 ft
3 m 65 cm
Transport Width
9 ft 10 in
3 m 80 cm
Working Height
16 ft
4 m 89 cm
Productivity
Output Potential
551 US tph
500 tph
- Concave: medium coarse, Autosand®
- Feed hopper extension plates
- Product conveyor belt weigher
- Electric refuelling pump
- Electric water pump
- Radio remote control
- Output Potential: 350 tph (386 US tph)
- Renowned Automax® crusher technology
- Accepts clean all in feed
- Excellent product shape
- High reduction ratio
- Cone feed box level control to maintain choke feeding
- Hydraulic crusher setting
- Cone overload protection
- Heavy duty chassis and track frame
- Metal detector
- Dust suppression system
- Economical to operate with a highly fuel efficient direct drive system
- Fitted with Powerscreen Pulse Telematics system
