Horizon 6203
The Powerscreen® H6203 Horizontal Screen is ideal for handling high volumes of sticky materials and for the exact, fine sizing demanded in many construction contracts. The adjustable elliptical throw combines...
Horizon 6203R
Horizontal Screen
|
|
|
|---|---|
Specifications |
|
|
800tph (882 US tph)* 800tph (882 US tph)* |
|
Width: 10'6" Length: 62"4" Height: 11'10" Width: 3.2m Length: 18.99m Height: 3.6m |
|
Width: 53'4 Length: 69'11" Height: 15'5" Width: 16.27m Length: 21.3m Height: 4.7m |
|
99,208lbs 45,000kg |

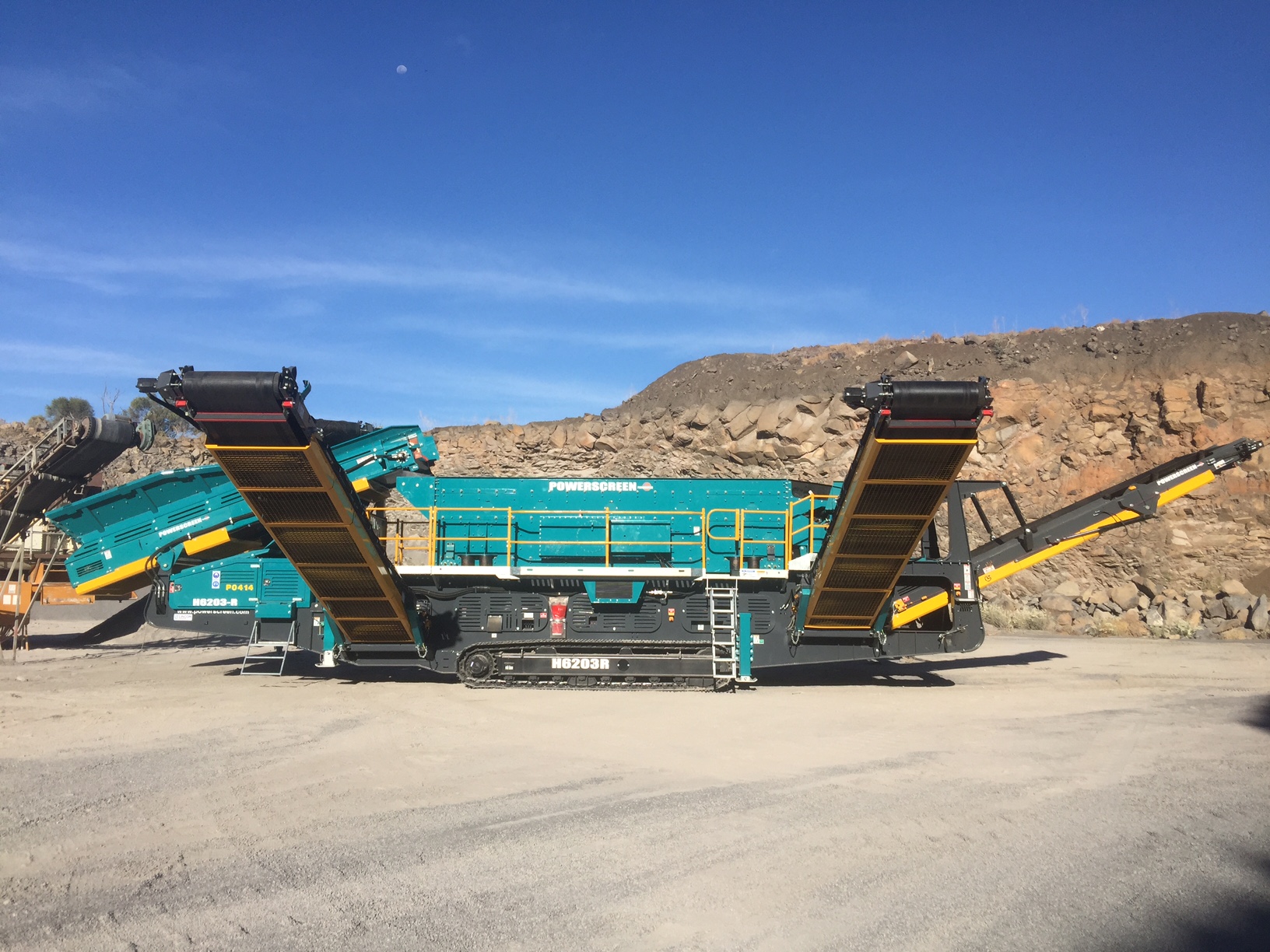

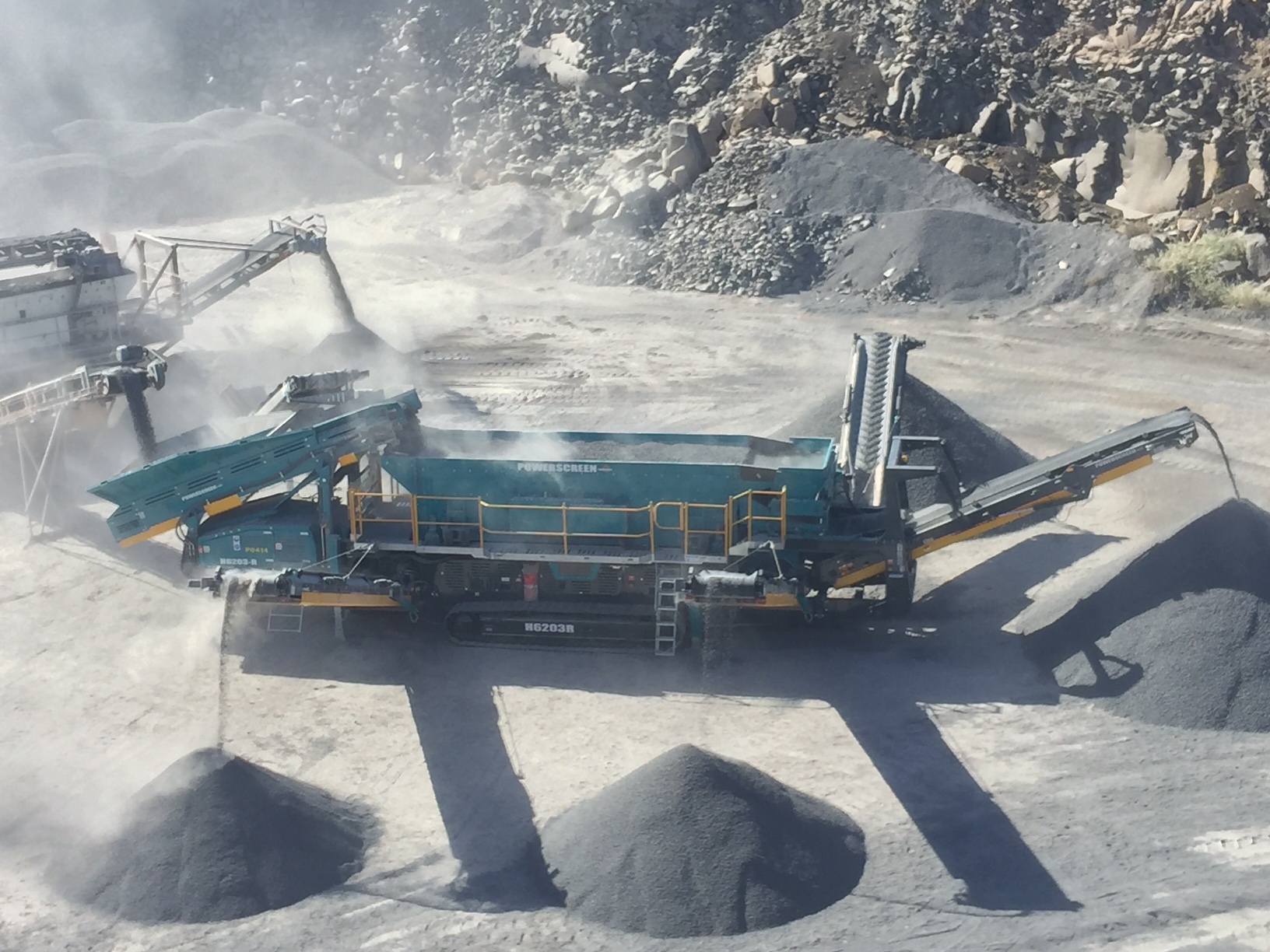

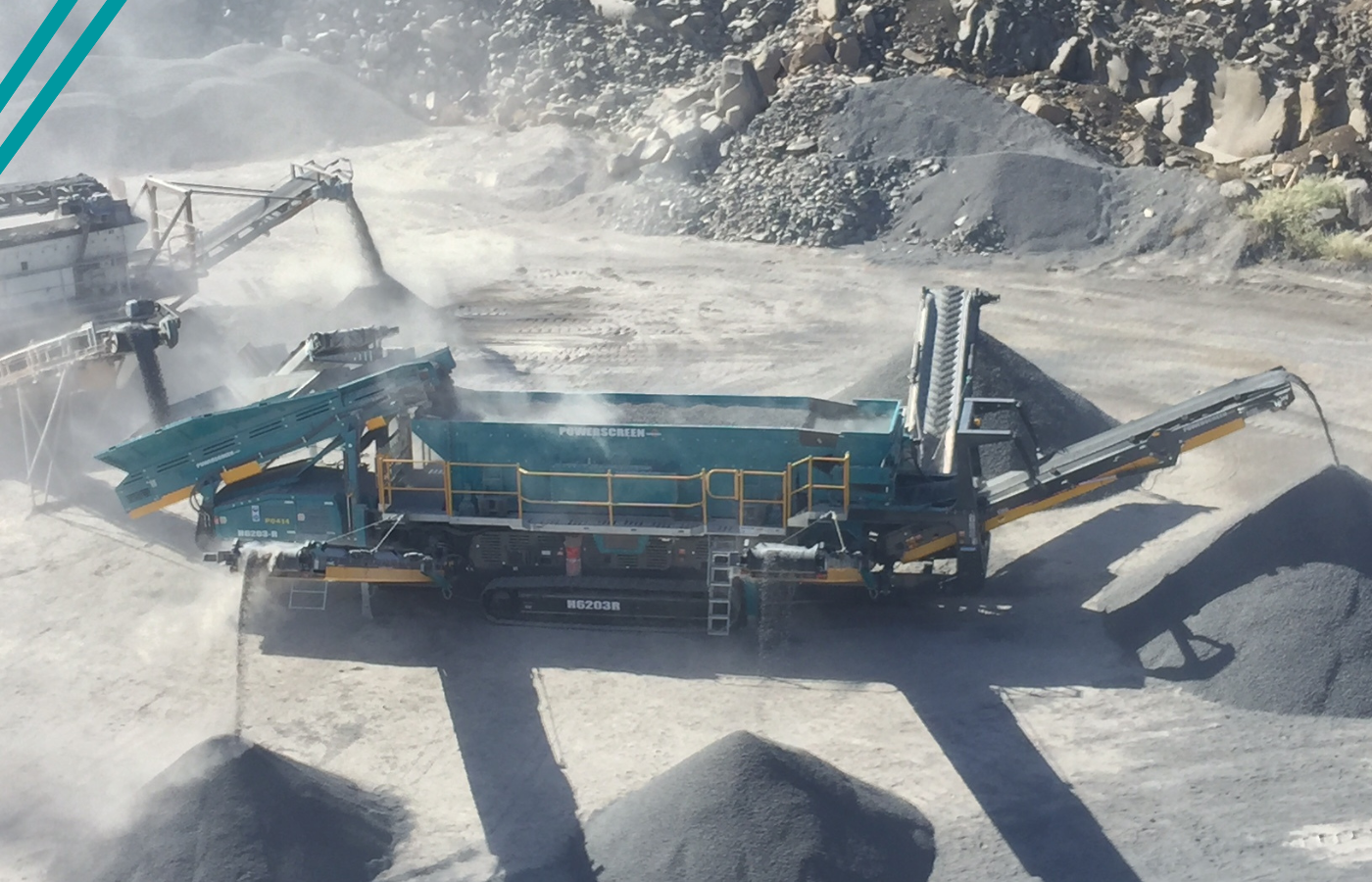

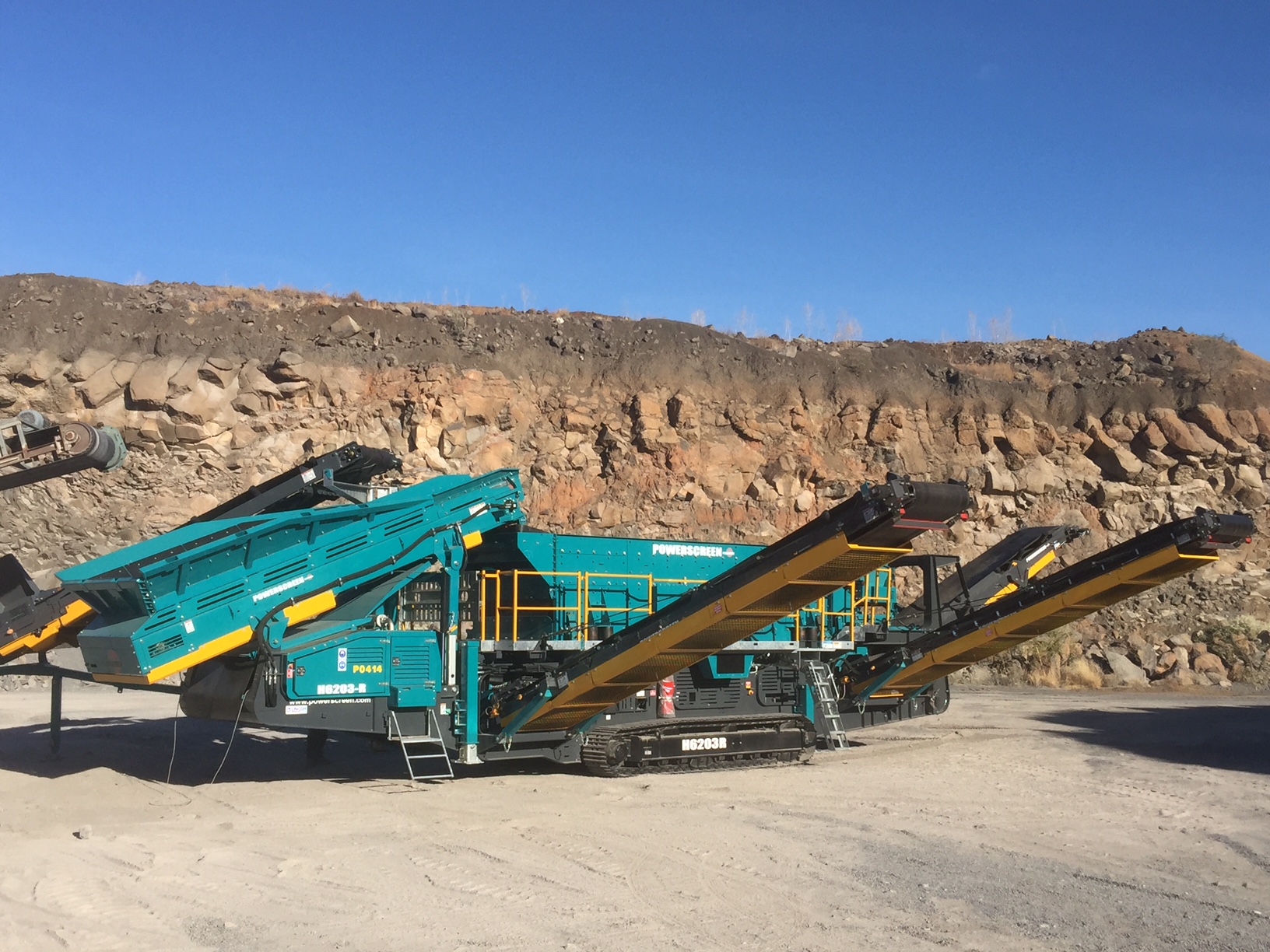

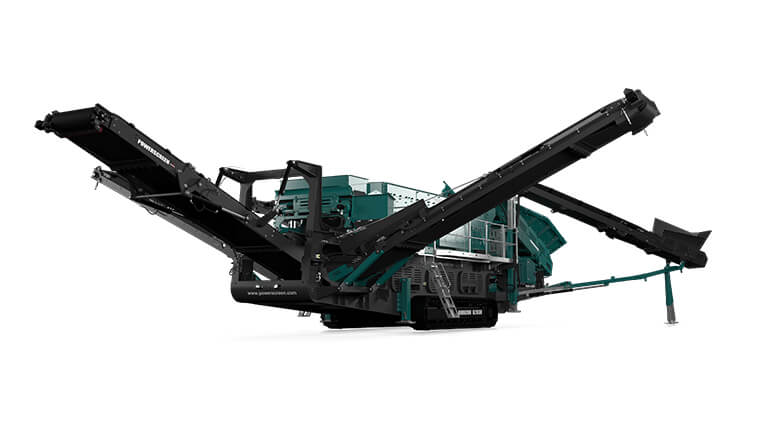

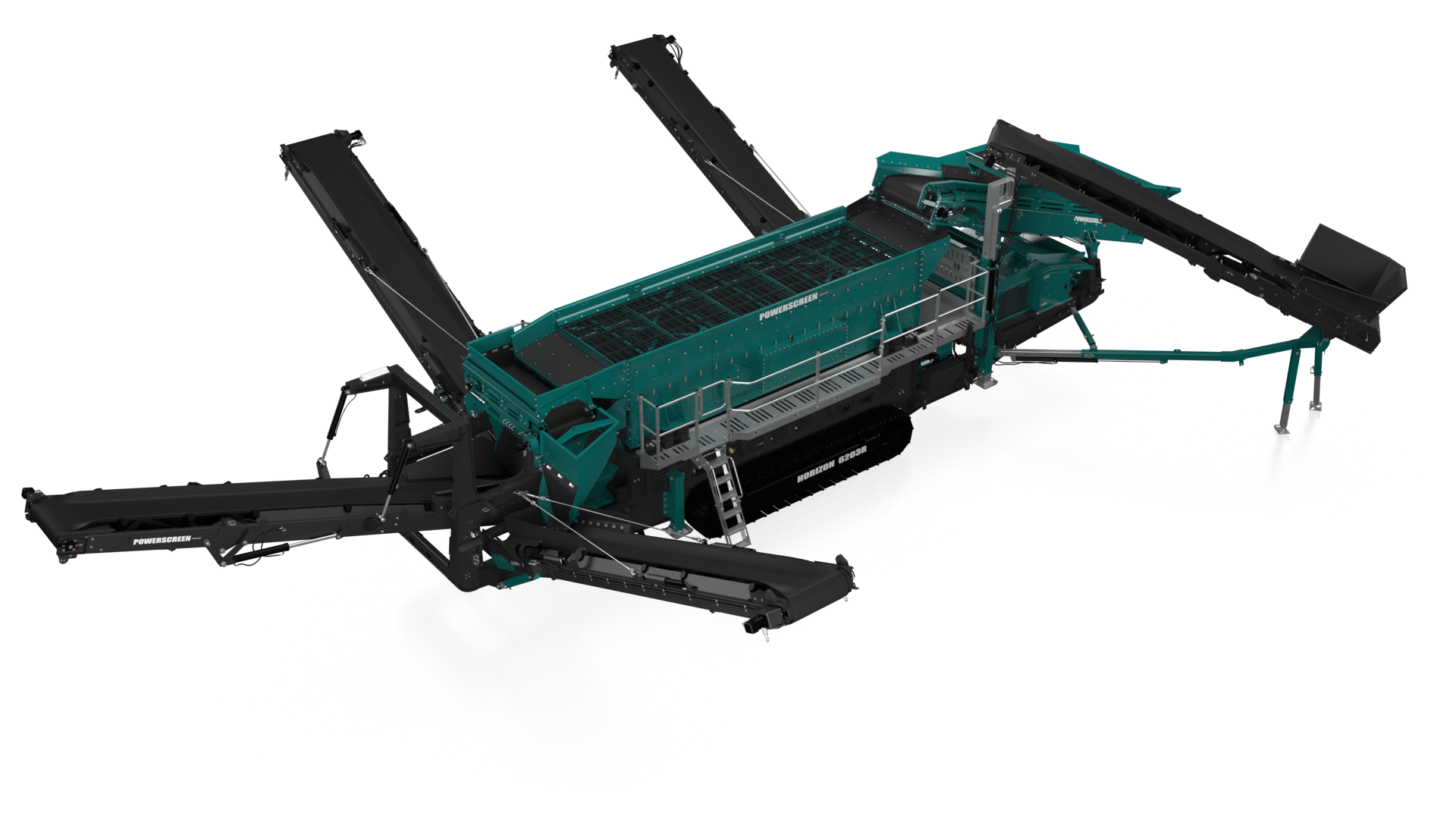

The Powerscreen® H6203R Horizontal Screen is ideal for handling high volumes of sticky materials and for the exact, fine sizing demanded in many construction contracts. The H6203R model features an recirculating swivel conveyor for oversized product. The conveyor is used to return product back to the feeder. Adjustable elliptical throw combines linear and circular amplitude producing an aggressive screening action. This is a heavy duty screen designed to excel in a variety of applications such as concrete, iron ore, aggregate, and asphalt.
Additional Specifications
Weight - 99,208lbs (Imperial) | 45,000kg (Metrics)
Screen - 20' x 6'3" (Imperial) | 6.1m x 1.93m (Metrics)
Features and Benefits
- High capacity variable speed belt feeder
- Oil bath screenbox bearing lubrication
- Screen walkway and access ladder Hydraulic folding stockpiling conveyors
