PREMIERTRAK 400X JAW CRUSHER PROCESSING CONSTRUCTION & DEMOLTION
![PS_Website-Breaker_1](/images/librariesprovider18/about---page-images/ps_website-breaker_1a6e50f4b-b734-4c0f-933d-027488485eac.png?sfvrsn=485c525_1)
Application Summary

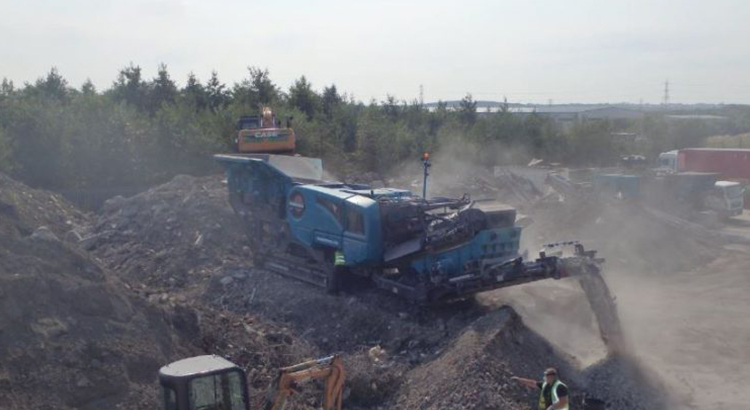

When processing the C&D waste, the customer was keen to mainly produce a Type 1 Sub-base (0-40mm) material but also have the ability to produce a 0-100mm crusher run product. At this site in Northumbria, a Premiertrak 400X crushed construction and demolition waste. Both of these products are being transported away for a road production project in Northumberland.
Setup
Premiertrak 400X
Product 1: 0-100mm product
Running 7 hours per day
Set at 65mm CSS
Production: 180 tonnes per hour
Fuel Consumption: Approx 26 Litres/hour
Tonnes crushed per litre: 6.9 tonnes/litre 0-100mm crusher run
To produce a 0-100mm product the customer set the jaw at a 65mm CSS. He removed the top deck from the post screen allowing all 0-100mm material to flow onto the product conveyor and be stockpiled.
Product 2: 0-40mm Type 1 Sub-base product
Running 7 hours per day
Set at 50mm CSS
Production: 120 tonnes per hour 0-40mm
Production: 30 tonnes per hour +40mm
Fuel Consumption: Approx 29 Litres/hour
Tonnes crushed per litre: 4.1 tonnes/litre of 0-40mm Type 1 Sub-base
When processing the C&D waste, the customer was keen to mainly produce a Type 1 Sub-base (0-40mm) material but also have the ability to produce a 0-100mm crusher run product. At this site in Northumbria, a Premiertrak 400X crushed construction and demolition waste. Both of these products are being transported away for a road production project in Northumberland.
Setup
Premiertrak 400X
Product 1: 0-100mm product
Running 7 hours per day
Set at 65mm CSS
Production: 180 tonnes per hour
Fuel Consumption: Approx 26 Litres/hour
Tonnes crushed per litre: 6.9 tonnes/litre 0-100mm crusher run
To produce a 0-100mm product the customer set the jaw at a 65mm CSS. He removed the top deck from the post screen allowing all 0-100mm material to flow onto the product conveyor and be stockpiled.
Product 2: 0-40mm Type 1 Sub-base product
Running 7 hours per day
Set at 50mm CSS
Production: 120 tonnes per hour 0-40mm
Production: 30 tonnes per hour +40mm
Fuel Consumption: Approx 29 Litres/hour
Tonnes crushed per litre: 4.1 tonnes/litre of 0-40mm Type 1 Sub-base
![premiertrak-400x-construction-demolition-recycling premiertrak-400x-construction-demolition-recycling](/images/librariesprovider18/recycling/premiertrak-400x-construction-demolition-recycling.jpg?sfvrsn=224a78c6_2)
Construction and demolition feed material
![premiertrak-400x-feed-material Construction and demolition feed material for Premiertrak 400X crusher.](/images/librariesprovider18/recycling/premiertrak-400x-feed-material.jpg?sfvrsn=976a467e_0)
0 - 100mm product
![premiertrak-400x-crusher-0-100mm-product 0 to 100mm product from Premiertrak Jaw Crusher](/images/librariesprovider18/recycling/premiertrak-400x-crusher-0-100mm-product.jpg?sfvrsn=e4a2c39f_2)
0 - 40mm sub-base product
![premiertrak-400X-crusher-0-40mm-sub-base 0 to 40mm sub base product from Premiertrak Jaw Crusher](/images/librariesprovider18/recycling/premiertrak-400x-crusher-0-40mm-sub-base.jpg?sfvrsn=3265161b_2)
