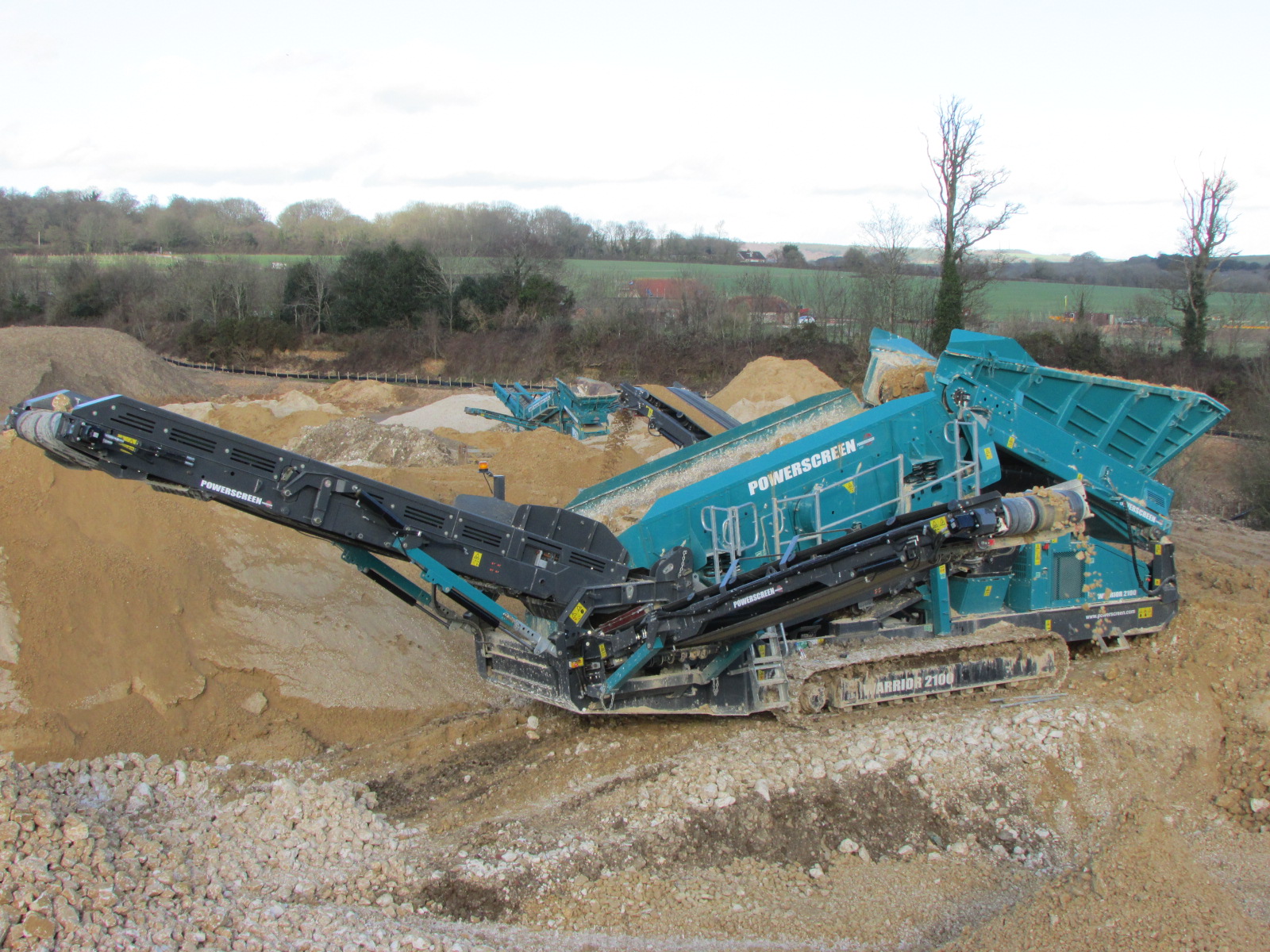

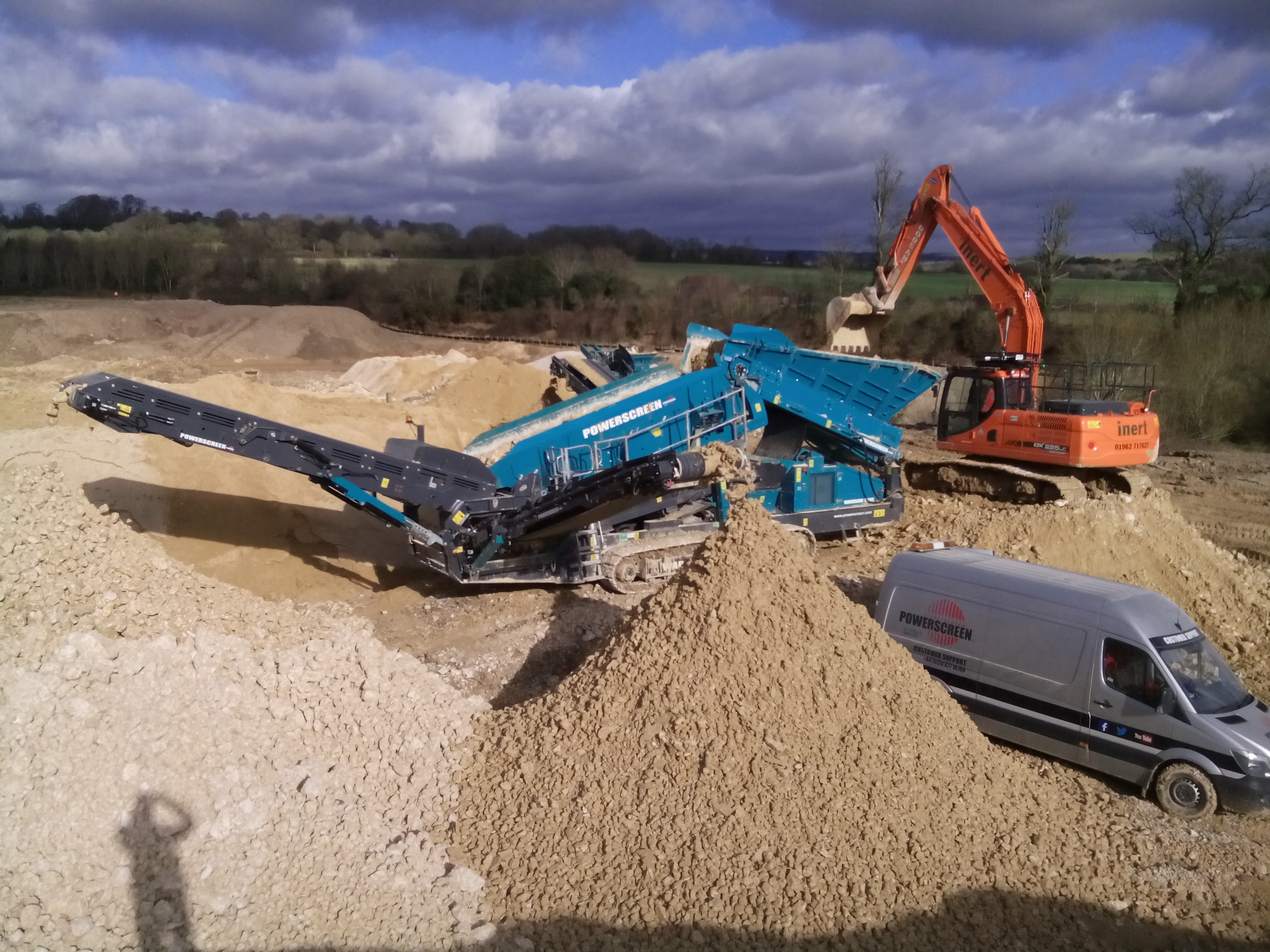

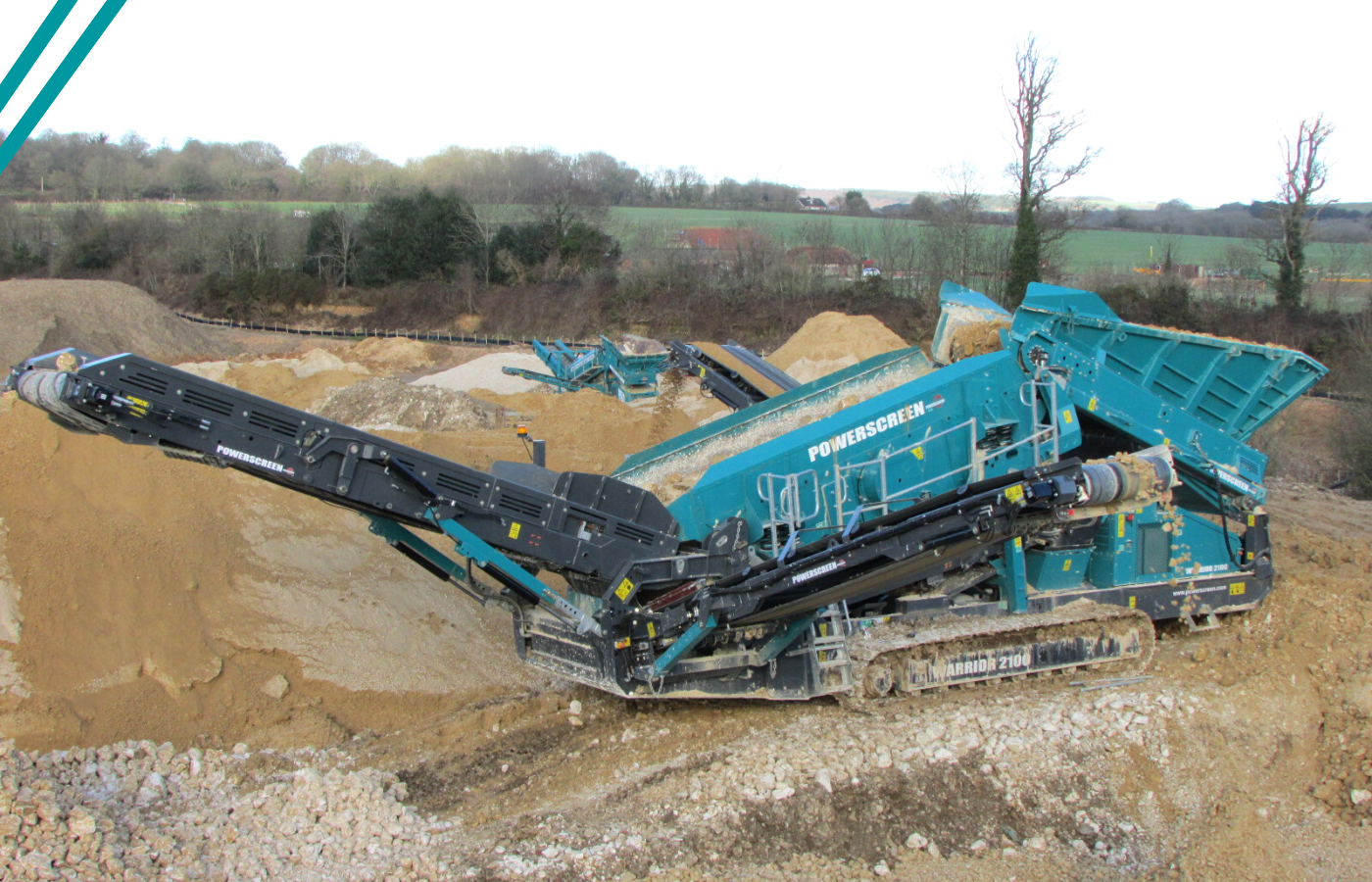

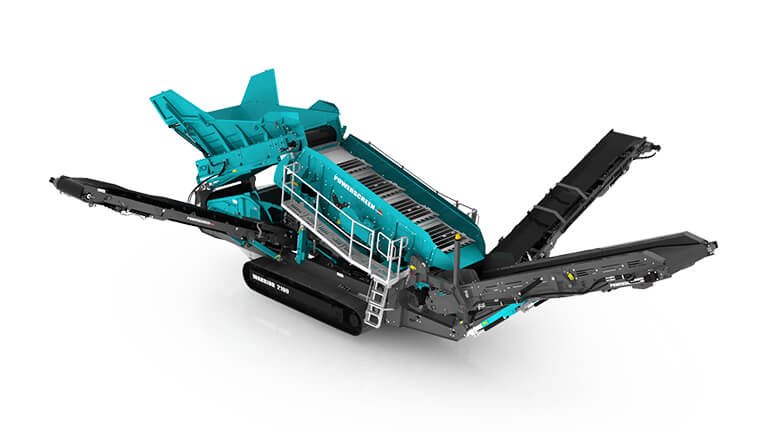

Warrior 2100 Single Shaft

Scalping Screens


The single shaft screen provides the Warrior 2100 with the balance to screen efficiently in less demanding applications when the power of a triple shaft drive or the precision of a Flip-Flow deck is not required. The single shaft screen provides effective screening capabilities with a more conventional approach. Supported on 2 x 130mm bearings the single shaft screen provides an impressive screening stroke and screening angles of up to 18 degrees. The Warrior 2100 range has unrivalled conveyor and stockpiling configurations.

PS_Website-Breaker_Thinner

Additional Specifications:

 Weight - 76,853lbs (Imperial) | 34,860kg (Metrics)

 Screen - 16’ x 5’ 1’’ (Imperial) | 4.88m x 1.56m (Metrics)

Specification Value
Output Potential 625 tph (689 US tph depending on applications) / 625 tph (689 US tph depending on applications)
Transport Dimensions Width: 9'10" Length: 52'5" Height: 11'3" / Width: 3m Length: 15.99m Height: 3.43m
Working Dimensions Width: 44'7" Length: 53'4" Height: 15'4" / Width: 13.6m Length: 16.26m Height: 4.68m
  • Output Potential: up to 700 tph (772 US tph)
  • Heavy duty, 2 deck screen box featuring Triple Shaft technology with adjustable screen timing, amplitude and frequency
  • Rigid one-piece hopper for optimum material flow
  • Low engine running speed to improve fuel consumption
  • Heavy duty, incline belt feeder
  • Jack up screen facility to aid mesh changes
  • Screen walkway and access steps
  • Hydraulic folding conveyors with excellent stockpiling capacity
  • Rapid set-up and shutdown time
  • Two speed tracks
  • Side conveyors can be switched without additional parts to allow different discharge side
  • Collection conveyor raise feature for enhanced serviceability
  • Radio controlled tracking
  • Chassis riser (200mm / 8")
  • Telescopic side conveyors
  • Hydraulically folding hopper extensions
  • High capacity incline apron feeder
  • Quick release screen wedge tensioning
  • Wide range of screen media
  • Dust suppression
  • Auto lubrication system
  • Dual power (additional electric hydraulic drive)
  • 2 or 3 way split configuration
