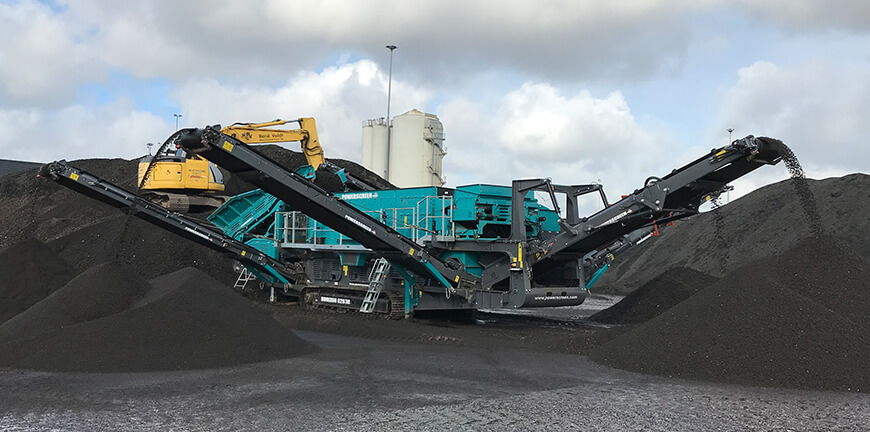

Horizon 6203

Horizontal Screen

6203-horizontal-screen
The Powerscreen® Horizon Range Screens feature horizontal screens ideal for handling high volumes of sticky materials and for the exact, fine sizing demanded in many construction contracts. The Powerscreen® Horizon range is ideally suited to applications such as natural and crushed aggregate, coal, iron ore, recycled concrete and asphalt.
Specification Value
Output Potential 800tph (882 US tph)* / 800tph (882 US tph)*
Transport Dimensions Width: 10'6" Length: 64'3" Height: 11'10" / Width: 3.2m Length: 19.6m Height: 3.6m
Working Dimensions Width: 53'3" Length: 61'10" Height: 15'9" / Width: 16.25m Length: 18.85m Height: 4.8m
Weight 102,955lbs / 46,700kg
Screen 20' x 6'3" / 6.1m x 1.93m
  • Output potential up to 800 tph (882 US tph)
  • High capacity variable speed belt feeder
  • Oil bath screenbox bearing lubrication
  • Screen walkway & access ladder
  • Hydraulic folding stockpiling conveyors
  • Engine protection shutdown system
  • Heavy duty triple shaft screenbox with adjustable stroke, angle & speed
  • Elliptical throw adjustable up to 19mm (3/4")
  • Diesel hydraulic power unit
  • Heavy duty, low ground pressure tracks
  • Direct feed hopper with impact bars & rollers (R version only)
  • Mid-over's product tail conveyor (R version only)
  • Oversize product side conveyor (R version only)
  • Full walkway access on three sides of screen
  • Radio controlled tracking
  • Hybrid (additional electric hydraulic drive) Horizon 6203R only)
  • Roll-in bogie prepared
  • Roll-in bogie equipped
  • Variable speed incline apron feeder
  • Auto lubrication system
  • Wear resistant or mild steel punch plate screens
  • Hinged trap doors offering blending options between decks
  • Oversize product recirculating swivel conveyor, used to transfer return product from recirculating crusher back to feeder (Horizon 6203R only)
